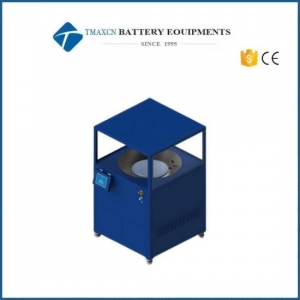

Laboratory 50-3000RPM Acceleration Adjustable Standing Cabinet Type Coating Machine Vacuum Spin Coater

Substrate size

200-450mm （standard）/200-600mm（ optional）

Speed range

50-3000RPM

Acceleration range

10- 1000RPM/S

Motor speed stability

±1RPM

Spin coating uniformity

±1%

Human machine interface

8-inch touch screen

Communication interface

USB (standard)/RS485 (standard)/Bluetooth (standard)

Turn around

Support forward and reverse

Stylus

Stylus BAMBOO resistance pen (standard)

Vacuum Pump

SC-550V

Set data

Unlimited  groups  of  data,  each  group  has   15  speeds  (standard)  or unlimited speeds (optional)

Seconds per period

0- 10000s

Storage data

Unlimited data

Data protection

default with power-down protection

Operating voltage(Spin Coater)

AC100-250V, single phase, 50/60Hz

Operating voltage(Pump)

AC220V(Standard)    AC110V(Optional)

Pumping speed

≥60L/MIN

Max vacuum

-85KPA

Sound Level

≤55db

Spin coater power

5KW

Pump power

350W

Dimensions(Spin Coater)

1000mm(W)X1000mm(D)X1650mm(H)

Weight(Spin Coater)

200KG

Weight(Pump)

9KG

Relative humidity

< 85%

Ambient temperature

0-40℃

Warranty

1 year
