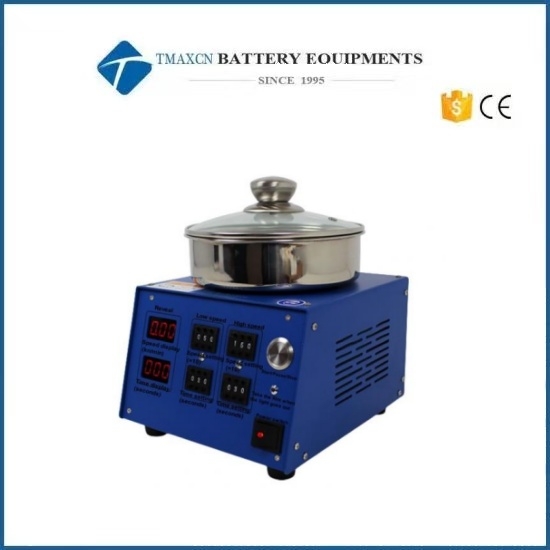

Laboratory Automatic Vacuum Spin Coater with Speed Range of 50-10000rpm
Model Number:
TMAX-4BWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

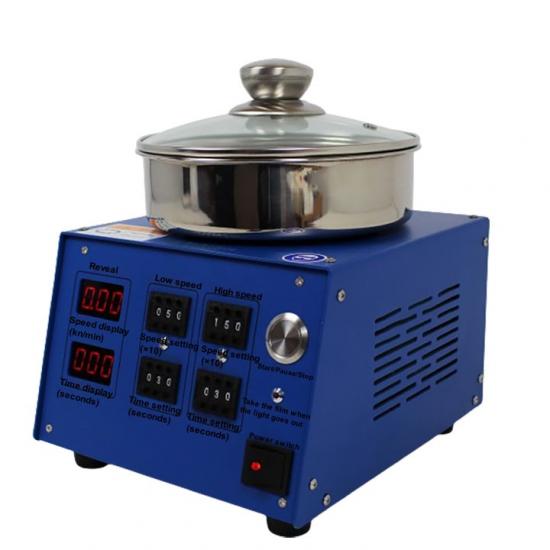

Laboratory Automatic Vacuum Spin Coater with Speed Range of 50-10000rpm
Key Features：
1. Prevent the process chemicals and solvents contact with the motor.
2. Support two user-defined program steps for each recipe.
3. Set speed and time with the keypad, convenient and accurate.
4. Single button control spin start/ pause/ reset and vacuum pump on/off.
Spin Coater Specifications
|
Substrate size |
5mm to 120mm（ 5 inches） |
|
Plate holder type |
Specially designed plate holder to prevent glue from entering |
|
Speed range |
50rpm to 10000rpm |
|
Spin time |
0s to 999s |
|
Dual LED digital display |
1. Speed display 2. Countdown time display. |
|
Control method |
Set speed and time with the keypad |
|
Motor speed stability |
±1RPM |
|
Spin coating uniformity |
±1% |
|
Operating voltage (Spin Coater) |
AC100-250V, single phase, 50/60Hz |
|
Operating voltage(Pump) |
AC220V(Standard) AC110V(Optional) |
|
Pumping speed |
≥60L/MIN |
|
Max vacuum |
-85KPA |
|
Sound Level |
≤55db |
|
Spin coater power |
200W |
|
Pump power |
180W |
|
Dimensions(Spin Coater) |
210mm(W)X220mm(D)X160mm(H) |
|
Dimensions (Pump) |
185 x 100 x 210 mm (L x W x H) |
|
Weight(Spin Coater) |
10KG |
|
Weight(Pump) |
4.5KG |
|
Relative humidity |
< 85% |
|
Ambient temperature |
0-40℃ |
|
Warranty |
1 year |
