DESCRIPTION

Key Features：

1. Support 12-inch silicon wafer spin coating

2. The maximum speed can reach 6000 rpm.

3. Acceleration 10- 1000RPM/S continuously adjustable

4. With Bluetooth communication

5. Support standard 485modbus communication

6. Free PC control software.

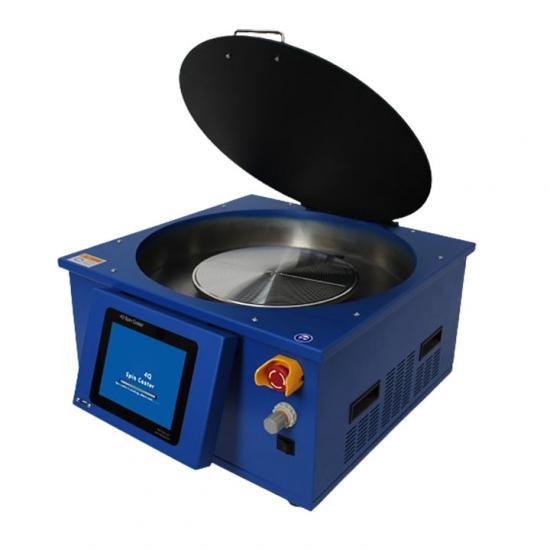

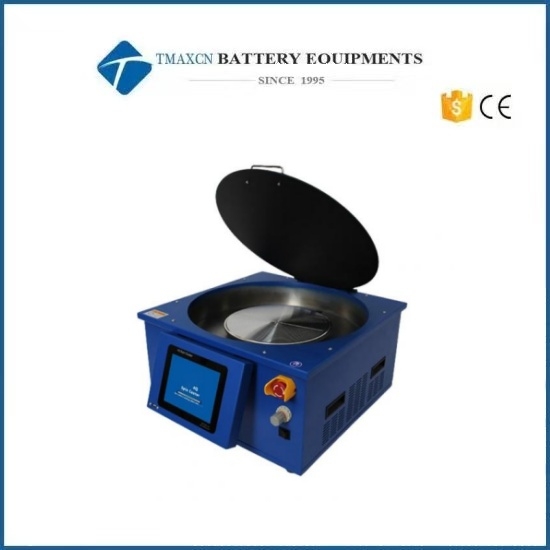

Spin Coater Specifications （KW-4Q Spin Coater）

Substrate size	200-300mm (8 inches to 12 inches)
Speed range	10-6000RPM
Acceleration range	10- 1000RPM/S， Adjustable
Motor speed stability	±1RPM
Spin coating uniformity	±1%
Human machine interface	8-inch touch screen
Communication interface	USB (standard)/RS485 (optional)/Bluetooth (standard)
Turn around	Support forward and reverse
Stylus	Stylus BAMBOO resistance pen (standard)
Vacuum Pump	SC-550V
Set data	Unlimited groups of data, each group has 15 speeds (standard) or unlimited speeds (optional)
Seconds per period	0- 10000s
Storage data	Unlimited data
Data protection	default with power-down protection
Operating voltage(Spin Coater)	AC100-250V, single phase, 50/60Hz
Operating voltage(Pump)	AC220V(Standard) AC110V(Optional)
Pumping speed	≥60L/MIN
Max vacuum	-85KPA
Sound Level	≤55db
Spin coater power	2KW
Pump power	350W
Dimensions(Spin Coater)	550mm(W)X550mm(D)X350mm(H)
Weight(Spin Coater)	50KG
Weight(Pump)	9KG
Relative humidity	< 85%
Ambient temperature	0-40℃
Warranty	1 year
