Lab Programmable Electric Coin Cell Crimper Crimping Machine

Model Number:
TMAX-160S
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

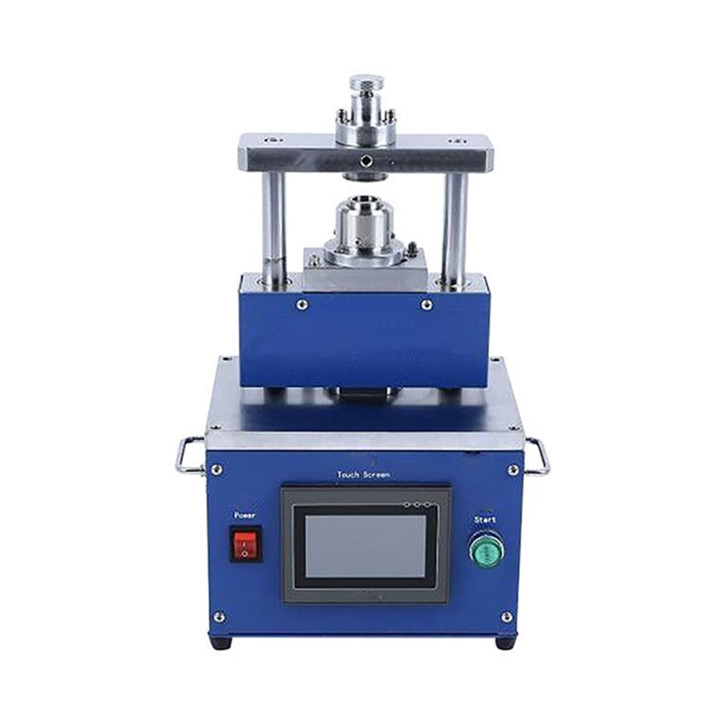

Laboratory Programmable Electric Coin Cell Crimper Crimping Machine

Features

*Touch screen operation, easy to set parameters, high degree of automation;
*The sealing pressure value can be set and displayed.
*If there is no obstacle (skateboard), the glove box can pass through the transition bin directly, with small volume and convenient

operation;

*Adopt electric drive, no vibration and no leakage of battery seal;
*The precise mold design ensures the accuracy and reliability of sealing and forming, and the firm steel structure design ensures stable and safe use;
*Small size, easy to operate, can be placed in glove box for operation;
*It has the advantages of small volume, convenient operation and accurate molding;

Technical Parameter

Power	110 - 240V AC 50/60Hz for universal use

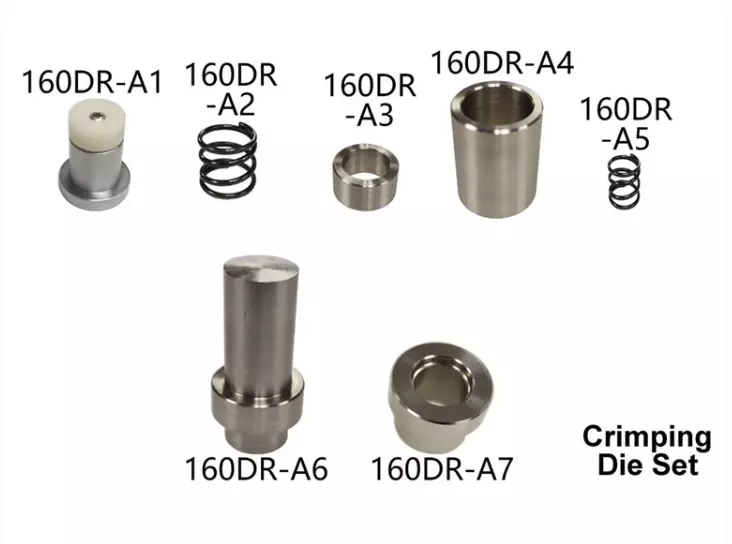

Die Set & Compatibility	Assembling dies for crimping CR2032, CR2025, & CR2016 coin cells (Optional CR2325, CR2450 die sets are available upon request).
Crimping pressure	max. 1000kg adjustable
Control mode	Touch screen
Crimping stroke	20mm
Structure	Heavy Duty Steel Platform
Machine dimensions	L250mmW185mmH450mm
Machine weight	25kg
Warranty	Two years limited warranty with lifetime support
Maintenance Notes & Warnings	1. Electrolytes are highly corrosive materials.The die set must be cleaned with alcohol after each use to avoid corrosion 2. The PTFE die (found at the top die) ejects the cell casing after crimping via spring loaded pressure. Do NOT over tighten the pressure adjustment knob to avoid damaging this PTFE die.

electric coin cell crimper

electric crimper2

coin cell assembly line

battery equipment
