Battery Electrode Coating Machine Film Coater with Vacuum Chuck&Optional Drying Cover

Model Number:
TMAX-TMH
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

Battery Electrode Coating Machine Film Coater with Vacuum Chuck&Optional Drying Cover

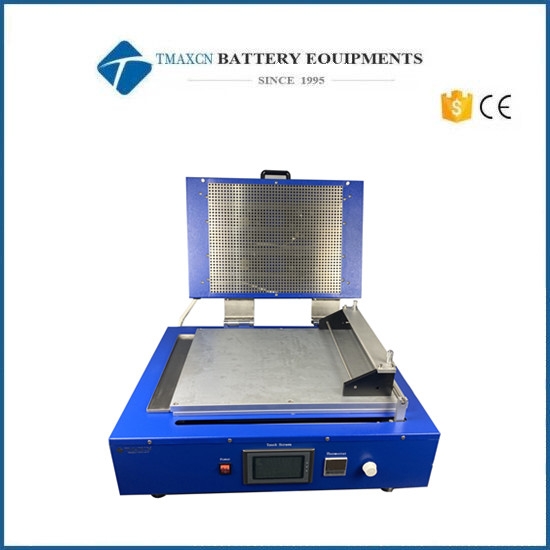

TMAX-TMH is a compact tape casting coater with a heating cover designed to produce films with consistent thickness. It has a unique driving system to produce a smooth coating on various types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place, which is particularly useful when making thin film coatings. This product is widely used in various high temperature film research, such as ceramic film, crystal film, battery material film, special nano film.

Features

*Large area uniform heating is adopted to ensure high precision and uniform temperature in the cavity;
*Plate coating, motor driven scraper/film applicator coating, coating speed is stable and adjustable;
*The film coating speed is adjustable, the vacuum aluminum plate can quickly fix or remove copper foil, aluminum foil, etc., and the vacuum pump is included for your immediate use;
*One film applicator is included, high precision and coating thickness adjustable;
*It can be used in glove box, easy to operate, small size and space saving;

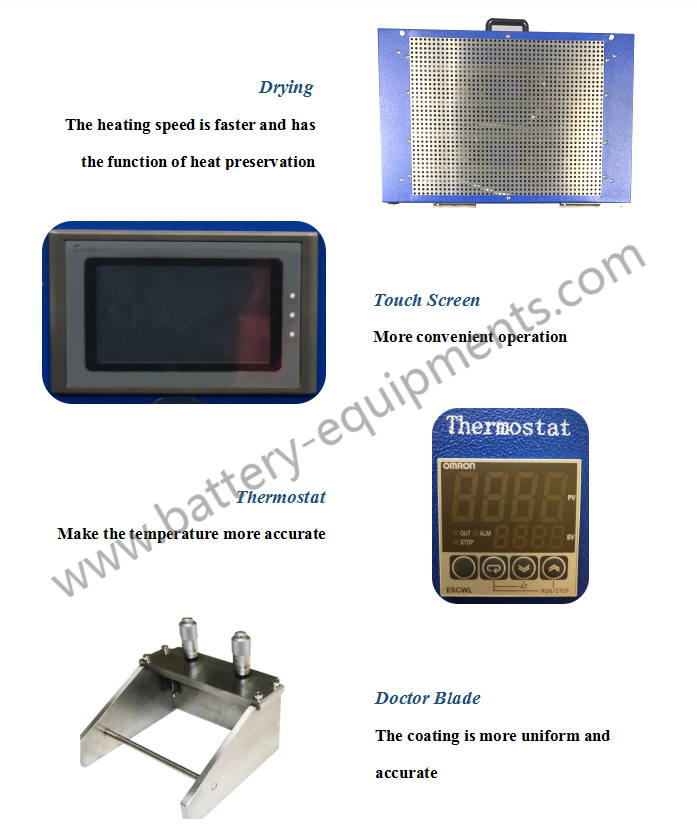

*Upgraded PLC touch screen control, easy to set parameters.

Specifications

Model	TMH100-250	150-250	250-300	250-350	250-500	250-800
Effective coating area(mm, size can be customized)	100 x 250	150 x 250	250 x 300	250 x 350	250 x 500	250 x 800
Stroke length (mm, length adjustable)	10 - 250	10 - 250	10 - 300	10 - 350	10 - 550	10 - 800
Vacuum chuck dimensions (mm, W*L, , size can be customized)	100 x 365	150 x 365	250 x 400	250 x 450	250 x 650	250 x 900
Power supply	110VAC or 220VAC
Coating speed	0 - 120 mm/sec variable; accuracy: 10mm/sec (The coating speed range can be customized)

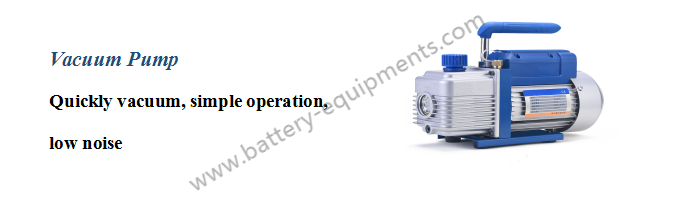

Vacuum pump (Optional)	One oil free vacuum pump
Film applicator	One standard film applicator is included as below: Analog film applicator with fix coating width 0~10mm gap/coating thickness adjustable *Coating accuracy: ±10μm
Film applicator	Optional parts: Digital micrometer Adjustable width Different gap/coating thickness
Heating function (selectable)	Platen heating(standard) 1. Heating on the vacuum chuck/coating plate 2. Built in digital temperature controller with accuracy of +/-1°C 3. Max. Heating Temp: 120°C 4. You can choose to have the cover or not, with cover, it will faster the drying speed as it will keep the
Heating function (selectable)	Top cover heating 1. Heater pre-installed on the top cover 2. Built in digital temperature controller with accuracy of +/-1°C 3. Suspension support helps open cover easily and safely 4. Max. Heating Temp: 200°C
Surface finish	▽10
Surface roughness	Ra0.1
Vacuum board material	5052 Aluminum alloy
Compliance	CE Certificate
Warranty	One year limited warranty with lifetime support
