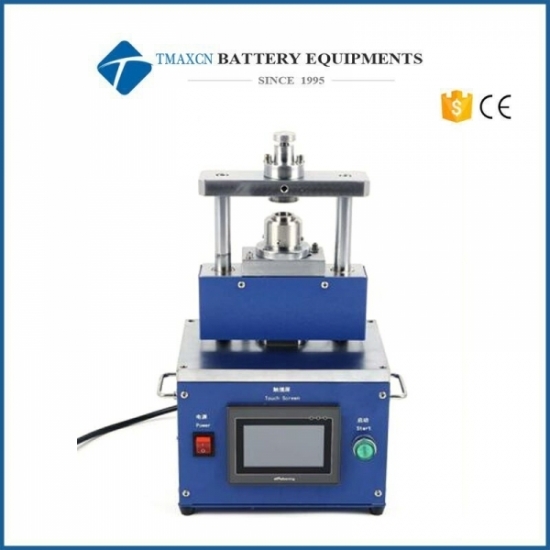

Lab Electric Button Battery Crimper With Touch Screen
Model Number:
TMAX-160SDimension(L*W*H):
250mm(L) x 150mm(W) x 450mm(H)Net Weight:
32 kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

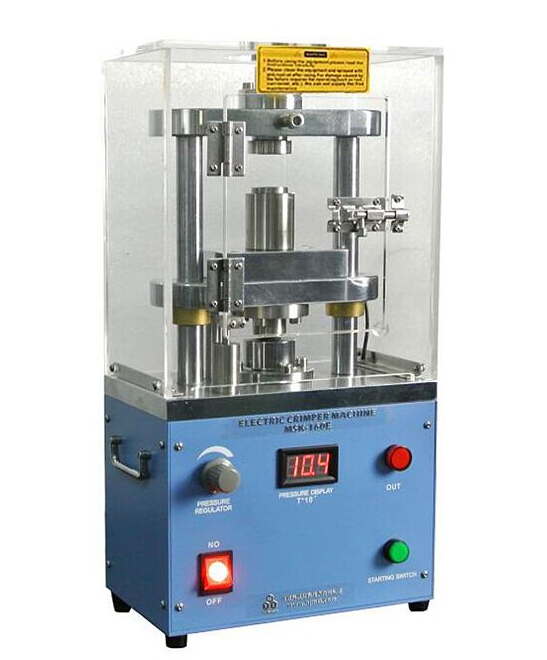

Lab Electric Button Battery Crimper With Touch Screen
Features
It's used for various of button cell electric crimping .
Standard configuration can be used for disassembling CR20 series of coin cell. The machine has the advantages like small dimensions, easy operation, stable crimping , etc. Equipped with different moulds
can also be used for other works like powder pressing ,button cell disassembing etc .

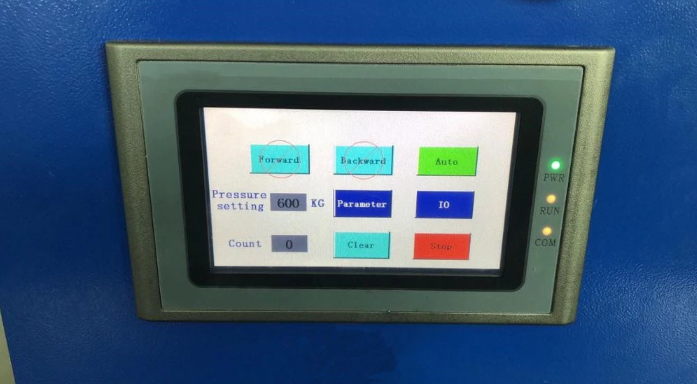

1.Electric operation with touch screen .
2.High precision moudel design to ensure stabe sealing
3.Simple to change crimping die .
4.Small size can be put into glovebox through φ360 antechamber.
We also supply quality button cell crimper for you! Your satisfaction is our nice purpose!
Technical Parameter
|
Power |
110 - 240V AC 50/60Hz for universal use
24V DC motor with reducing gear, 20W
|
|
Die Set & Compatibility |
Assembling dies for crimping CR2032, CR2025, & CR2016 coin cells (Optional CR2325, CR2450 die sets are available upon request). |
|
Pressure |
1. The pressure applied to seal the cell case is pre-set to a constant pressure at about 800 kg before shipping.
2. Pressure adjustment knob at the top can be used to adjust the pressure applied to the negative cap of the cell to prevent case deformation. |
|
Structure |
Heavy Duty Steel Platform |
|
Protection Shield |

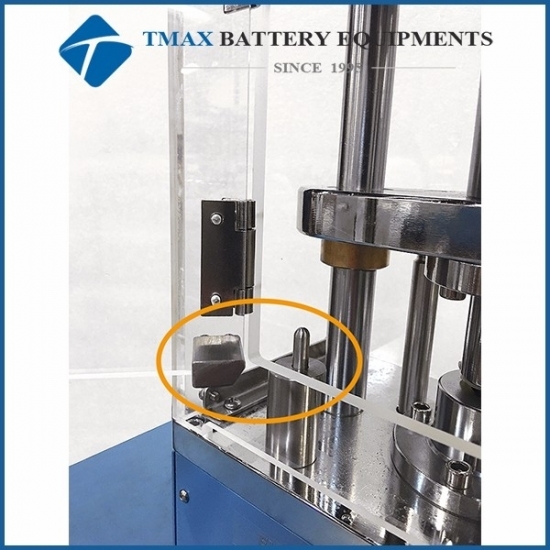

Protection shield / enclosure (plexiglass) with safety interlock is installed |
|
Product Dimensions |
250mm(L) x 150mm(W) x 450mm(H) |
|
Compliance |
CE |
|
Warranty |
Two years limited warranty with lifetime support |
|
Maintenance Notes & Warnings |
1. Electrolytes are highly corrosive materials.The die set must be cleaned with alcohol after each use to avoid corrosion
2. The PTFE die (found at the top die) ejects the cell casing after
crimping via spring loaded pressure. Do NOT over tighten the pressure adjustment knob to avoid damaging this PTFE die.
3.To set the proper pressure on the die, loosen the knob all the way
until the spring compression is no longer stressed. Then start tightening the knob and stop turning it once the spring compression is felt.
4.This will prevent the PTFE die from becoming deformed by being
subjected to excessive pressure. |
|
Net Weight |
32 kg |
|
Shipping Weight |
46 kg |
