Specification

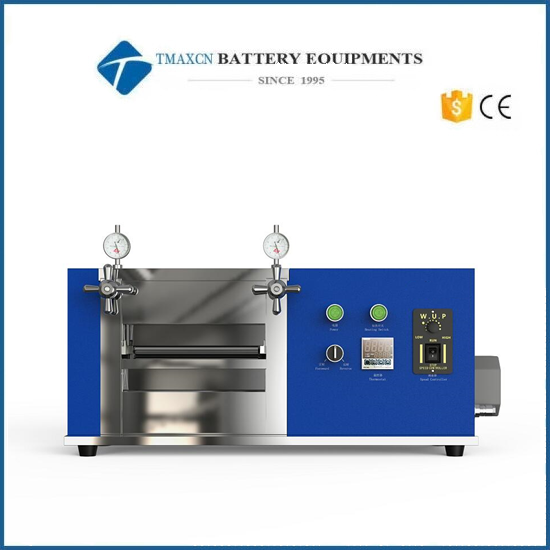

1 TMAX-JS Hot roller press machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating.
2 The hot calender machine has 100mm width steel rollers. Such a roller can be heated up to 130°C.

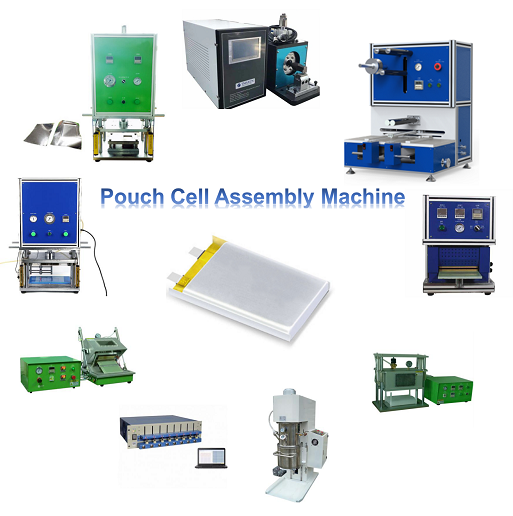

You can search more details in pouch cell lab set up.
|
Model |
Hot Roller Press Machine TMAX-JS |
|
Source voltage |
AC 110V-220V Customized, 50HZ |
|
Power |
800W |
|
Warranty |
Two Years limited warranty with lifetime support |
|
Roller temperature |
RT-130℃, adjustable and digital display |
|
Roller diameter |
2 - Φ96mm |
|
Roller surface hardness |
HRC62 |
|
Roller finish degree |
>0.8 |
|
Rolling press thickness |
0-2mm, Adjustable |
|
Working speed |
0-40mm/s |
|
Rolling press width |
Max 100mm, can be customized |
|
Dimension(L*W*H) |
510*230*330mm |
|
Weight |
About 60kg |
-
