Laboratory Semi-auto Pouch Cell Die Cutter for Battery Electrode Sheet Cutting

2021-03-22

Specification

1 TMAX-MQ300 semi-automatic electrode die cutter is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery. It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.

2 This Semi Automatic Die Cutting machine adopts Safety Curtain built in the front of the machine and double start button ensures operation safety when electrode sheets are fed from the front.

3 High speed, high accuracy,long lifetime to make cutted electrode without burr, to get a good consistency.

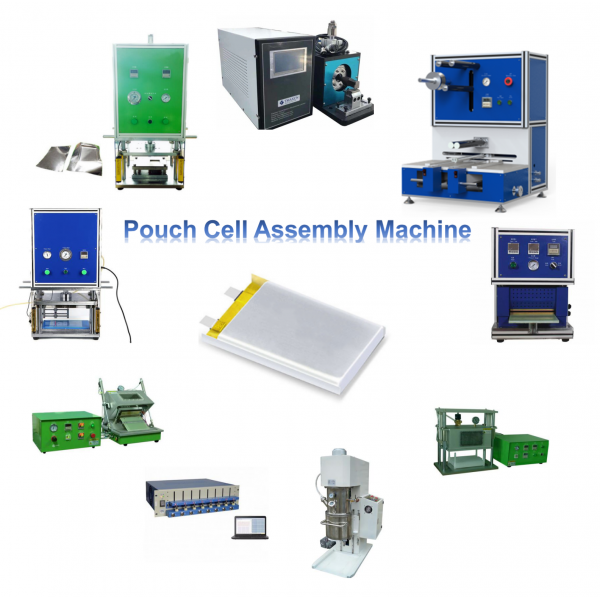

4 You can search more pouch cell assembly machine on our website.

Model	Battery Electrode Die Cutter Machine TMAX-MQ300
Work voltage	AC110V/220V, 50/60HZ
Power	150W
Warranty	One year limited warranty with lifetime support
Max cutter die size	200mm(L) * 300mm(W)
Die Set Dimensions	One set of standard electrode die is included.within the dimensions:400mm(L) *300mm(W) Customized size die is available upon request
Safety Protection	Built in Safety Curtain to protect against hand injuires during electrode feeding Double start press button
Cutting Accuracy	±0.1mm
Air Cylinder	3 tons Max. pressure
Tensile Cylinder	0.15 tons pressure
Cutting stroke	250mm
Feeding	Manually
Production Yield	800 - 2000 pieces of electrodes per hour
Air Pressure	0.5-0.8Mpa
Dimension (LWH)	580455 900mm
Net Weight	120kg (265 lbs)
Shipping Dimensions	4775109cm
