3ton~60ton Lab Small Manual Hydraulic Press Machine for Sample Preparation
Model Number:
TMAX-SYPCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

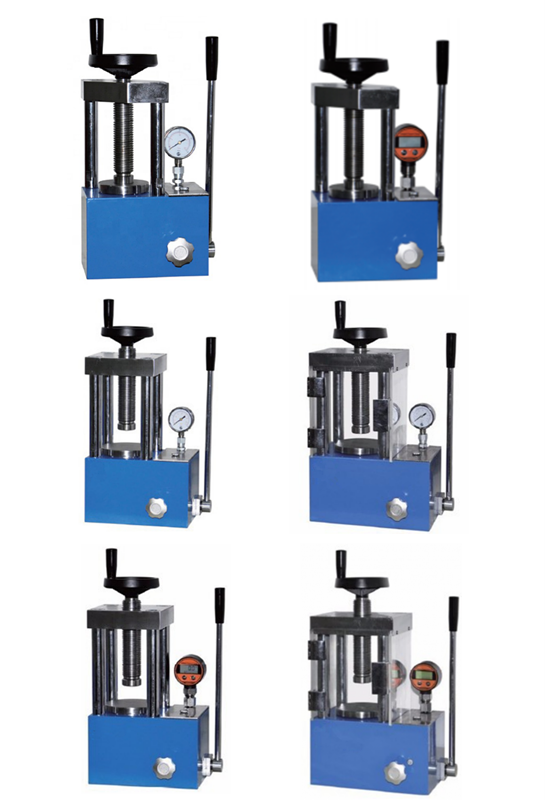

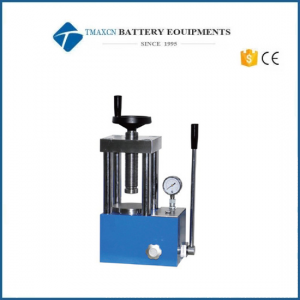

3ton~60ton Lab Small Manual Hydraulic Press Machine for Sample Preparation
Our Laboratory Hydraulic Pressing Machine has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on. In addition, this product can also be used with Fourier infrared spectrometer. Fluorescence spectrometer supporting sample preparation, can replace similar imported products.
It can also be used with Ca-Fe analyzer, infrared spectroscopy (IR) analyzer and X-ray fluorescence (XRF) analyzer to analyze the pressed samples.
Features
1.Small size, light weight,No oil linkage, easy to carry.
2.Digital display pressure gauge 0.1MPa,Pressure control is more accurate.
3.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.
4.Special plunger, special custom sealed structure, good sealing effect, no oil leakage
5.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.
6.One main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.
7.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.
8.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage.
Technical parameters
Model |
TMAX-SYP-3T |
TMAX-SYP-5T |
TMAX-SYP-12T |
TMAXSYP-15TB |
TMAX-SYP-15TA |
Pressure range |
0-3T (0-28.8MPa) |
0-5T (0-31.4MPa) |
0-12T(0-30MPa) |
0-15T(0-30MPa) |
|
Piston diameter |
φ35mm |
φ45mm |
φ70mm |
φ80mm |
|
Analog pressure gauge |
Analog pressure gauge is included in the standard package, dual scale display: Mpa and Ton |
||||
Digital pressure gauge (optional) |
Digital display 0.00-40.00mpa, accuracy 0.01Mpa (only with "s" type) |
||||
Maximum piston stroke |
30mm |
||||
Pressurization mode |
Manual pressurization / manual slow pressurization |
||||
Pressure stability |
≤1MPa/10min |
||||
Overall structure |
Patented technology of integrated structure, no sealing connection of equipment, reducing oil leakage point |
||||
Diameter of worktable |
φ80mm |
φ90mm |
|||
Number of columns |
2 columns |
2columns |
4 columns |
||
Working space (W×H) |
96×130mm |
96×130mm) |
140×150mm |
80×130mm |
|
Machine dimensions (L×W×H) |
225×155×380mm |
225×155×380mm |
245×175×390mm |
245×175×390mm |
|
Machine weight |
28kg |
28kg |
38kg |
40kg |
Model |
TMAX-SYP-24T |
TMAX-SYP-30T |
TMAX-SYP-40T |
TMAX-SYP-60T |
Pressure range |
0-24T(0-34MPa) |
0-30T(0-31.5MPa) |
0-40T(0-30MPa) |
0-60T(0-34MPa) |
Piston diameter |
φ95mm |
φ110mm |
φ130mm |
φ150mm |
Analog pressure gauge |
Analog pressure gauge is included in the standard package, dual scale display: Mpa and Ton |
|||
Digital pressure gauge (optional) |
Digital display 0.00-40.00mpa, accuracy 0.01Mpa (only with "s" type) |
|||
Maximum piston stroke |
30mm |
40mm |
50mm |
50mm |
Pressurization mode |
Manual pressurization / manual slow pressurization |
|||
Pressure stability |
≤1MPa/10min |
|||
Overall structure |
Patented technology of integrated structure, no sealing connection of equipment, reducing oil leakage point |
|||
Diameter of worktable |
φ105mm |
φ120mm |
φ140 |
φ160mm |
Number of columns |
4 columns |
|||
Working space (W×H) |
80×150mm |
92×160mm |
115×185mm |
185×250mm |
Machine dimensions (L×W×H) |
245×175×415mm |
275×195×420mm |
295×215×500mm |
405×240×565mm |
Machine weight |
42kg |
56kg |
75kg |
120kg |
