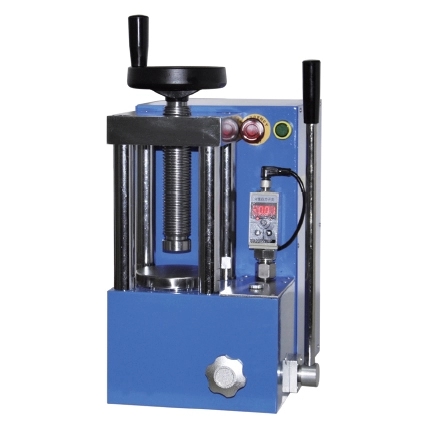

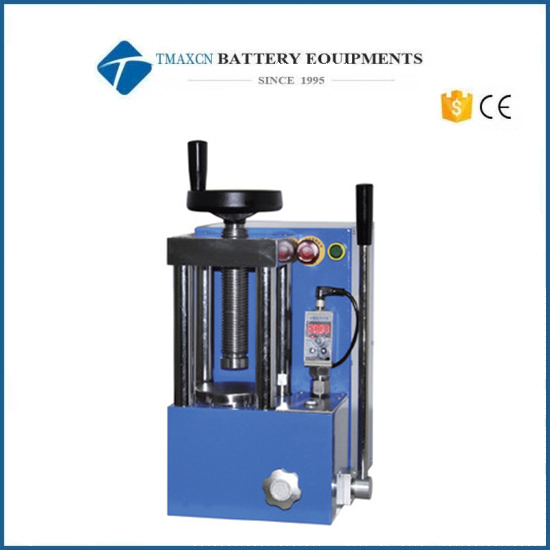

20ton-60ton Laboratory Electric Hydraulic Press Machine For Powder Pellet Press
Model Number:
TMAX-DYPCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
20ton-60ton Laboratory Electric Hydraulic Press Machine For Powder Pellet Press
Features
Electric powder press is widely used in the fields of new materials, superconductivity, powder ceramics, new power supply, batteries, building materials, metallurgical powder, etc. it can be used for calcium iron analysis, infrared spectroscopy (IR), X-ray fluorescence (XRF) analysis instrument is used together; the machine is compact in structure, light in weight, fast in pressure rise, simple in operation, safe and convenient; special tablet pressing die is selected, which can be used to press potassium bromide (KBr), sodium chloride (NaCl), cement and other powder materials into various test pieces, columns, heteromorphic bodies or combinations for analysis and research; at the same time, the machine is also suitable for other workers who need corresponding pressure For occasions, as a press, testing the pressure resistance of various objects and so on.
Technical parameters
|
Model |
TMAX-DYP-20T |
TMAX-DYP-30T |
TMAX-DYP-40T |
TMAX-DYP-60T |
|
Pressure range |
0-20T(0-28MPa) |
0-30T(0-31.5MPa) |
0-40T(0-30MPa) |
0-60T(0-34MPa) |
|
Piston diameter (Chrome plated cylinder) |
φ95mm |
φ110mm |
φ130mm |
φ150mm |
|
Maximum piston stroke |
30mm |
40mm |
50mm |
50mm |
|

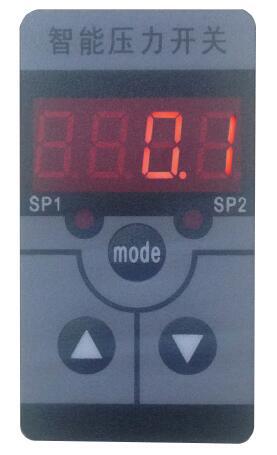

Pressure gauge |
Digital display, range 0.0-40.0mpa, accuracy 0.1MPa |
|||
|
Pressure stability |
≤1MPa/10min |
|||
|
Pressurization mode |
Electric / manual pressurization |
|||
|
Pressure compensation mode |
Automatic pressure supplement / manual pressure supplement / manual slow pressure increase |
|||
|
Overall structure |
Integrated patented technology, equipment without sealing connection, reduce oil leakage point |
|||
|
Device power supply |
220V(50Hz/60Hz) |
|||
|
Diameter of worktable |
φ105mm |
φ120mm |
φ140mm |
Φ160mm |
|
working space |
80×150mm |
92×160mm |
115×185mm |
185×250mm |
|
Outline size |
245×415×415mm |
275×430×420mm |
295×450×500mm |
405×470×565mm |
|
Instrument weight |
60kg |
70kg |
90kg |
140kg |
|
Remarks |

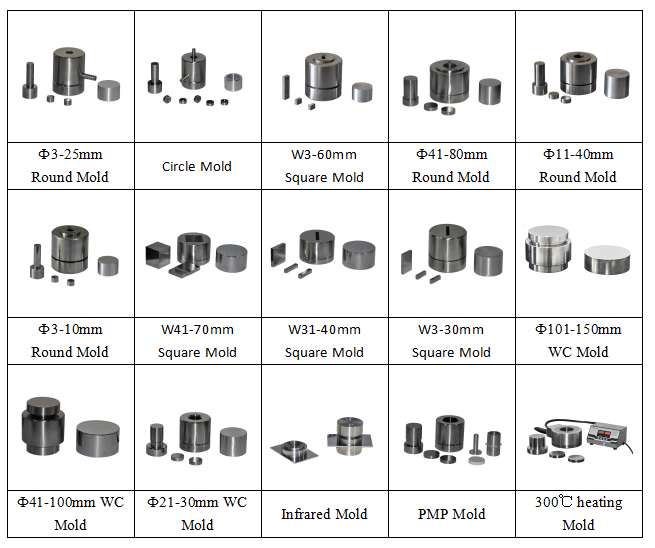

If you need extra mould, please contact the sales manager for further quote. The work space can be customized to increase the height |
|||
|
Pressure Conversion Table |
|
|
Actual pressure |
System pressure |
|
1 T |
0.56 MPa |
|
3 T |
1.70 MPa |
|
5 T |
2.80 MPa |
|
10 T |
5.60 MPa |
|
20 T |
11.3 MPa |
|
30 T |
17.0 MPa |
|
40 T |
22.6 MPa |
|
50 T |
28.3 MPa |
|
60 T |
34.0 MPa |
|
Pressure calculation formula |
Area of oil cylinder / area of mould x reading of pressure gauge = actual pressure of mould |
|
NOTE |
Generally, the system pressure should not exceed 31.4mpa, otherwise it will affect the service life of the equipment and cause oil leakage |
