100T Electric Hydraulic Press Machine With Large Pressure For Samples Forming
Model Number:
TMAX-100TFZCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

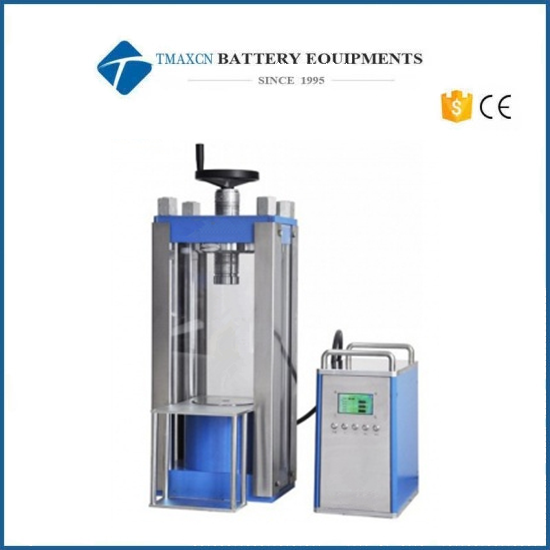

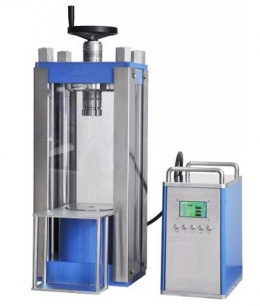

100T Electric Hydraulic Press Machine With Large Pressure For Samples Forming
TMAX-TZ series electric hydraulic press is mainly used for samples that need large pressure to form, such as ceramic, metal powder and other large-scale mold. The hydraulic press adopts the split structure, full-automatic program operation: program pressurization / slow pressurization - pressure maintaining - pressure supplement - timing pressure relief, etc. It adopts the liquid crystal display screen, which makes the operation more intuitive and simple. It is equipped with the organic glass protective cover as standard, which makes the operation and production safer and more secure, the pressure stable, and the operation convenient.
Related products:
Advantages
1. New type fully automatic, program pressurization, program pressure maintaining, automatic pressure relief, intuitive operation, beautiful appearance, etc., suitable for high-end laboratory use.
2. The automatic conversion display of mould pressure does not need manual conversion, so as to avoid the damage of mould due to operation error, and the operation is more humanized.
3. A limit protection switch is set to automatically relieve the pressure when the oil cylinder rises to the limit height, so as to avoid the damage of the machine and oil leakage caused by the over position of the oil cylinder.

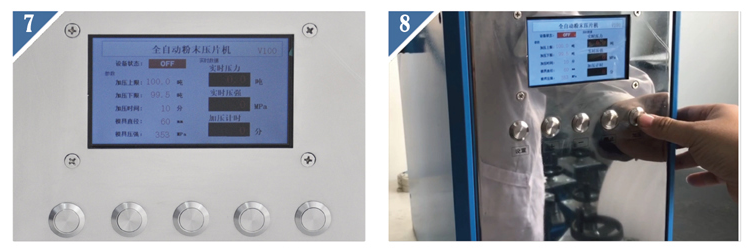

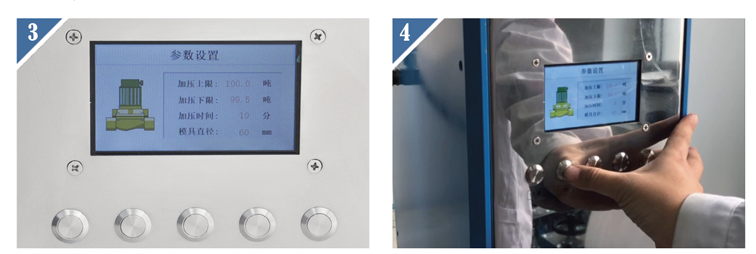

4. Large screen liquid crystal display, more intuitive operation, clearer display, convenient for user setting and operation.
Related products:
Technical Parameter
Model |
TMAX-100TFZ |
TMAX-150TFZ |
Pressure range |
1-100T/0.1t |
1-150T/0.1t |
Piston diameter |
Φ200mm Chrome plated cylinder |
Φ250mm Chrome plated cylinder |
Maximum cylinder stroke |
50mm |
|
Pressurization mode |
Electric pressurization |
|
Pressurization process |
Intelligent full-automatic, program pressurization / slow pressurization - program pressure maintaining - program pressure supplement - timed pressure relief |
|
Display |
4.3" LCD |
|
Holding time |
0-999.59(minute.second) |
|
Pressure conversion |
Program automatic conversion of die sample pressure (MPA) |
|
Equipment protection |
Steel plate protection, equipped with plexiglass protective door |
|
Equipment structure |
Split structure |
|
Device power supply |
220V(50Hz/60Hz) |
|
working space |
260×400mm(W/H) |
285×460mm(W/H) |
Outline size |
850×500×1100mm |
950×600×1100mm |
Equipment weight |
520kg |
620kg |
