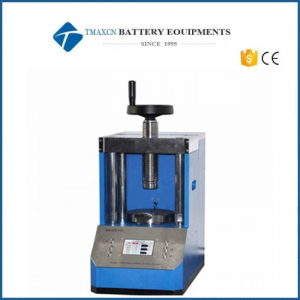

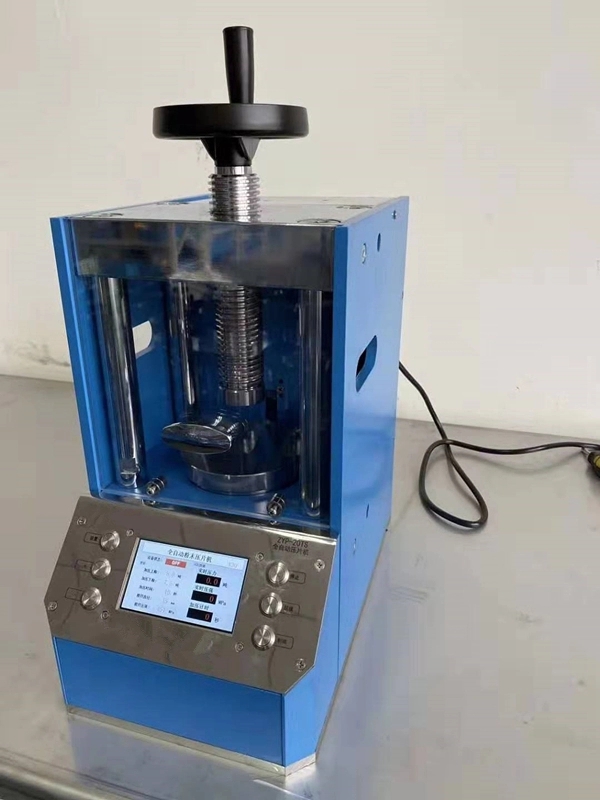

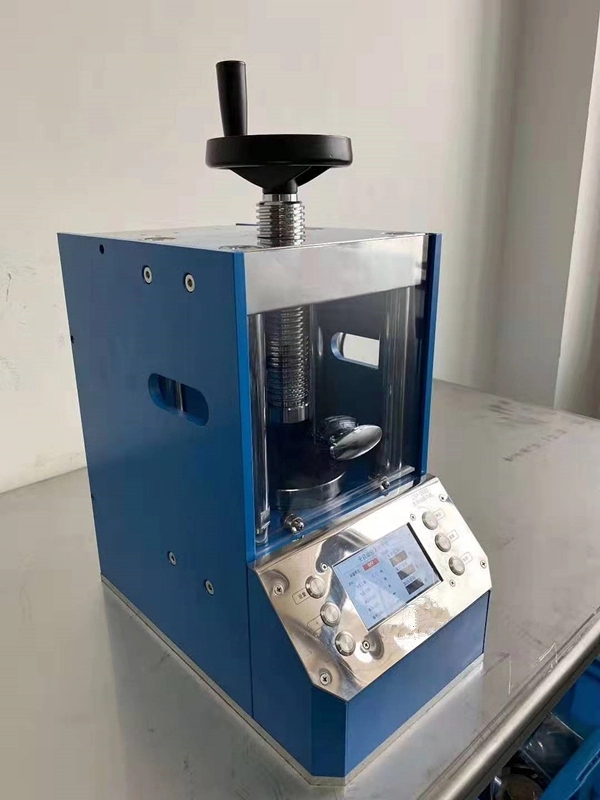

20ton-100ton Lab Automatic Hydraulic Pellet Press Machine with Programmable Controller
Model Number:
TMAX-ZYPCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
20ton-100ton Lab Automatic Hydraulic Pellet Press Machine with Programmable Controller
Features
Based on the existing manual and electric hydraulic press and the proposal of our college customers, our company has designed and developed a new type of automatic powder hydraulic press to meet the requirements of the times. At present, the automatic hydraulic press has been put into use in the market with appropriate mold accessories, which can meet the requirements of customers in powder pressure forming. It is widely used It is applied to the analysis and research of new materials such as X-ray fluorescence, calcium iron analysis, superconductivity, building materials, powder ceramics, cement, etc. it is an alternative product of the existing manual and electric tablet press, which is deeply loved by users.
Advantages
1. New type full-automatic, program pressure, program pressure keeping, automatic pressure relief, intuitive operation, beautiful shape, etc., suitable for laboratory use.
2. Die pressure automatic conversion display, without manual conversion, so as to avoid die damage due to operational errors, the operation is more user-friendly.
3. It is equipped with limit protection switch. When the oil cylinder rises to the limit height, the pressure will be released automatically, so as to avoid the damage of the machine and oil leakage caused by the over position of the oil cylinder.
4. Large screen LCD, more intuitive operation, clearer display, convenient for user to set up and operate.
5. Integrated structure patent technology
Technical Parameter
Model |
ZYP-20T |
ZYP-30T |
ZYP-40T |
ZYP-60T |
ZYP-100T |
Pressure range |
0-20.0T |
0-30.0T |
0-40.0T |
0-60.0T |
0-100.0T |
cylinder stroke |
40mm |
40mm |
50mm |
50mm |
50mm |
Display mode |
4.3-inch LCD |
||||
Pressurization process |
Intelligent full-automatic, program slow pressure / pressure supplement - automatic pressure maintaining - timed pressure relief |
||||
Holding time |
0-999 seconds |
||||
Pressure conversion |
Automatic conversion and display of die bearing pressure (MPA) program |
||||
Cylinder protection |
When the oil cylinder rises to the limit height, the pressure will be released automatically, and the oil cylinder will be protected to prevent over position |
||||
Equipment protection |
Steel plate protection, equipped with plexiglass protective door |
||||
Device power supply |
220V(50Hz/60Hz) |
||||
working space |
175×160mm |
175×160mm |
175×180mm |
185×220mm |
185×250mm |
Outline size |
280×460×530mm |
280×460×530mm |
280×460×550mm |
300×520×580mm |
330×580×620mm |
Instrument weight |
140kg |
140kg |
150kg |
180kg |
240k |
