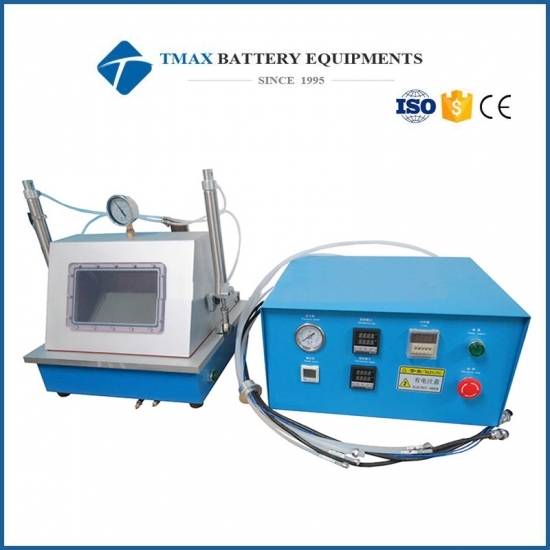

200 mm Width Lab Vacuum Crimper Sealer Crimping Machine for Pouch Cell Sealing

Model Number:
TMAX-JK-200
Dimension(L*W*H):
200-400mm Width
Net Weight:
60KG
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

200 mm Width Lab Vacuum Crimper Sealer Crimping Machine for Pouch Cell Sealing

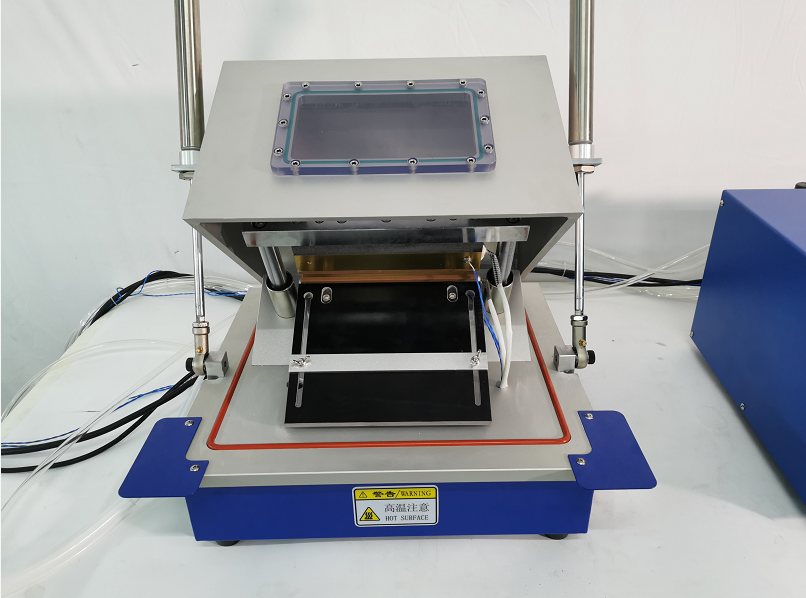

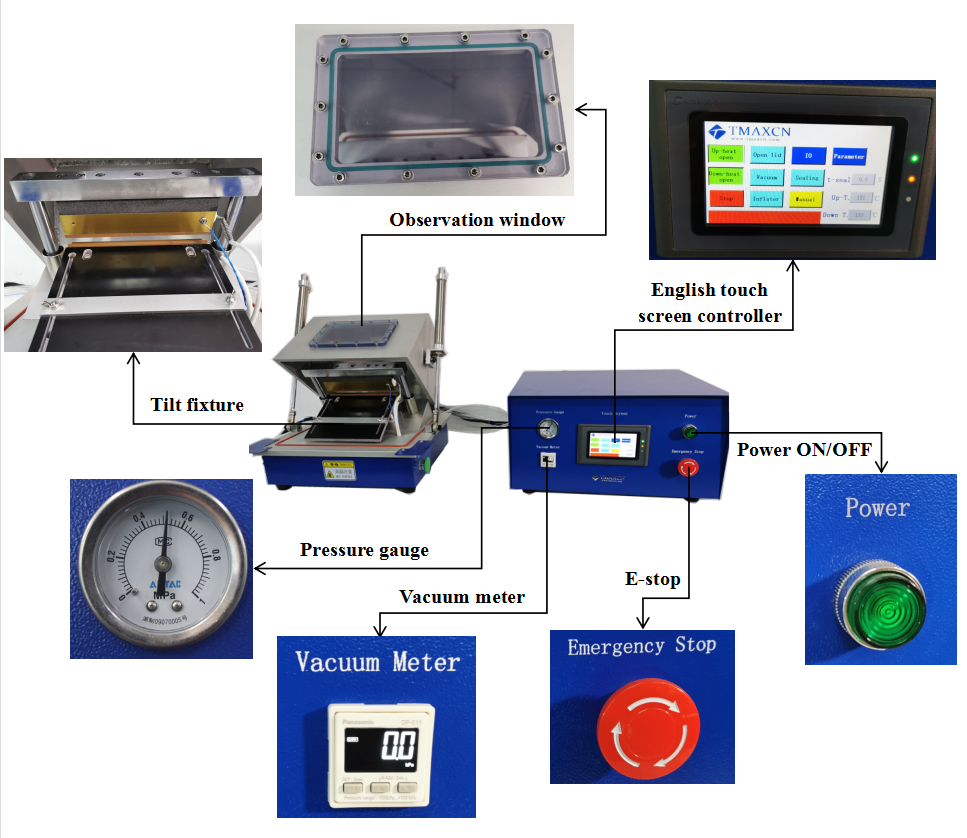

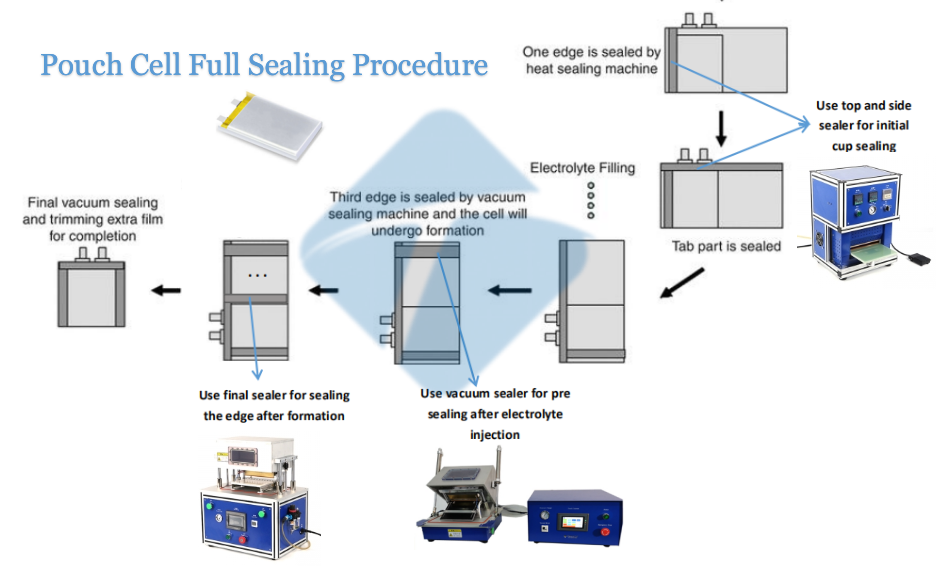

vacuum sealing machine is mainly used for sealing aluminum-laminated case in glove box after injection electrolyte into pouch Li-ion cell or after formation for final seal (polymer Li-Ion cell). It through the precise control of the main vacuum pumping gas tank and pneumatic heat sealing component , to seal the aluminum film pouch case of polymer battery automatically.

Model	TMAX-JK-200 vacuum sealing machine
Source voltage	AC 220V/110V, 50/60HZ
Power	600W
Warranty	One year limited warranty with lifetime support

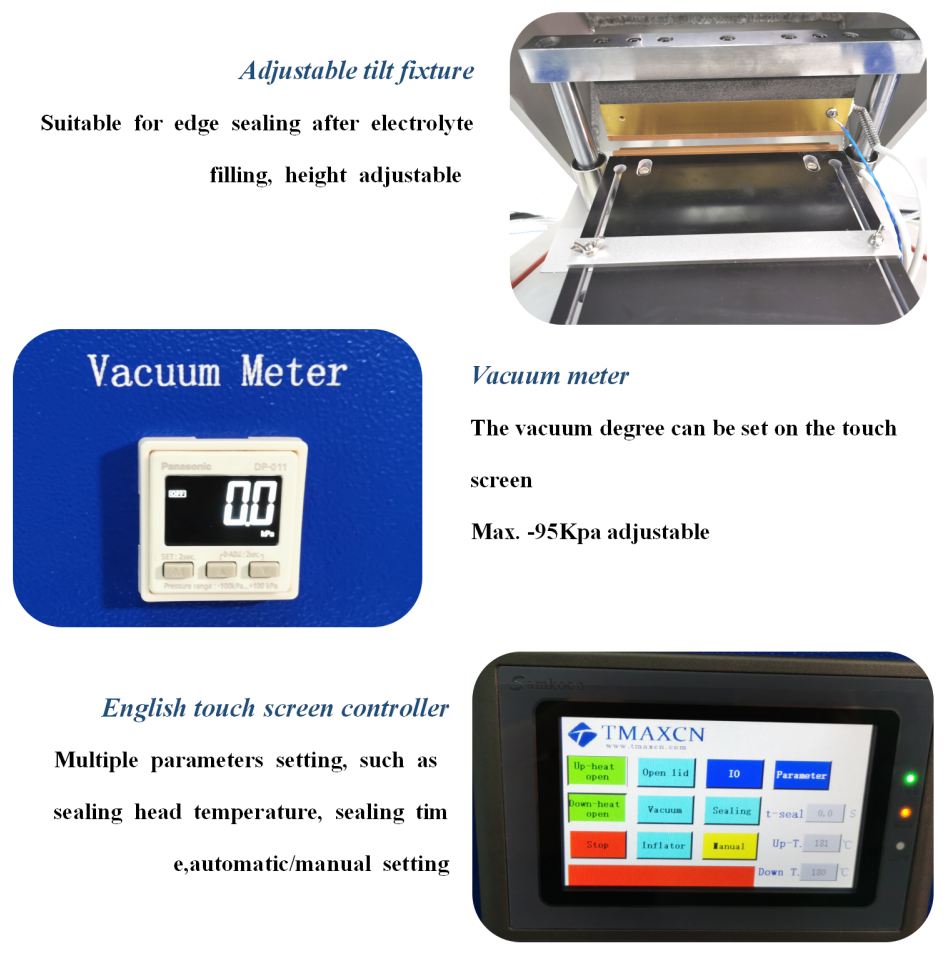

Advantages	1 Sealing Head adopts copper material, good heat transfer effect, 2 With adjust plate, Can apply to different specifications battery, and the adjusting easily
Vacuum degree	-95Kpa - 0
Sealing head TEM	RT-250℃, adjustable
TEM accuracy	±1.5℃
Sealing pressure	0-7Kg/cm2, adjustable
Sealing time	0-99s, adjustable
Sealing Blade	Hard type (without rubber, only for Al case sealing,not suitable for sealing case with tab in between)
Sealing width	5mm, customized
Sealing head length	200mm customized
Suitable battery size (Inner size)	18012010mm
Air source	0.5-0.7MPa (72.5-102psi)
Dimension(LWH)	Sealing Unit with Chamber Closed: 470430480mm Sealing Unit with Chamber opened: 470430559mm Control Unit: 420320220mm
Weight	About 50kg
