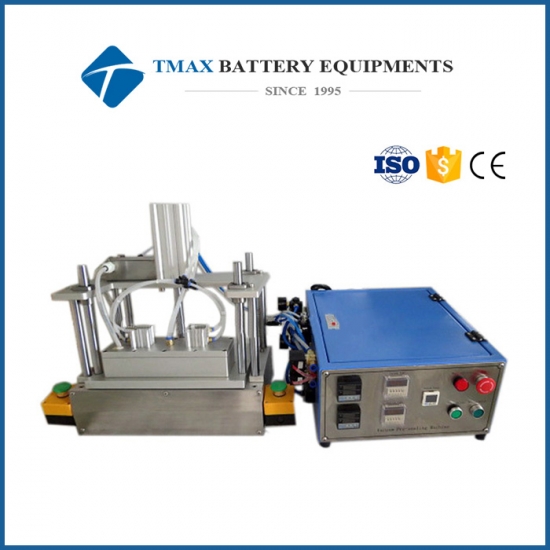

400 mm Length Vacuum Sealer Machine for Pouch Cell Aluminum Plastic Foil Sealing
Model Number:
TMAX-JK-400Dimension(L*W*H):
200-400mm WidthNet Weight:
50KGCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
400 mm Length Vacuum Sealer Machine for Pouch Cell Aluminum Plastic Foil Sealing
TMAX-JK-400 vacuum sealer is mainly used for sealing aluminum-laminated case in glove box after injection of electrolyte into pouch Li-ion cell.The flat sealing head can also suitable for final vacuum sealing after battery formation.
SPECIFICATIONS:
|
Model |
Compact Vacuum Sealer TMAX-JK-400 |
|
Source voltage |
AC 220V/110V, 50/60HZ |
|
Power |
1500W |
|
Warranty |
One year limited warranty with lifetime support |
|
Vacuum degree |
-95Kpa - 0 |
|
Sealing head TEM |
RT-250℃, adjustable |
|
TEM accuracy |
±1.5℃ |
|
Sealing pressure |
0-7Kg/cm2, adjustable |
|
Sealing time |
0-99s, adjustable |
|
Sealing width |
5mm, customized |
|
Sealing head length |
400mm |
|
Air source |
0.5-0.7MPa (72.5-102psi) |
