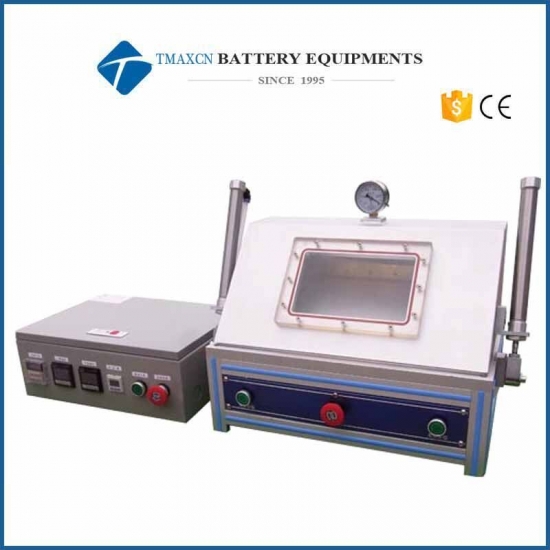

Lab Vacuum Pouch Cell Heat Sealer Machine For After Injection
Model Number:
TMAX-JK-200sDimension(L*W*H):
200-400mm WidthNet Weight:
55KGCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportDelivery Time:
3 Days
Wechat:13506084915
Lab Vacuum Pouch Cell Heat Sealer Machine For After Injection

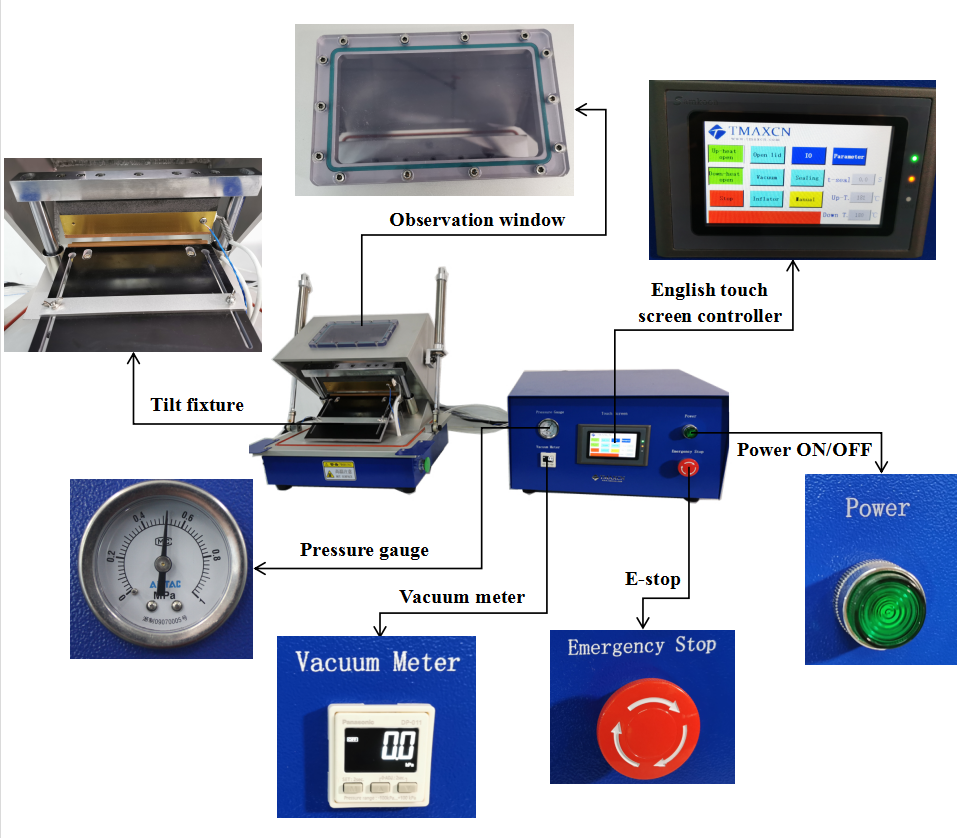

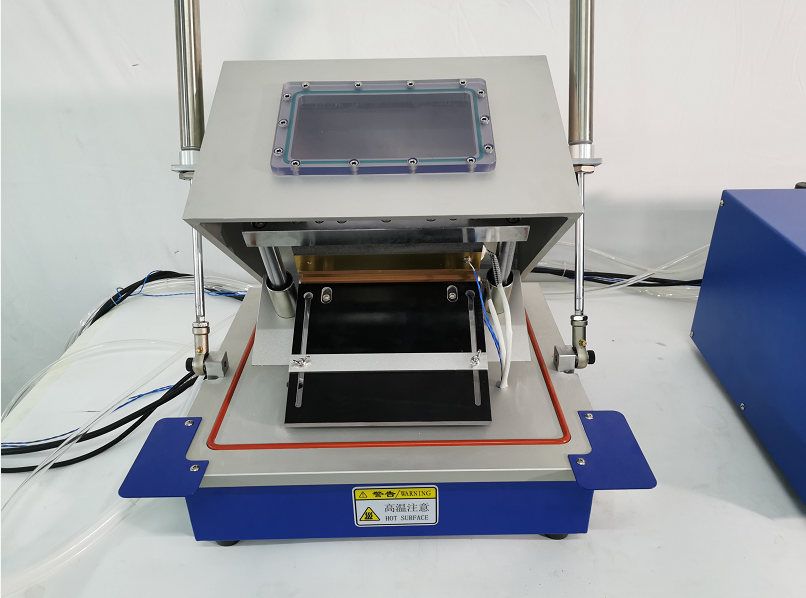

TMAX-JK-200s Vacuum pre-sealer for battery is a compact vacuum sealer for sealing aluminum-laminated case in glove box after injection of electrolyte into pouch Li-ion cell or after formation for final seal (polymer Li-Ion cell). Heatable sealer blade is built into the chamber.
Specification
|
Type |
TMAX-JK-200s Vacuum pre-sealing machine |
|
Vacuum |
up-90Kpa ~ 0 adjustable |
|
Head temperature |
room temperature ~ 250 °C, temperature adjustable |
|
Temperature Accuracy |
± 2 °C |
|
Sealing pressure |
0 ~ 7Kg/cm2 adjustable |
|
Sealing time |
0 ~ 99 seconds adjustable |
|
Edge Width |
5mm |
|
Maximum Edge Dimensions |
200mm |
|
Head Parallelism |
with triple NCR, head pressure at 0.6MPa, temperature 200 °C, pressure
out of uniform seal
|
|
Air Consumption |
Approximately 0.2L compressed gas / each message once |
|
Air Working speed |
≥ 180 times / h |
|
Power |
Using 500w heat pipe, heat the power consumption of about 1KW |
|
Power supply |
220V/50Hz; |
|
Compressed air source |
0.5 ~ 0.8Mpa; |
|
Dimensions |
Work Department: 470mm * 485mm * 435mm |
|
Control box |
420mm * 325mm * 225mm |
|
Weight |
about 50Kg |
