18650 Cylindrical Battery Paper Sticker Padding Sticking Machine
Model Number:
TMAX-MMBDimension(L*W*H):
1.3M*1M*1.3MCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

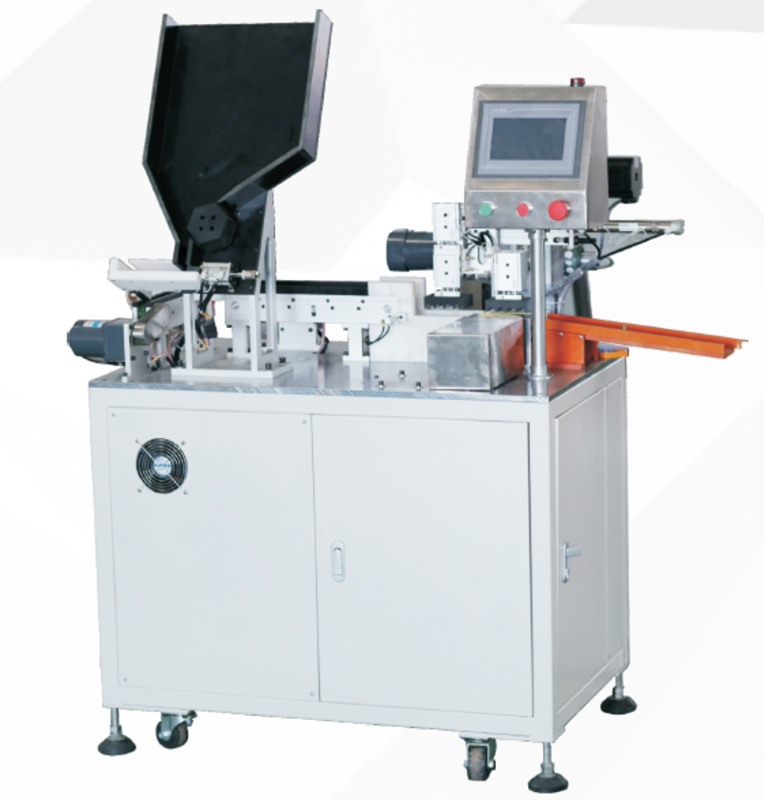

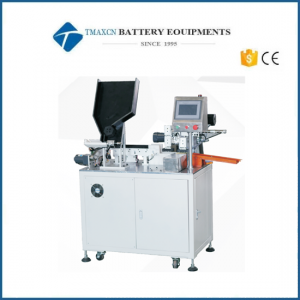

18650 Cylindrical Battery Paper Sticker Padding Sticking Machine
Features
This machine can use a big roll of barley paper or PVC to automatically paste cylindrical cells.
1. Stickers pasted stable, consistent, and long lasting.
2. Automatic failure alarm.
3. Easy to program, adjust, and opertate for new hands.
4. High Efficiency, fully automatic, saving labor cost.
Specifications
|
Input Gas Source |
0.4-0.8Mpa |
|
Function Style: |
Stepper drive with pneumatic |
|
Input Voltage: |
AC220V |
|
Sticker Matrials: |
Barley paper or PVC |
|
Sticker Matrials Size: |
Barley paper Maxium 350mm;Scroll Internal Diameter 72-75MM |
|
Adaptable Battery Cell |
18650 battery or other cylindrical batteries |
|
Power: |
Electric power or pneumatic |
|
Control Instrument: |
7.5 feet contact screen,PLC programming machine and step motor |
|
Electrodes to the Body Distance: |
100 mm (Scalable adjustable) |
|
Producivity: |
4000pcs/h; singal 4pcs |
|
External Dimensions |
1.3M*1M*1.3M |
