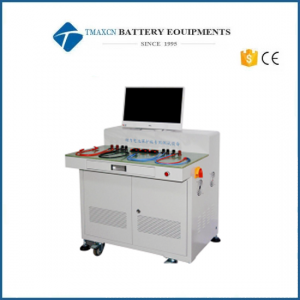

32 Series Protecting Board BMS Tester
Model Number:
TMAX-C-BMSType:
AutomaticDimension(L*W*H):
420*430*220mmNet Weight:
16kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

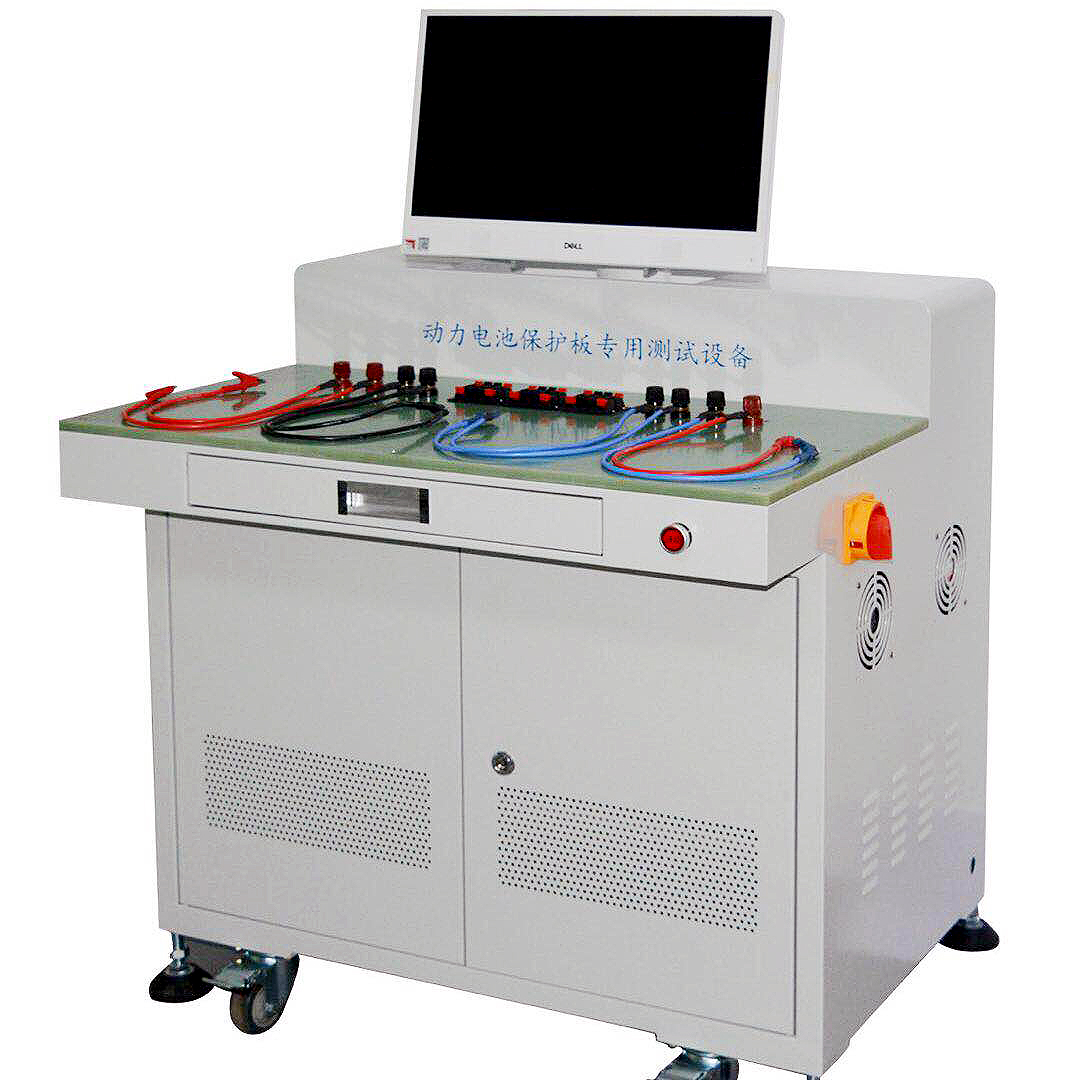

32 Series Protecting Board BMS Tester
Features
The integrated test equipment for finished batteries is a fast and accurate equipment for testing the performance of finished batteries. The main test items are: open circuit voltage, AC internal resistance, discharge test, discharge overcurrent test, short circuit protection test, charging test and charging protection test. The system uses 32-bit ARM processor and 16-bit AD converter for voltage and current. Compared with similar devices, the system has fast test speed, high test precision and supports multiple devices to operate at the same time. Widely used in automotive electronics, aerospace, ships, solar energy storage, electric bicycles, electric motorcycles, backup power batteries, communications power and other power battery production and scientific research and experimental testing.
Specifications
|
Input Power |
AC220V±10%/50HZ |
|
|
Open Circuit Voltage |
Testing Range |
0-100V |
|
|
Resolution Ratio |
±2mV |
|
Current |
Charging Range |
0.05-15A |
|
|
Resolution Ratio |
±1mA |
|
|
Discharge Range |
0.05-120A |
|
|
Resolution Ratio |
±1mA |
|
|
Accuracy |
± 0.2% of reading ± 0.2% of range |
|
Internal Resistance |
Resolution Ratio |
±1mΩ |
|
Short Circuit Protection |
Time |
0-999us |
|
|
Resolution Ratio |
±0.1uS |
|
Middle Machine Type |
1.1 series |
|
|
Voltage and Current Testing Sample |
4-wire connecting |
|
|
Data Management |
MySQL Database |
|
|
Communication Means |
TCP/IP Protocol |
|
|
Data Output |
EXCEL,TXT |
|
|
Communication Interface |
Ethernet Port |
|
|
Size |
850x700x920mm |
|
