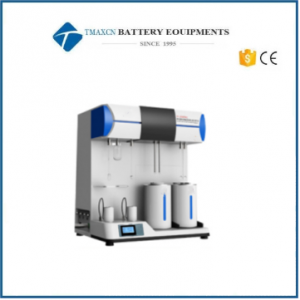

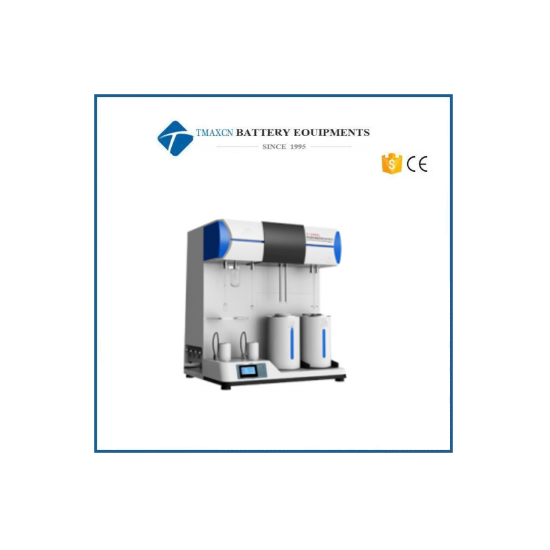

Two Analysis Stations BET Surface Area Analyzer and Porosimetry System

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

Adsorption and desorption isotherm；

BET specific surface measurement (single point/multi-point method)

Langmuir Specific surface;

BJH method pore volume and pore size distribution;

MK-plate method (parallel-plate model) pore volume and pore size distribution;

D-R method micro-hole analysis;

t-plot method (boder) micro-pore analysis;

H-K method (Original) micro pore analysis;

	3H-2000PS1	3H-2000PS2	3H-2000PS4
Analysis Stations	1	2	4
Measurement types:	B.E.T., STSA, adsorption isotherm, desorption isotherm
Surface area range:	0.01m2/g to no known upper limit
Pore size range:	0.35 to >400nm (3.5 to >4000 Å)
Minimum pore volume:	(STP) 0.0001 cc/g

Nitrogen	√	√	√
Other non-corrosive gases (Ar, CO2, H2, C4H10, etc.)	√	√	√
Preparation Ports	2	2	4
Methods	Vacuum	Vacuum	Vacuum
Temperature range:	ambient - 450ºC*, 1ºC intervals

Accuracy	±5ºC
Accuracy (% of span)	±0.1	±0.1	±0.1
Minimum pressure (mm Hg) resolution	0.016	0.016	0.016
Minimum relative pressure P/Po (N2) resolution	2 x 10-5	2 x 10-5	2 x 10-5

Dimensions (WxDxH)	L51cm x W58 cm xH 83cm
Weight	32 kg (80 lbs.)
Electrical	110-240 V, 50/60 Hz

• Affordably-priced—perfect for any laboratory.

• Space saving—each unit takes up less bench space than an open 3-ring binder.

• Versatile—a wide range of characterization techniques for powdered and porous materials.

• Flexible operation—analysis type independent for each station (BET and/or pore size measurement).

•Prepare two samples by vacuum or flow methods simultaneously with sample analysis—at different temperatures if required.

• Access degasser during analysis to start/stop flow or vacuum degassingwith Analysis Interrupt.

•Eliminate cell calibration with classical helium-void-volume mode.

• Upgradeable—can adapt to meet your expanding or changing laboratory needs.

1. Unique and Innovative mainifold gas control system

2. Use of air control valve to avoid the heat effect of electromagnetic valve

3. Two independent vacuum systems permit simultaneous preparation of two samples while analyzing another.

4. Unique sample pretreatment anti pollution device, effectively prevent powder into the degas and analysis system

5. Long duration dewar provides virtually 70 hours analysis capability
