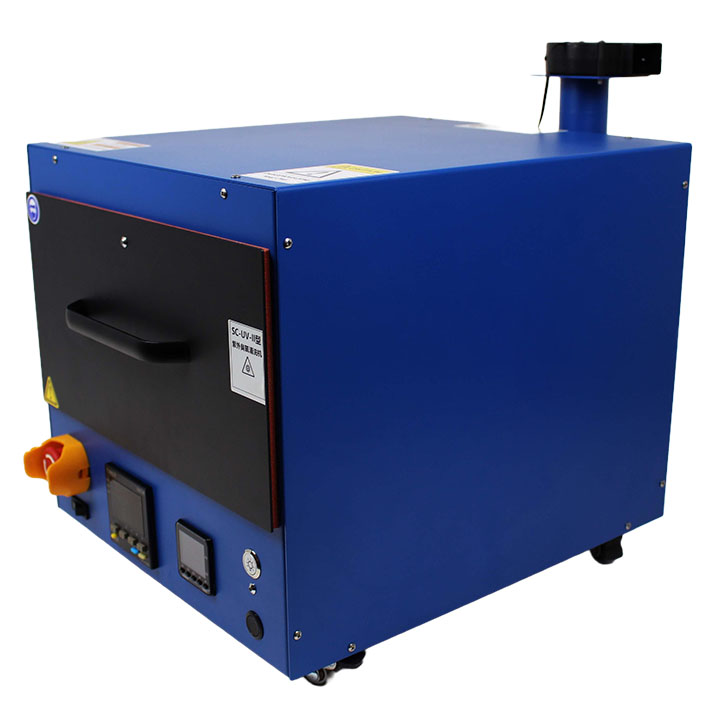

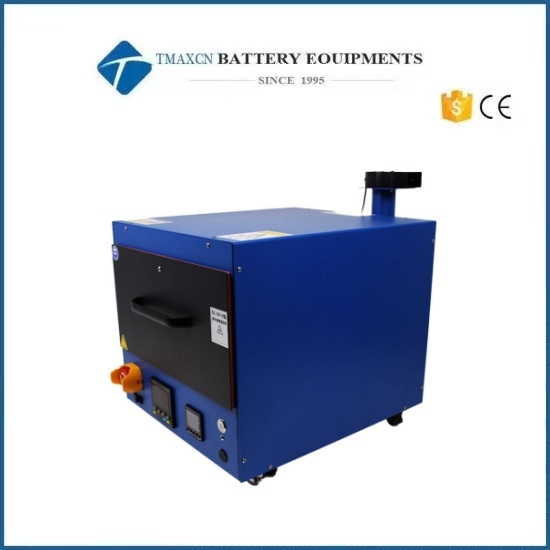

Super Power Stainless Steel UV Ozone Cleaning Machine Cleaning Area 300×300mm With Heating System

Super Power Stainless Steel UV Ozone Cleaning Machine Cleaning Area 300×300mm With Heating System

Key Features：

1. Super large cleaning area, super power, cleaning area up to 300 ×300mm.

2. Drawer-type sample stage, easy and convenient to pick up and place substrates.

3. Dual-band cleaning 185nm and 254nm, ultraviolet and ozone cleaning at the same time, the effect is excellent.

4. Function: Countdown display, accurate timing, optional ozone neutralizer to avoid ozone harm.

5. The interior of the fuselage is made of stainless steel, which is anti-acid, anti-alkali and anti-corrosion.

6. Optional heating system can effectively avoid contaminating the substrate during cleaning. The room temperature can be adjusted to -200 degrees (SC-UV-II+ model).

UV Ozone Cleaner Specifications （SC-UV-II 、SC-UV-II+）

Material	Made  of  stainless  steel ， which  is  resistant  to  acid  and  alkali, anti-corrosion
Structure	Drawer type sample stage, easier to take and place substrate
Air channel	Reserved intake port, a wide variety of cleaning equipment
Protection	The drawer opening and closing are interlocked with the UV lamp to avoid UV damage
Timer	Button timer, digital countdown, easy to look at it
Operation	The cleaning process can be manually terminated at any time
Accessories	Optional ozone neutralizer to avoid ozone damage
Cleaning wave band	185nm and 254nm
Average light intensity at a distance  of  3-5mm  from the UV lamp	28~32mW/cm²
Light tube	Dual wave low pressure mercury tube ×2
Light tube power	300W
Irradiation area	300mm×300mm
Adjustable irradiation distance	5~60mm
Timer range	0~99min99s   with automatic countdown function
Heating area	Room temperature–200℃ (suitable for SC-UV-II+model)
Air intake,Air outlet	Air intake： φ8mm， Air outlet： φ50mm
Outer   dimension   of   the device	380mm(W)×430mm(D) ×320mm(H)
Tray outer dimension	300mm(W)×300mm(D) ×5~ 100mm(H)
Product Weight	26 KG
Relative humidity	< 85%
Ambient temperature	0-40℃
Warranty	1 year
