Lab Hard Cr12MoV Alloy 500℃ Hot Press Machine For Perovskite Solar Cells Making
Model Number:
TMAX-YLJ-HP300Warranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

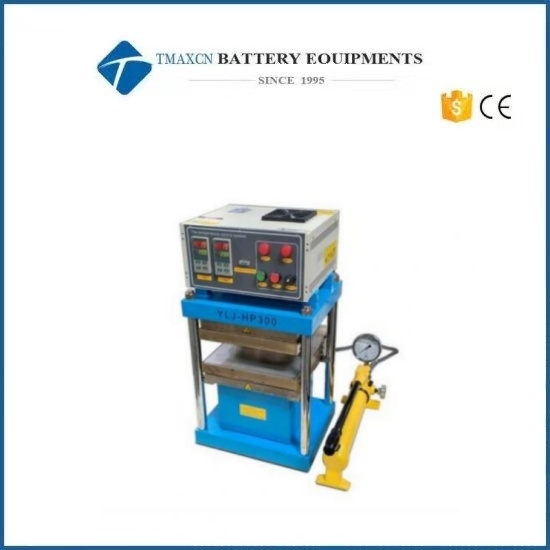

Lab Hard Cr12MoV Alloy 500℃ Hot Press Machine For Perovskite Solar Cells Making
Product introduction

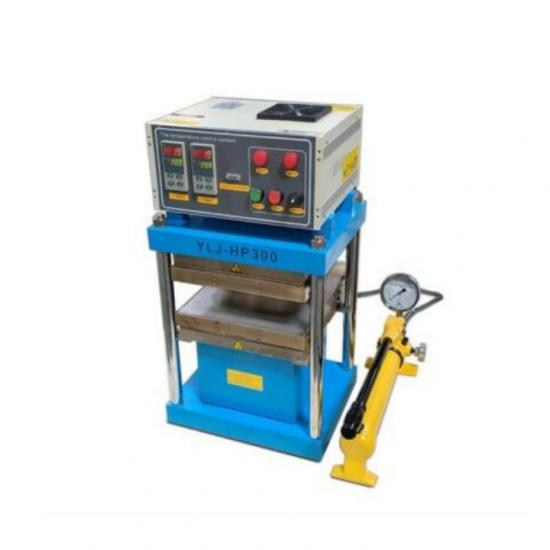

YLJ-HP300 is a CE certified 500℃ temperature controlled type hydraulic plate hot press, which is composed of 30T hydraulic press and two hot plates.Hot pressing plate by two digital display temperature controller to control the temperature, the highest temperature can reach 500℃, the size of hot pressing plate is 30cm*30cm, the material is hard Cr12MoV alloy.The interior of the hot pressing plate is designed with water-cooled sandwich, which can ensure the rapid cooling of the plate;At the same time, a pressure gauge is provided for measuring the pressure of the hot pressing plate.This type of press is ideal for the preparation of polymer and ceramic samples.
Technical parameters
Equipment name and model |
Hot press YLJ-HP300 |
30T hydraulic press |
-Split design for easy maintenance -Maximum pressure: 30T -Manual operation |
Pressure comparison table |
|
Pressure gauge measurement accuracy |
Measurement accuracy: 2.5 |
Hot pressing plate |
Hot pressing area: 300mm*300mm (effective area: 280*280mm) Material: heat-resistant mold steel Surface: Grinding machine processing Cold state, flatness of upper and lower heating plate <0.04mm (within the effective area of 280mm*280mm) |
Maximum cylinder lift |
80mm Do not exceed this lift during the experiment |
Temperature control system |
Upper and lower heating zones There is a separate temperature control box to control the temperature, with two sets of temperature control Maximum temperature: 450℃ (continuous), 500℃ (<30min) Temperature rise rate:0-400℃≤3℃/min, 400-500℃≤2℃/min Temperature control precision: ±8℃ |
Heating rate |
≤2℃/min |
Water-cooled section |
Water-cooled upper and lower heating plates |
Water cooler: KJ-5300 water cooler (optional)
|
|
Overall dimensions |
External dimensions of temperature control system: 360 (L) x 300 (W) x 190 (H) mm Press dimensions: 400 (L) x 320 (W) x 540 (H) mm |
Thickness of materials that can be put in |
≤75mm |
Switchboard power supply |
220V/50HZ |
Wattage |
4.5KW |
Weight |
240KG |
Warranty |
One year warranty, lifetime technical support |
Precautions for use |
-No overpressure and over-temperature use, the preset temperature is 500 degrees, the highest preset pressure can not be greater than 24Mpa. -Please make sure to pass the water cooling before heating to prevent damage to the press, please check the water level of the water cooler before use. - When the material size is too fine, the gap between the middle extruding bar of the mold and the material extruding wall is 0.005mm, some fine materials will fall into the gap, which will cause damage to the mold. Therefore, it is recommended to sieve the powder (200 mesh and 800 mesh sieve) before pressing the material to remove small and large particles (only take the powder between 200-800 mesh), due to the powder is too fine or the mold is not clean and caused by the damage of the mold, the company does not assume the corresponding responsibility. -If the machine is not in use for a long time, please run the press to 2-3Mpa (at room temperature) and tighten the screws of the oil drain valve and oil filling valve. |
Items |
Requirement |
Provider |
Remark |
|
Electricity supply |
Single-phase AC 220V ± 10%, frequency 50/60HZ, power 4.5KW |
Client provided |
Client provided |
|
Need to prepare a single-phase voltage AC 220V 50HZ, maximum current 10A plug board |
Need to prepare a single-phase voltage AC 220V 50HZ, the maximum current 10A plug board
|
Client provided |
|
|
Earth (electric connection) |
Ground wire with resistance less than 4Ω |
Client provided |
|
|
Water chiller
|
The equipment needs to be connected to water cooling when working, a water cooler is needed. |
Customer options |
|
Packing list
Equipment No. |
|
Destination |
|
||
Serial number |
Accessory name |
Specification |
Unit |
Amount |
Remark |
1 |
Hot press machine |
YLJ-HP300 |
Piece |
1 |
Mainframe |
2 |
Temperature control box |
|
Set |
1 |
Installed |
3 |
Polyurethane hose (white transparent) |
Outer diameter φ12*inner diameter φ8mm
|
Set |
1 |
|
4 |
Allen wrench |
M2.5 M3 M4 M5 M6 |
Piece |
5 |
|
5 |
Instruction manual |
|
Book |
1 |
|
