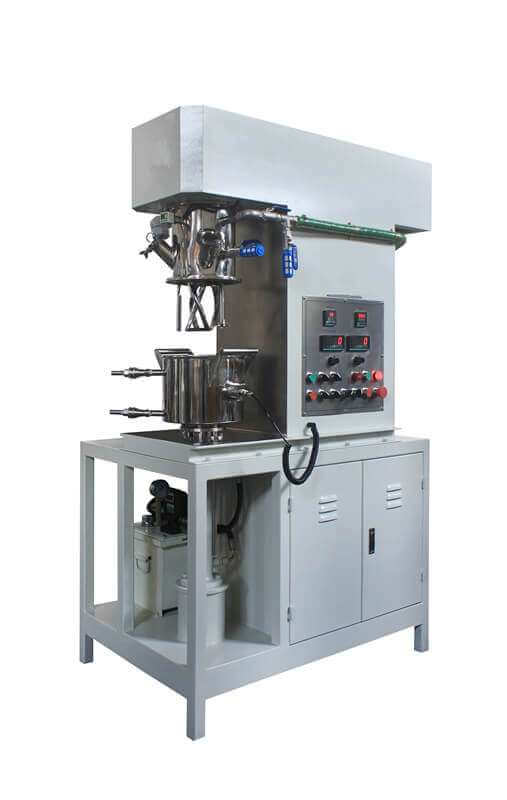

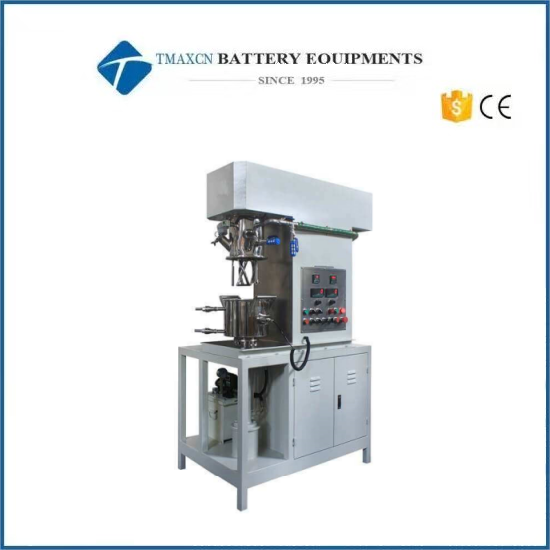

Solid State Battery Vacuum Planetary Mixer For Laboratory Research

Solid State Battery Vacuum Planetary Mixer For Laboratory Research

Scope of application

The powder and liquid of all kinds of common batteries are mixed and dispersed, and finally the battery slurry with uniform mixing is obtained. It is very suitable for high viscosity process.

The viscosity range suitable for working conditions is ≤ 1.2 million CP.

Main parameters of the equipment:

1. Lower barrel parts

2. Total design volume: 3.8L

3. Effective volume: 1.2-2L

4. Inner diameter of container: 180mm

5. Inner depth of container: 150 mm

6. Container material: 304 parts in contact with materials

7. Type of temperature regulating jacket: single layer jacket on barrel wall for cooling or heating; single layer jacket on barrel bottom for cooling or heating

8. Temperature regulating jacket interface: G3 / 8 ", equipped with quick opening Union, jacket pressure resistance ≤ 0.4MPa

9. Temperature regulating jacket circulation system: provided by the customer, it is recommended that the jacket water inlet temperature is ≤ 8 ℃, and the cooling water flow is > 1.5l/min

10. Discharging form: there is no discharging valve at the bottom of the barrel

11. Design ambient temperature: - 10 ～ + 120 ° C

Mixing part

1. Working frequency: 5-50 Hz

2. Mixing power: 0.75kw

3. Impeller speed: 8-76rpm

4. Planetary gearbox speed: 5-52rpm

5. Impeller diameter: 94mm

6. Impeller style: variable cross-section spiral twist, 90 ° helix

7. Material of agitator: 304

8. Linear speed of agitator: 0.03-0.37m/s

9. Number of agitators: 2

10. Distance between oars: 6 ± 1 mm

11. Distance between paddle and barrel wall: 3 + 1mm

12. Distance between paddle and bucket bottom: 2-3mm

Dispersion part

1. Working frequency: 5-50 Hz

2. Decentralized power: 1.1kw

3. Dispersion speed: 450-4450rpm

4. Diameter of dispersion plate: 60mm

5. Scatter plate style: zigzag

6. Material: 304

7. Dispersive linear velocity: 1.3-13m/s

8. Number of distributed disks: 1

9. Number of distributed axes: 1

Scraping parts

1. Material: 304

2. Material: polytetrafluoroethylene

3. Speed of wall scraping: consistent with the speed of planetary box

4. Detachable or not: detachable design (the scraping wall must be removed in high viscosity process)

Base and lifting parts

1. Component material: carbon steel for high rigid structure

2. Lifting mode: hydraulic lifting

3. Lifting guide: guide rod

4. Lifting stroke: ≤ 225mm

Upper barrel parts

1. Upper barrel material: 304

2. Powder + liquid feeding port: one DN50 mirror feeding bucket

3. Spotlight: one DN50 toughened glass mirror

4. Vacuum + vent: one G1 / 2 "inner wire

5. Exhaust port: shared with vacuum port

6. Digital display vacuum meter port: M14 × 1.5 internal screw metric tooth interface

Control system

1. Electrical cabinet: used for placement of low-voltage electrical components such as frequency converter

2. Operating panel: used to place buttons, knobs, etc

3. Power supply: AC 3 × 380V ± 5%, 50 Hz

4. Control mode: electronic control

5. Power control and speed regulation mode: inverter start and control

6. Cooling mode: air cooling

7. Operation mode: the corresponding button + knob is operated on the upper panel of the electric cabinet

8. Digital temperature display table: material temperature

9. Emergency stop button: one

10. Alarm system: over temperature alarm, over temperature alarm shutdown, alarm shutdown

11. Speed display: the panel table displays the speed

12. Power indicator: one

Safety interlock system

1. Emergency stop: press the emergency stop switch to stop the equipment immediately without any operation

2. Start low speed mixing: you can rotate while lifting the barrel

3. High speed dispersion: the barrel can be rotated only when it is in place

4. Safety lock in operation: when the machine is running for mixing, the mixing bucket cannot be lowered or opened.

5. Prevent vacuum pipeline backflow: the special design of vacuum buffer tank can effectively prevent the vacuum pump oil from backflow to the mixing tank

6. Operation fault stop: the frequency converter is equipped with overload, over-current, over-voltage, leakage, lack of protection

7. Mixing bucket lifting: the mixing bucket can only rise after it is in place.

8. If the vacuum in the mixing drum is not discharged (normal pressure is not restored), it cannot be lowered.

9. The mixing drum can be started only after it rises to the right position and disperses at high speed.

10. After the mixing drum rises to the position, it is equipped with a locking protection system to prevent the mixing drum from falling abnormally when it rises to the high position.

11. During the dry mixing stage, the agitator needs to rotate and lift the drum.

Other instructions

1. Temperature probe: Pt100

2. Temperature measurement method: the temperature measurement head installed on the barrel wall is used to detect the material temperature

3. Transmission parts bearing: high speed parts are imported bearings, low speed parts are domestic bearings

Oil seal: domestic brand, static seal with O-ring, dynamic seal with mechanical seal

4. Lubricating grease: domestic brand

5. Lubricating oil for mechanical seal: imported brand

6. Valve: domestic brand

7. Vacuum design demand: customers must provide their own vacuum system with a pumping capacity of 2l / S (2xz-2)

8. Vacuum holding: - 0.098mpa, pressure holding for 24 hours, higher than -0.085mpa, no leakage into the barrel

9. Total power of host: > 3kw

10. Total weight: about 550Kg

11. Equipment size: length 1000mm × width 700mm × height 1835mm

12. Exterior color: beige

13. Ground bearing capacity: 900kg / m2
