Laboratory Stacking Machine for Solid State Battery Manufacturing with Three Magazines

Laboratory Stacking Machine for Solid State Battery Manufacturing with Three Magazines

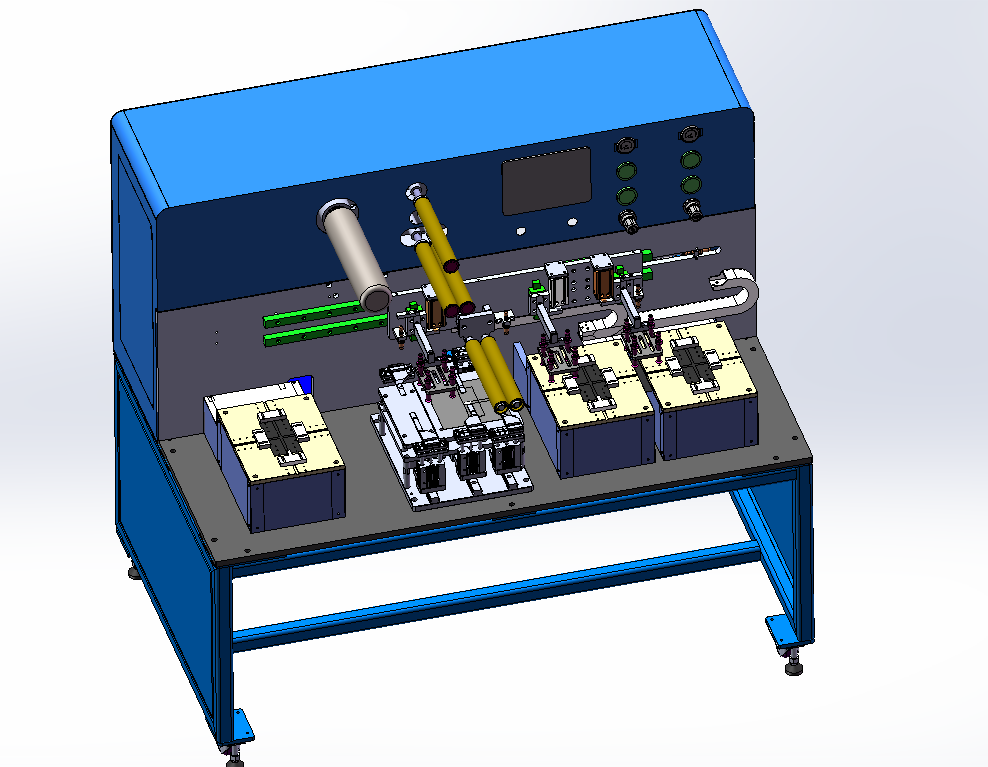

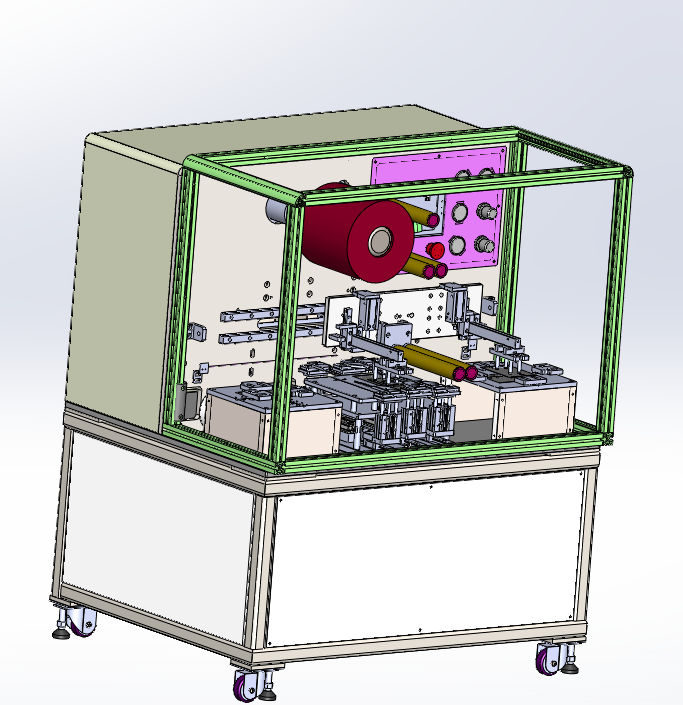

The TMAX-111A-D is primarily used for the Z-fashion stacking assembly of cell electrodes and solid electrolyte. This equipment enables manual loading of pieces, by fully automatic alignment and stacking processes, offering high stacking efficiency and precision. It is designed to stack battery cells up to 160*160/300*300mm, with adjustments available for different sizes via interchangeable fixtures, making it highly suitable for the development and sample production of stacked solid state battery. The equipment features a single-arm structure, automatic constant tension control for the separator roll, and automatic correction control.

Features

*The number of stacking layer can be automatically controlled according to the preset;

*The compatibility design is adopted, and the change of battery size can be realized by adjusting the positioning fixture, with a large adjustment range;

*PLC control, HMI operation, easy to use and maintain;

*Electrode manual loading, automatic positioning, manipulator automatic suction and automatic stacking;

*Separator automatic servo constant tension control.

*Separator automatic photoelectric correction control.

Technical parameters
