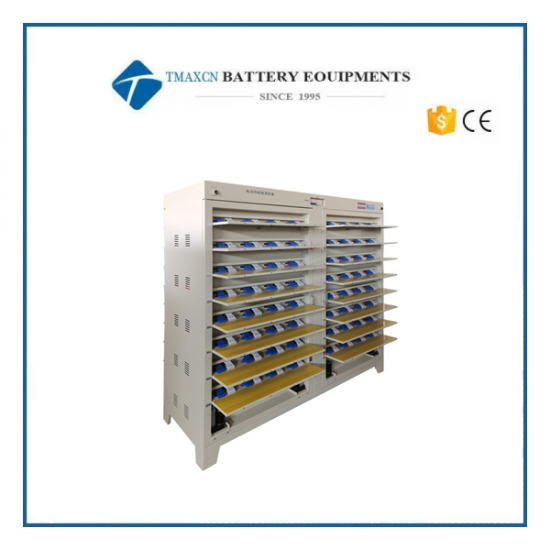

Solid-State Battery Tester with 5V10A Charge and Discharge Capability
Model Number:
TMAX-S14-128-10ACompliance:
CE compliantWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

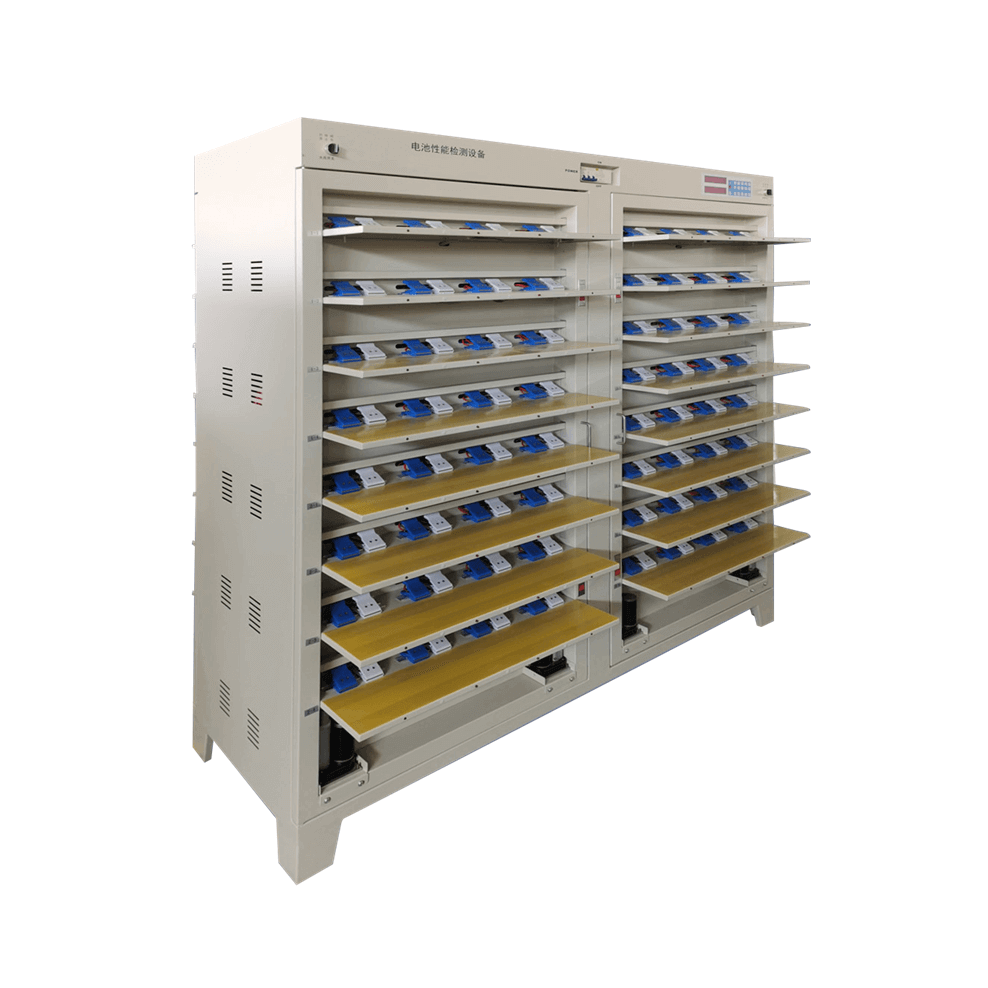

Solid-State Battery Tester with 5V10A Charge and Discharge Capability
Conventional Battery Capacity Tester Structure:
Number of Equipment Channels: 128 channels in total
Overall Dimension: L1680*W930*H1840mm
Chassis Color: Standard off white (customizable)
Fixture Form: Automatic clamp opening, 80 split rail polymer clamp
Clamp spacing: 150mm
Supporting Battery Specification: Polymer, soft pack battery
Working Power Supply: Three phase five wire AC380V±10%,50HZ
Working Power Consumption: ≤11KW
Working Environment: Temperature 0-40 ℃, relative humidity ≤ 80%
Heat Dissipation Mode: Natural air inlet and upward exhaust
Data processing: It can record voltage, current, time, capacity and other data,automatically calculate constant current charging ratio, capacity loss,discharge efficiency, average voltage, median voltage and other data, and provide data curve and cycle diagram;It can output text, Excel, word or MDB database format file.
