Solid State Battery Making Machines Assembly Line Turn Key Solution
Model Number:
TMAX-Solid-StateCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Solid State Battery Making Machines Assembly Line Turn Key Solution
Solid state batteries are a type of battery that uses solid electrodes and solid electrolytes, offering high safety and high energy density by weight and volume. They are expected to meet the increasingly demanding and often conflicting technical requirements in the development of power batteries, making them one of the important directions for the future of power battery development.
Key Performance Attributes
Performance |
Reason for Improvement |
Potential Application Advantages |
High Safety |
Utilizes inorganic non-flammable electrolyte with good thermal stability |
Simplifies system safety protection design, reduces constraints on battery system layout |
High Energy Density |
Capable of adopting bipolar plate structures, compatible with high-capacity anode and cathode materials such as lithium metal |
Enhances battery module energy density, potentially doubling it, and may reduce manufacturing costs |
High Power Characteristics |
Ion hopping transport mechanism of solid electrolytes, with high ionic conductivity and lithium-ion transference numbers |
Improves fast charging performance, matching the needs of electric vehicles |
Good Temperature Adaptability |
Operates within a wide temperature range of -30~100℃, with solid electrolytes that neither freeze nor vaporize |
Simplifies cooling mechanisms, broadening application scenarios for electric vehicles |
Wide Range of Material Selection |
Wide voltage window with good stability at high voltages |
Reduces interfacial side reactions, expanding the range of anode and cathode materials, and lowers raw material costs and resource scarcity risks |

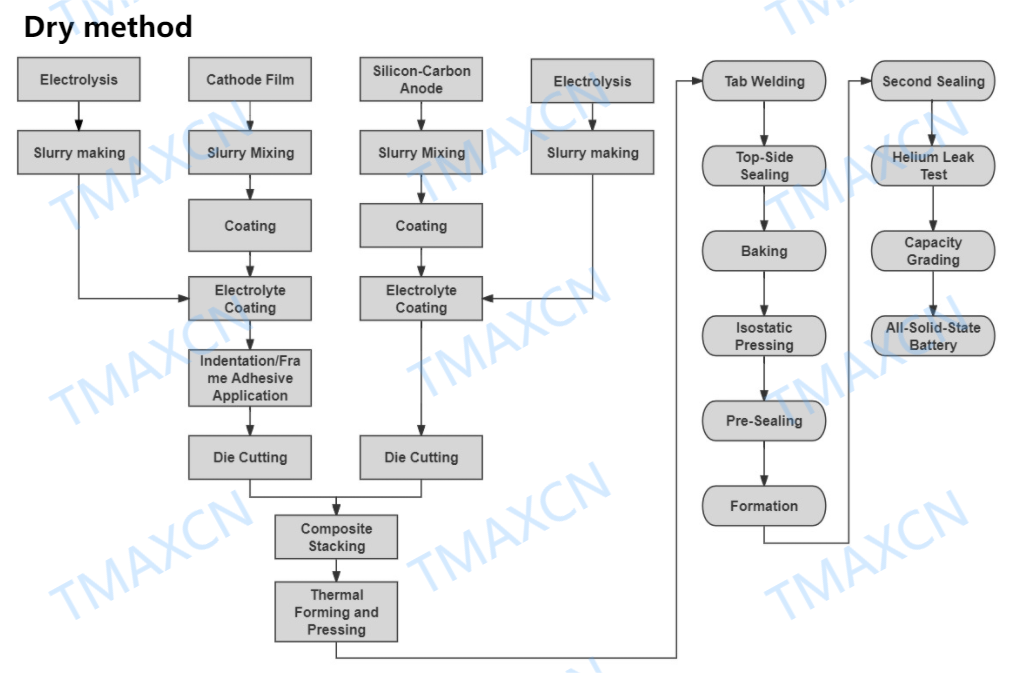

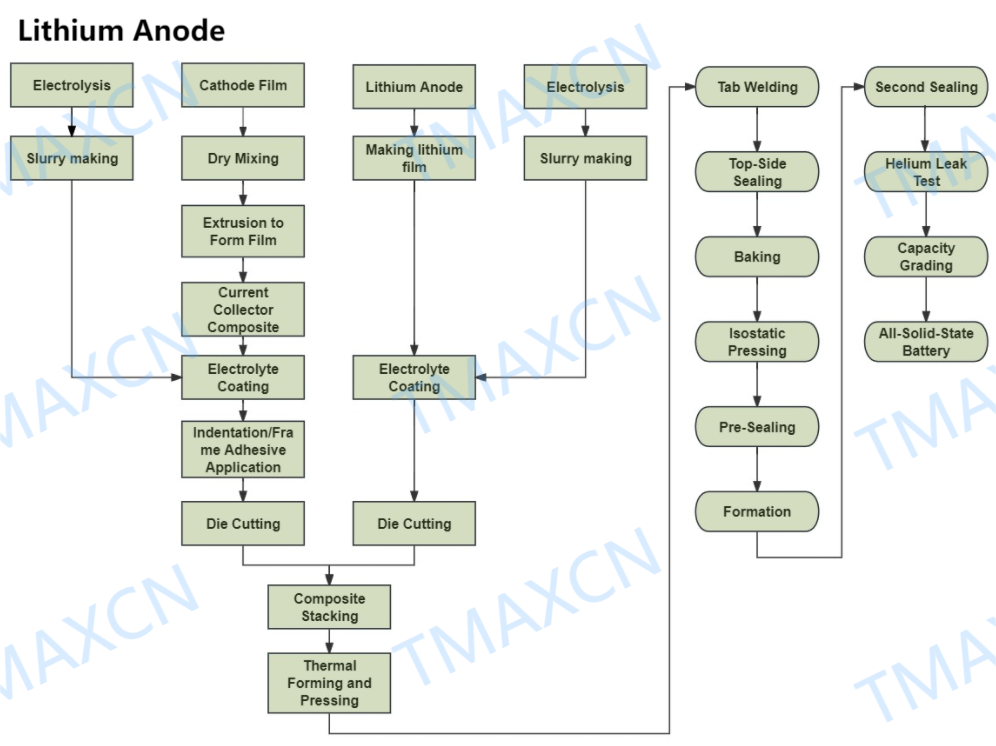

Technical process(just for reference)
![](/js/htmledit/kindeditor/attached/20240724/20240724174501_61351.png)
