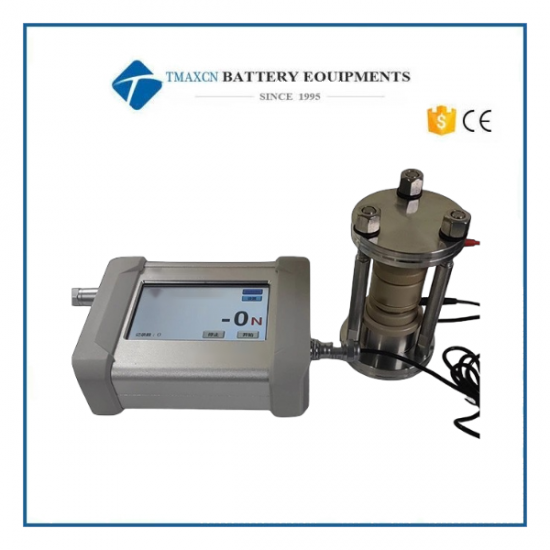

Solid State Battery Manometer Pressure Meter
Model Number:
TMAX-JYGT-10Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Solid State Battery Manometer Pressure Meter
It can prepare the pouch cell for the injection of an electrolyte by sealing the side and top of the pouch cell with the tab.
Suitable for a variety of halides, sulfides, and other all-solid or semi-solid state conditions for charge and discharge testing under pressure.
Product Features
1. Unique thread/O-ring compression design for excellent sealing performance.
2. External metal support made of stainless steel ensures consistent pressure during testing.
3. Compact mold, easy to assemble. Convenient for assembly and high-throughput testing in glove boxes. Tests can be conducted outside the glove box after assembly.
4. Separate leads for positive and negative electrodes to prevent short circuits during testing.
5. Easy to operate, compact, easy to assemble and disassemble, and reusable.
6. Pressure resistance up to: 500MPa or above (1000MPa optional).
7. Appearance: Diameter 69mm, Height 115mm; Electrode diameter 10mm (JYGS1-10) (other sizes customizable).

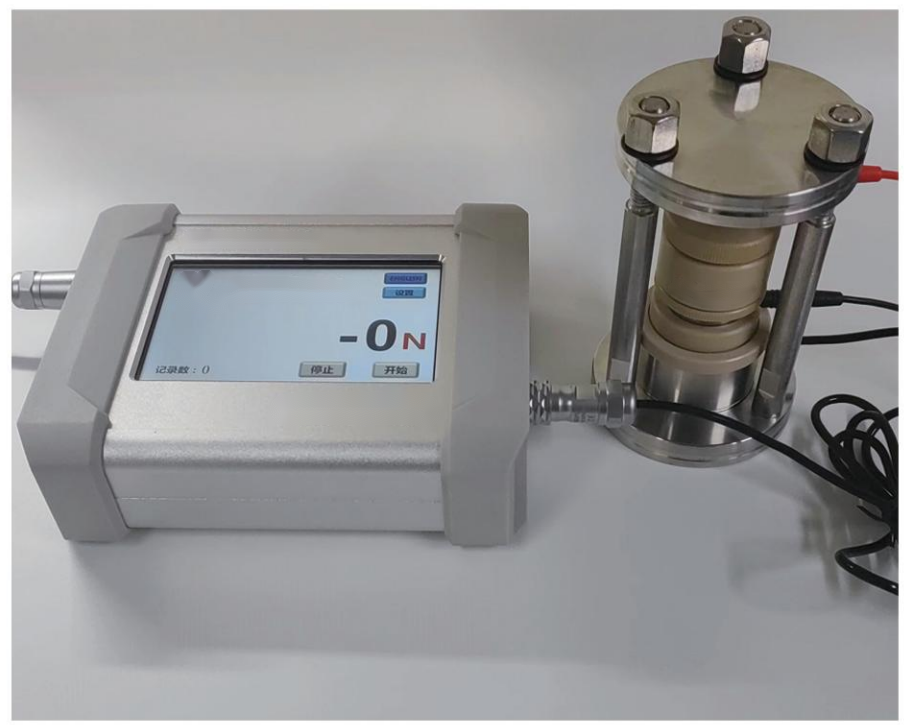

Solid-State Battery Online Pressure Monitoring System (JYGS1-10)
|
Working Pressure Resistance |
500MPa and 1000MPa specifications (customizable). |
|
Software Interface |
Supports switching between Chinese and English. |
|
Accuracy Level |
0.02%. |
|
Minimum Display Value |
1N. |
|
Storage Function |
Built-in storage function, can be used with upper computer, curve display. |
|
Function Expansion |
Supports software and hardware function expansion. |
|
Channel Selection |
Single-channel or 4-channel selection, curve display, adjustable acquisition frequency (multiples of 1 second). |
|
System Dimensions |
Diameter: 69mm, Height: 123mm (200MPa); Weight: approximately 1KG. |
