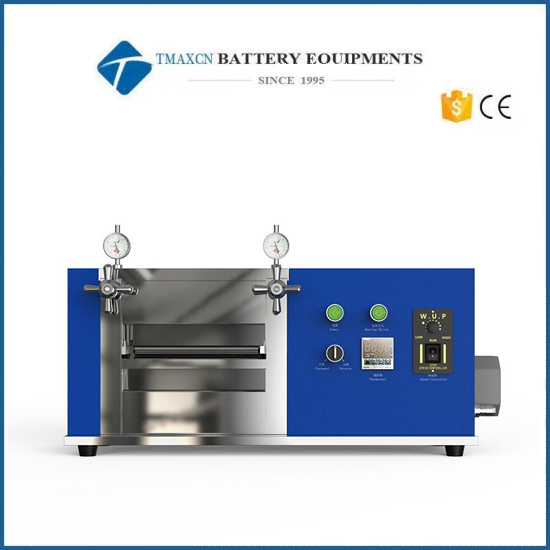

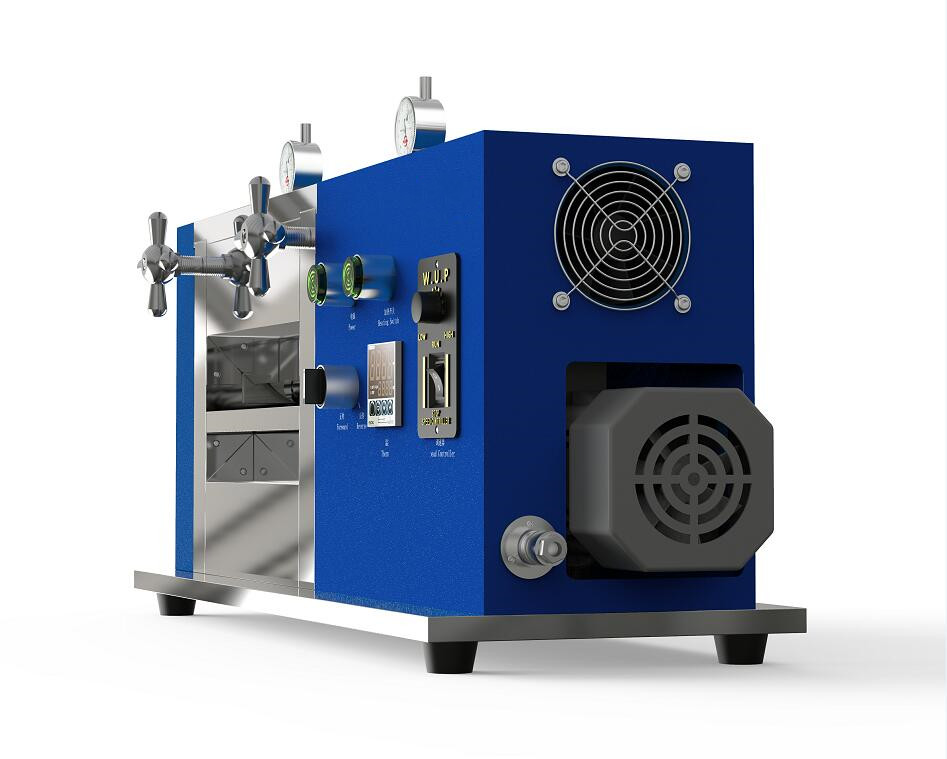

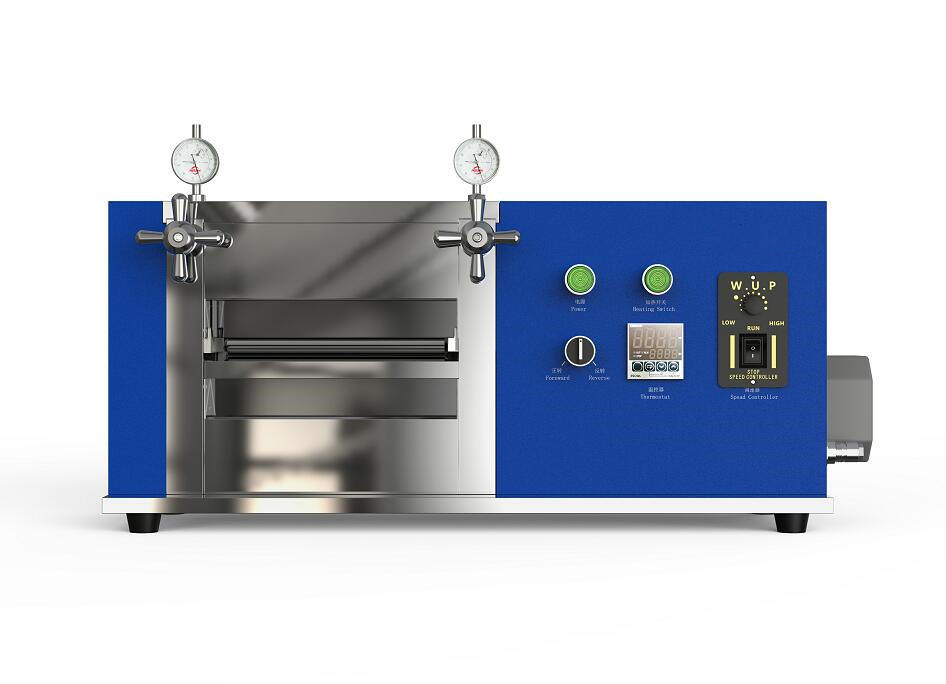

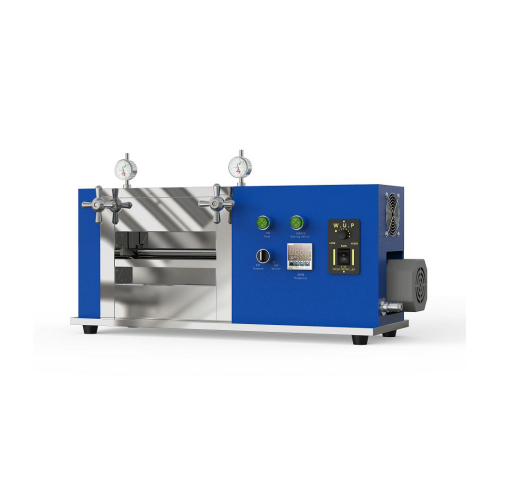

Sodium Battery Electrode Electric Hot Roller Press Calender Machine for Na Ion Cell Lab Research
Model Number:
TMAX-JSDimension(L*W*H):
Diameter 100/200Net Weight:
55kg(180lbs)Warranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Sodium Battery Electrode Electric Hot Roller Press Calender Machine for Na Ion Cell Lab Research

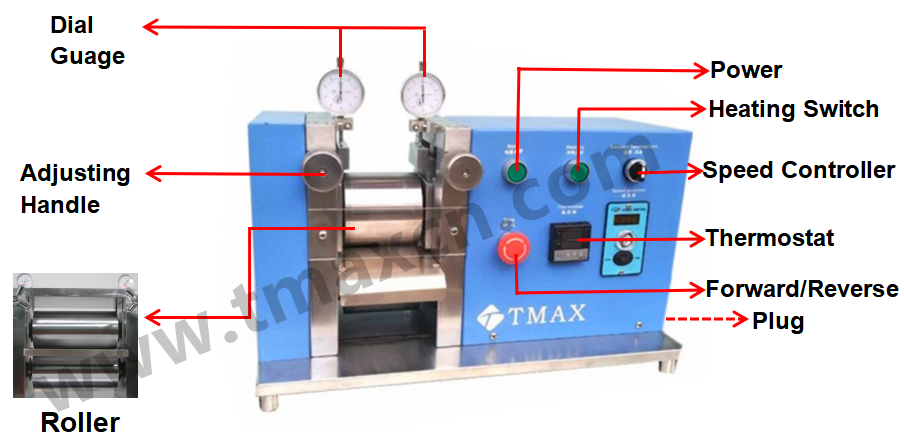

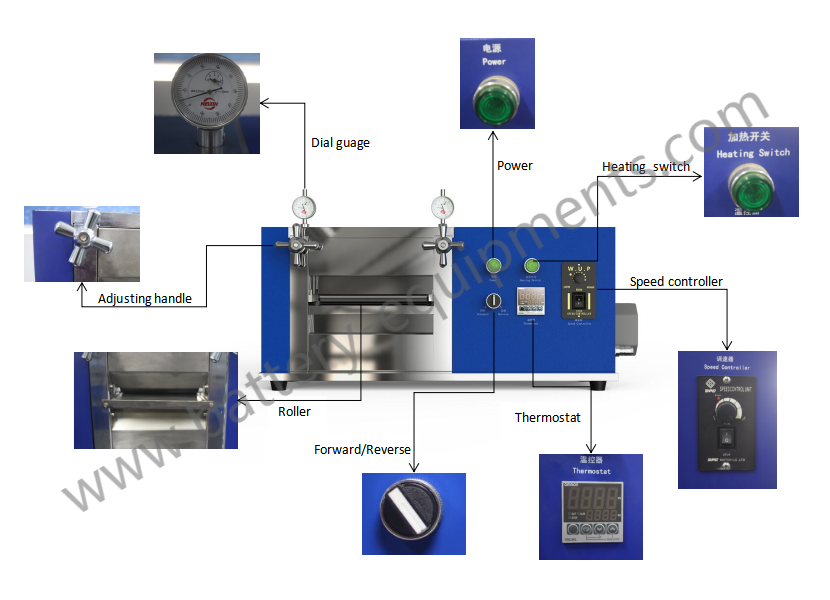

This type of roller press is specially used for electric rolling of small lithium electrode sheets, a small amount of precious metal materials such as gold and silver, copper and aluminum, and other non-ferrous materials. It is especially suitable for thinning and increasing density of lithium battery plate, which is a clean energy material. The machine adopts gear drive to realize roll pressing. The rolling thickness can be adjusted and used conveniently. It can realize percentile meter to directly control the material pressing thickness.
Specifications
|
Model |
TMAX-JS |
|
Working Power |
2400W |
|
Voltage |
220V/110V selectable |
|
Effective Calendering Width |
100-400mm selectable |
|

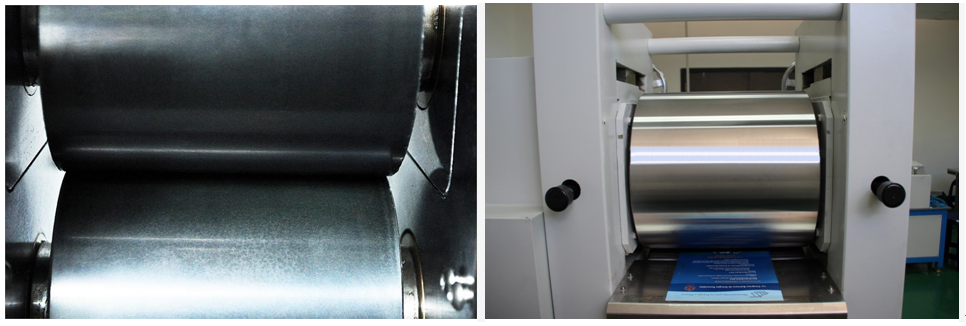

Roller Size Optional |
100mm Dia. x 100mm W 100mm Dia. x 200mm W 100mm Dia. x 300mm W 100mm Dia. x 400mm W Or customized roller diameter and rolling width upon request |
|
Hardness of roll surface |
HRC62, imported 9CR2MO steel roll material |
|
Calendering Thickness (Effective clearance) |
0~2 mm adjustable |
|

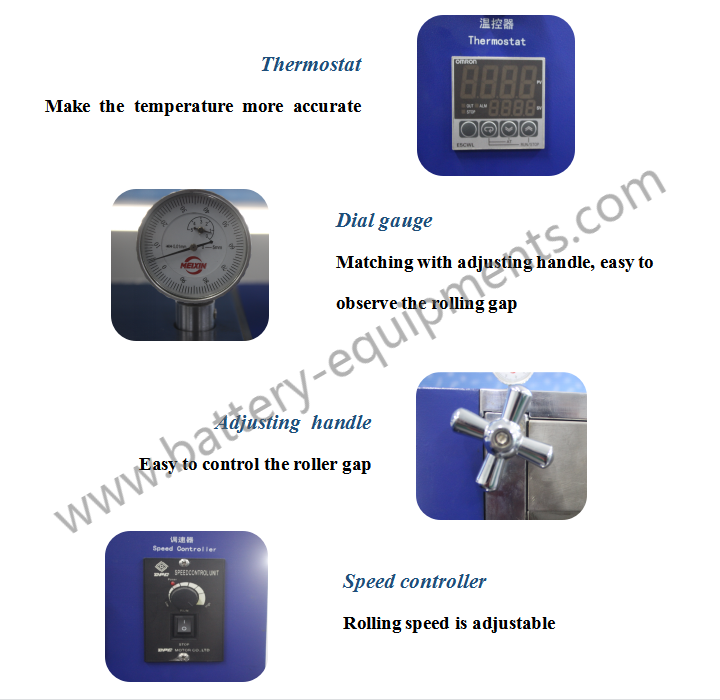

Dial Gauge Accuracy |
0.01mm |
|
Rolling Speed |
CVT, linear speed 0-8.5 m/min adjustable |
|
Roller Surface Finish Degree |
Hard chromium plating never rusts |
|
Roll surface quenching depth |
5mm |
|
Max. Pressure |
3Ton |
|
Heating Temperature |
· 150°C Max. (< 1hr) · 130°C Continuously · Recommended Heating Rate: 1.3°C/minute The heating temperature can be customized |
|
Operation environment |
Ar gas compatible |
|
Temperature Control Accuracy |
+/-1°C |
|
Warranty |
One year warranty with life time technical support |
