Small Roll to Roll Continuous Coater Coating Machine for Battery Electrode

Model Number:
TMAX-TMJ-180C
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

Small Roll to Roll Continuous Coater Coating Machine for Battery Electrode

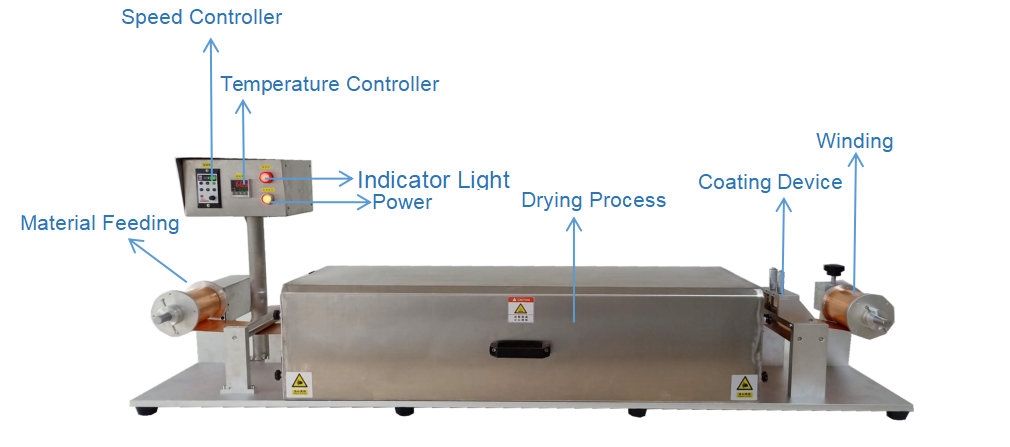

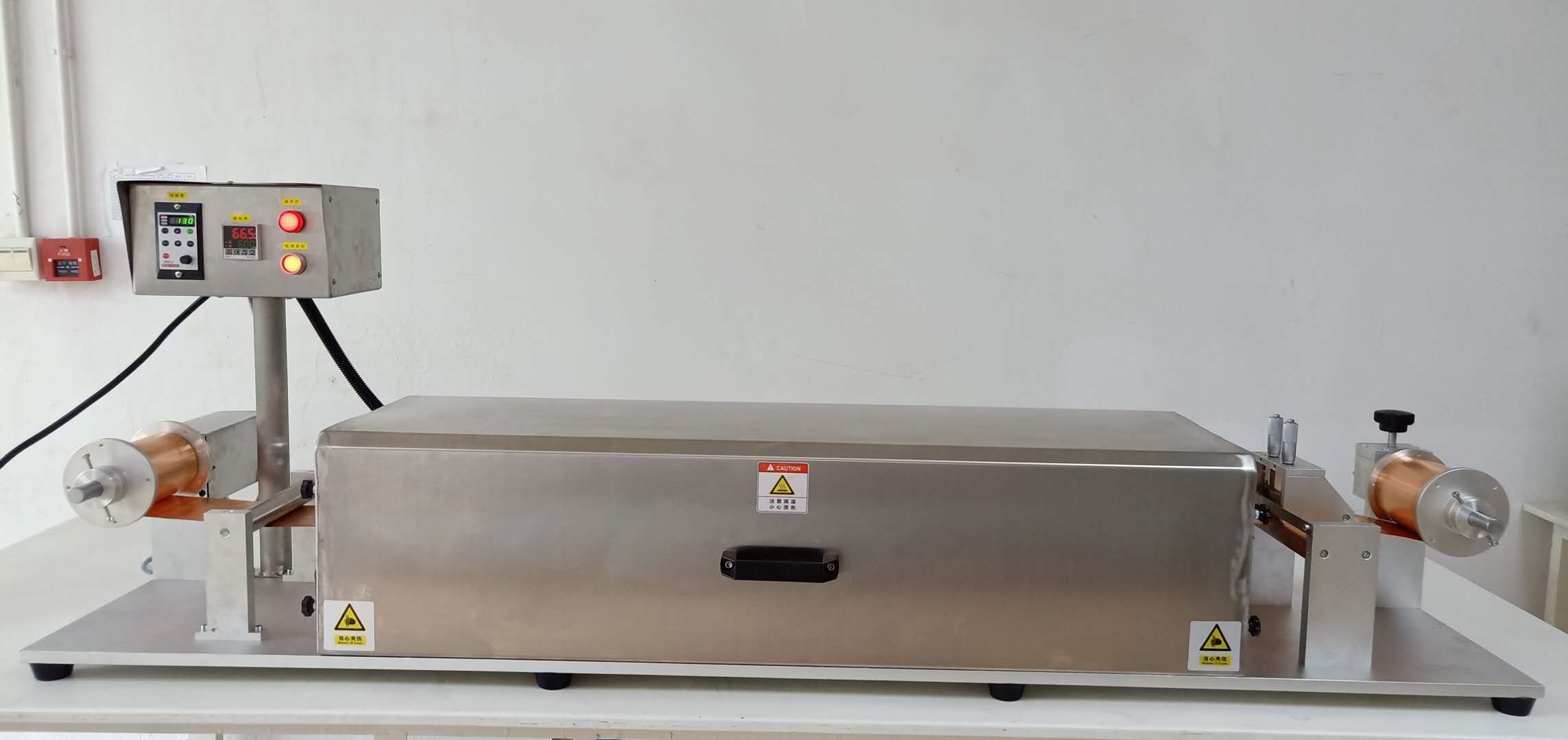

The TMAX-TMJ-180C desktop continuous coating machine is a small roll to roll coating machine （Roll to Roll Coater）for lab research, it is assembled by high precision coating device, suitable for institutions, university and factory pilot scale battery research work.

Specifications

Model	Roll to Roll Continuous Coating Machine TMAX-TMJ-180C
Source voltage	AC 220V/110V, 50HZ/60HZ
Power	400W
Suitable material thickness	Aluminum foil : 0.01-0.03mm Copper foil : 0.006-0.020mm
Max electrode width	50-180mm
Coating speed	0-2m/min, adjustable
Max. drying temperature	100℃ ,PID control mode
Oven length	400mm/800mm/1100mm or customized length upon request
Coating thickness	0.01mm-2mm
Coating thickness accuracy	0.01mm
Film applicator	One standard film applicator is included as below: Analog film applicator with fix coating width 0~3mm gap/coating thickness adjustable Coating accuracy: ±0.01mm Optional parts:* Digital micrometer Adjustable width Different gap/coating thickness
Warranty	One Year limited warranty with lifetime support
