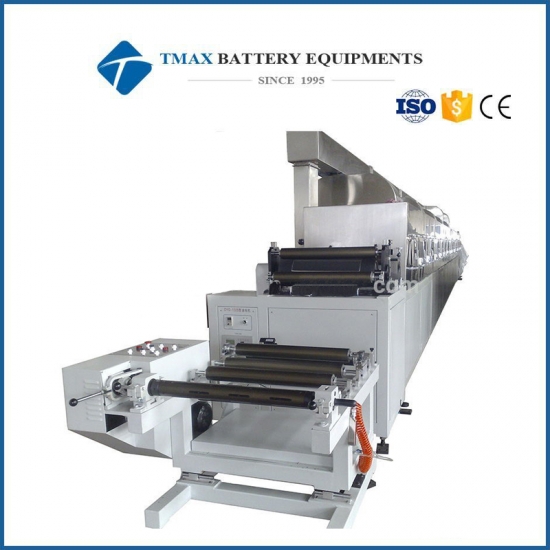

Roller Coating Machine For Lithium Battery Slurry Drying Coater
Model Number:
TMAX-DYG-132MSInput Power:
40000WDimension(L*W*H):
electrode width: 400 mm adjustableCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Email:David@battery-equipments.com
Wechat:13506084915
Wechat:13506084915
DESCRIPTION
Roller Coating Machine For Lithium Battery Slurry Drying Coater
The lithium battery coating machine TMAX-DYG-132MS model coating machine is a single face continuous and Intermittent coating machine mainly used for Slurry drying process of lithium battery electrode coating. The battery coating machine adopts continuous and Intermittent coating mode, is mainly used for lithium battery pilot scale production line.
|
Model
|
Lithium ion Battery Coating Machine TMAX-DYG-132MS
|
|
Source voltage
|
AC 220V/110V, 50HZ/60HZ
|
|
Power
|
40000W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Suitable material thickness
|
Aluminum foil : 0.01-0.03mm
Copper foil : 0.006-0.020mm
|
|
Max electrode width
|
400mm
|
|
Mechanical tape speed
|
1-6m/min
|
|
Coating speed
|
0.6~8m/min, adjustable
|
|
Air compression
|
0.5-0.7MPa
|
|
Coating mode
|
Single face continuous and intermittent coating
|
|
Equipment length
|
8.5M (3M*2Section oven+2.5M)
|
|
Equipment function
|
1 PLC intelligent control equipment,
has a continuous convex point easily eliminate clearance
2 Use hot air circulation heating mode, high thermal efficiency
3 Coating method : continuous and intermittent coating 3.1 The first face automatic fixed-length block coating 3.2 The second face automatic tracking the first face composite coating 3.3 Reverse coating interval length distance 4 Coating length : More than 50mm can set clearance or continuous coating The minimum coating length : 8mm, Minimum interval length : 5mm, The minimum track length : 50mm 5 Double-sided dry thickness accuracy : ≤±0.003mm 5.1 Both the front and coated alignment error : ≤±0.5mm 5.2 Each length error : ≤±0.5mm 5.3 Each paragraph width error : ≤±0.5mm 5.4 Trailing : ≤±0.5mm 6 Volume release tension can be adjusted continuously : 0~25N 7 Precision rectification controller : ±0.2mm(Re) 8 Core winding diameter : 3 inches, USES the gas rose axis, Max 300kg 9 Baking mode : 9.1 Hot wind drying, hot wind circulation, 9.2 Electric heating, 9.3 Hot air volume can be adjusted, air volume can be adjusted 10 Oven material : Both inside and outside is made of stainless steel,
oven shell thickness is 1.5 mm
|
