Semi-automatic Electrode Stacking Machine for Pouch Cell Making

Semi-automatic Electrode Stacking Machine for Pouch Cell Making

It is suitable for the stacking process of battery cells. The positive and negative electrodes and the separator are Z-shaped stacked. It is a device that can be used in the process of lithium-ion battery stacking. The equipment adopts automatic tension control system of separator. The air cylinder drives the separator to move left and right to realize Z-fashion stacking. The cantilever design is easy to operate. Compared with the manual stacking machine, the equipment has the advantages of high stacking efficiency, good stacking uniformity and wide range of applicable battery size. It is an ideal choice for R&D sample production and small batch trial production equipment.

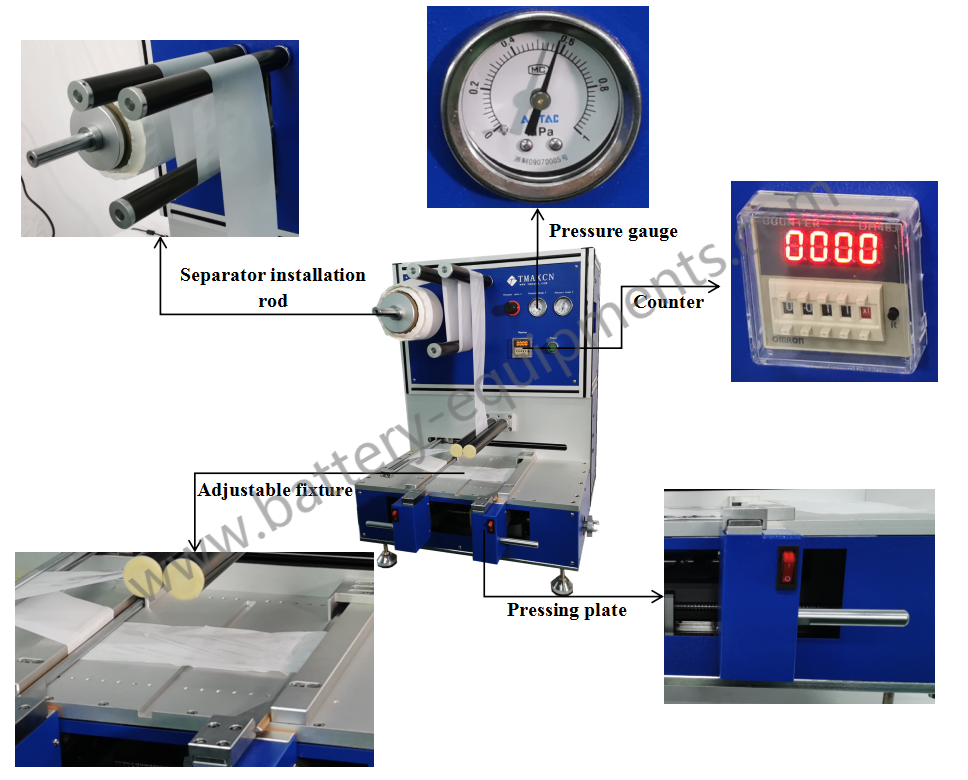

Main features

* the adjustment, operation and maintenance of the machine are simple and easy;

*Suitable for large size range of electrodes;

*Semi automatic stacking and weighing tension control system

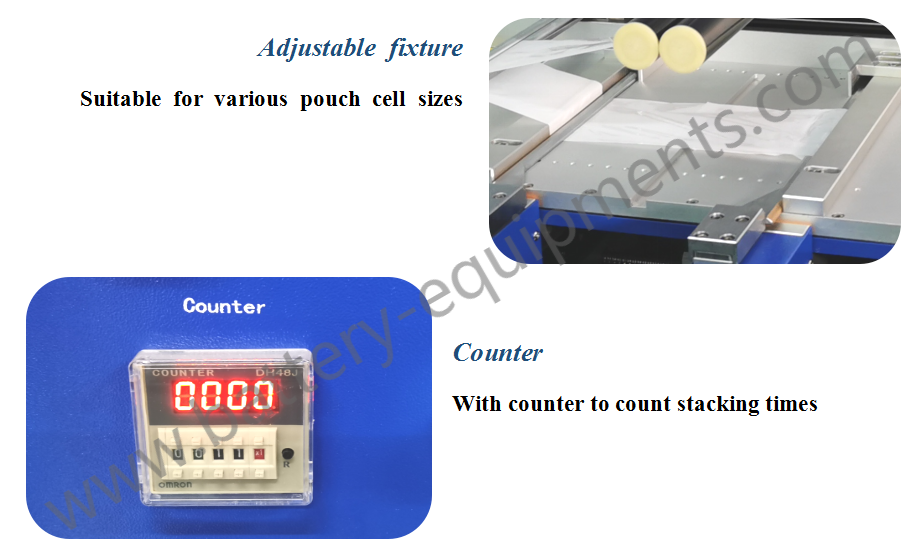

*Automatic count and return to zero function

*Automatic maintenance of last used parameter state function after power failure and not in use

*The whole machine is suitable for a wide range of battery sizes

*Foot switch is used to control cylinder action

*The adjustment, operation and maintenance of the machine are simple and easy

*High efficiency, with digital display timer

*Table type, can be placed on the ordinary desktop, the appearance is exquisite and beautiful;

Features

*The adjustment, operation and maintenance of the machine are simple and easy;

*It can be used in a wide range of laminations;

*Semi automatic lamination and balance tension control system

*Automatic counting and zeroing function

*Automatically maintain the last parameter state function after power failure and non use

*The whole machine is suitable for a wide range of battery sizes

*Use foot switch to control cylinder action

*The adjustment, operation and maintenance of the machine are simple and easy

*High efficiency with digital timer

*Table type, can be placed on the ordinary desktop, exquisite and beautiful appearance;

SpSecifications
