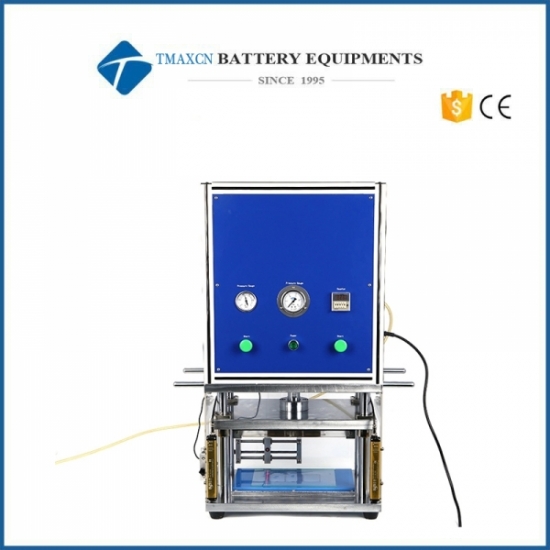

Semi-Automatic Electrode Die Cutting Machine for production line
Model Number:
TMAX-MQ300Type:
Electrode Die CutterDimension(L*W*H):
Max.300mm(L) x 250mm(W)Net Weight:
120kg (265 lbs)Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Semi-Automatic Electrode Die Cutting Machine for production line
TMAX-MQ300 is a CE Certified semi-automatic electrode die cutter.
It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.
SPECIFICATIONS:
|
Model |
Battery Electrode Die Cutter Machine TMAX-MQ300 |
|
Work voltage |
AC110V/220V, 50/60HZ |
|
Power |
100W |
|
Warranty |
One year limited warranty with lifetime support |
|
Cutting Die |
Customized according to customer's request |
|
Safety Protection |
Built in Safety Curtain to protect against hand injuires during electrode feeding Double start press button |
|
Cutting Accuracy |
±0.1mm |
|
Air Cylinder |
5 tons Max. pressure |
|
Tensile Cylinder |
0.15 tons pressure |
|
Cutting stroke |
250mm |
|
Feeding |
Manually |
|
Yield |
800 - 2000 pieces of electrodes per hour |
|
Air Pressure |
0.5-0.8Mpa |
|
Dimension (L*W*H) |
580*455* 900mm |
|
Net Weight |
120kg (265 lbs) |
|
Shipping Dimensions |
47*75*109cm |
|
Recommendation |
For the pouch cell assembly, we also recommend you the following items:

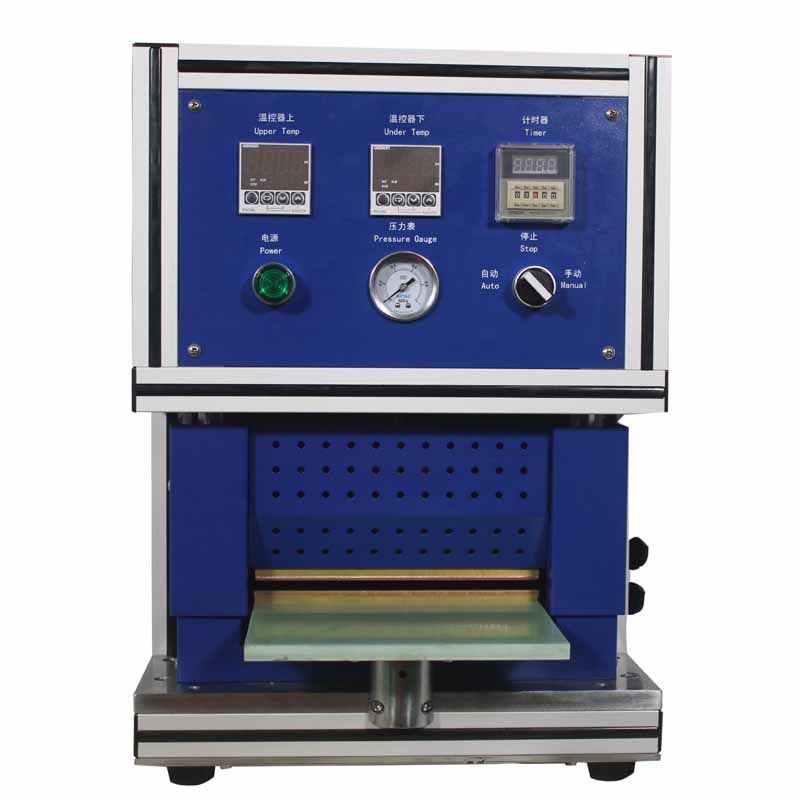

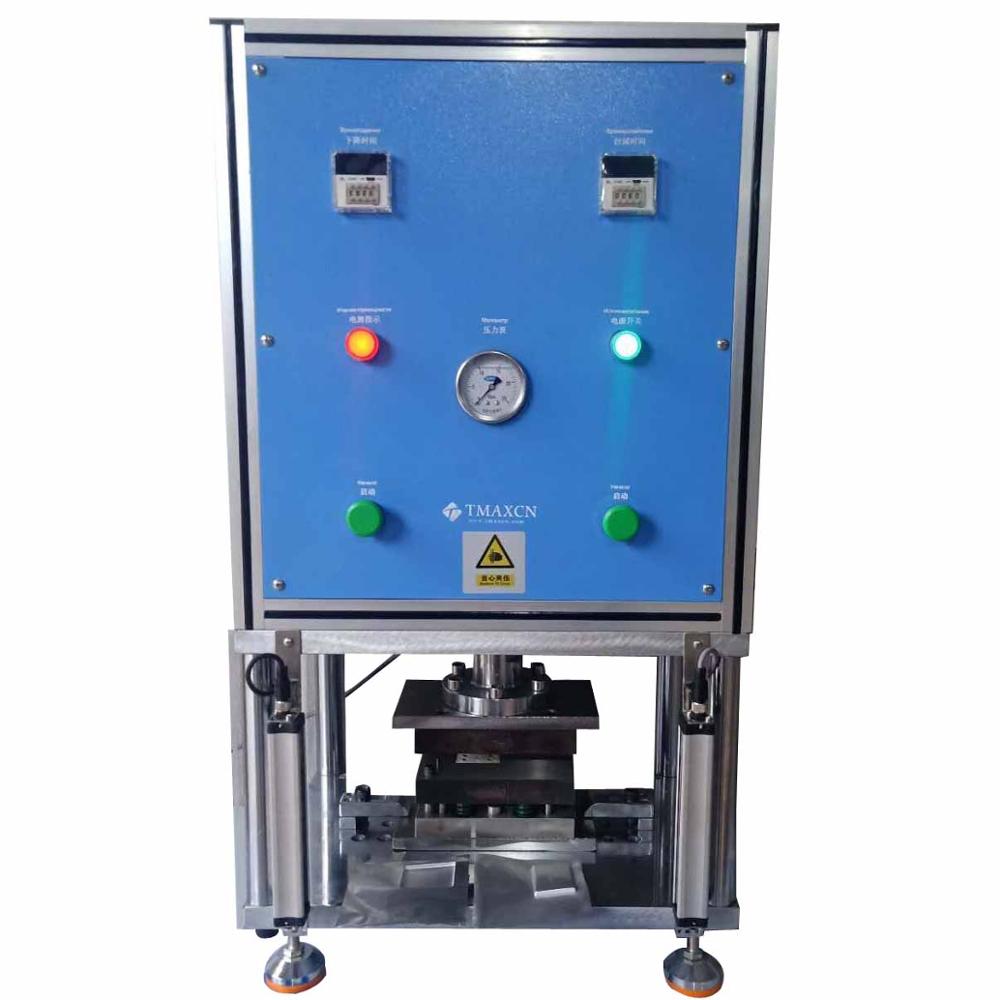

Forming machine Hot sealer with tab Vacuuming sealer

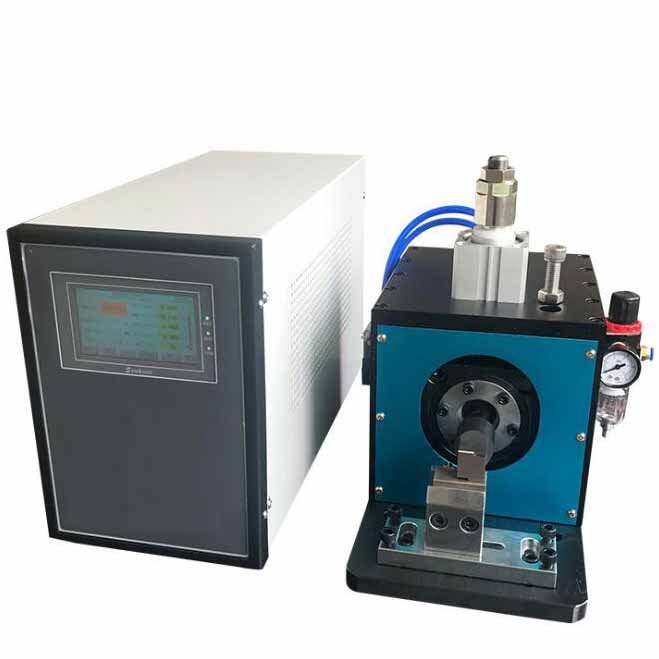

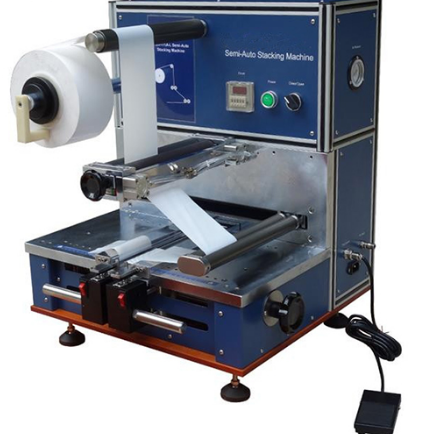

Ultrasonic tab welder Stacking machine Aluminum Laminated Film |
