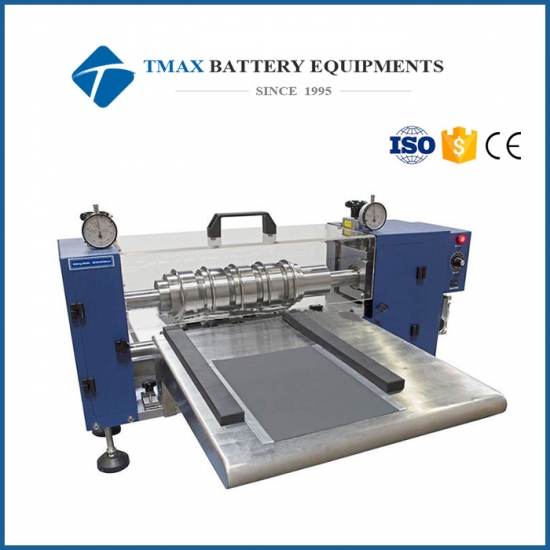

Lab Battery Electrode Slitter Machine With Customized Slitting Width
Model Number:
MSK-300Type:
Electrode Slitter MachineDimension(L*W*H):
Blade Diameter: 100mm It can be customizedNet Weight:
110kg (250 lbs)Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Lab Battery Electrode Slitter Machine With Customized Slitting Width
SPECIFICATION

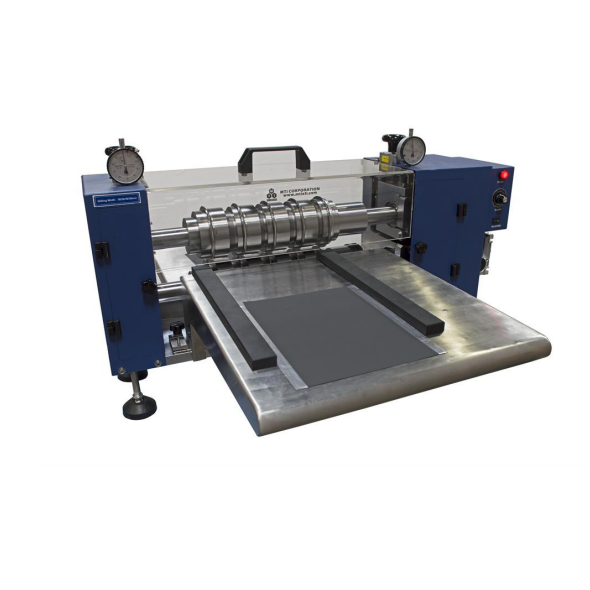

MSK-300 is a CE Certified semi-automatic slitting machine (roll slitting) for preparing electrode of cylinder batteries in R&D laboratories.
|
Model |
Semi Automatic slitting Machine MSK-300 |
|
Working Voltage |
Machine Input: 22-24V DC with 5mm barrel
connector |
|
Max. Power Consumption |
100W |
|
Cutting Method |
Two round blades rolling to cut
Blade Materials: Tungsten alloys |
|
Cutting Width |
1.4 sets of
slitting blades (two blades with slitting width of 58mm, and another two with
slitting width of 56 mm) It can be customized |
|
Cutting Thickness |
100 - 300 microns |
|
Cutting Speed |
0 - 4 meter / minute Adjustable |
|
Product Dimensions |
84.3cm(L) x 101cm(W) x 48cm(H) |
|
Warranty |
One year limited warranty with lifetime support |
|
Net Weight |
110kg (250 lbs) |
