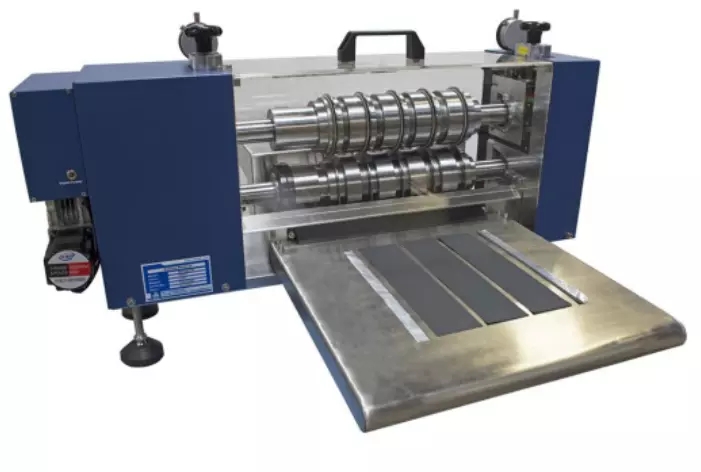

Semi-Automatic Cylinder Cell Electrode Slitting Machine
Model Number:
TMAX-MSK-300Type:
Electrode Slitting MachineDimension(L*W*H):
Blade Diameter: 100mm It can be customizedNet Weight:
120kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Semi-Automatic Cylinder Cell Electrode Slitting Machine
SPECIFICATION
TMAX-MSK-300 is a CE Certified semi-automatic slitting machine (roll slitting) for preparing electrode of cylinder batteries in R&D laboratories.
|
Model |
Semi Automatic slitting Machine TMAX-MSK-300 |
|
Working Voltage |
Machine Input: 22-24V DC with 5mm barrel
connector |
|
Max. Power Consumption |
120W |
|
Cutting Method |
Two round blades rolling to cut
Blade Materials: Tungsten alloys |
|
Cutting Width |
1.4 sets of slitting blades (two blades with slitting width of 58mm,
and another two with
slitting width of 56 mm) It can be customized please contact us for details. It can be customized |
|
Cutting Thickness |
100 - 320 microns |
|
Cutting Speed |
0 - 4.5 meter / minute Adjustable |
|
Product Dimensions |
85cm(L) x 100cm(W) x 50cm(H) |
|
Warranty |
Two years limited warranty with lifetime support |
|
Net Weight |
120kg |
