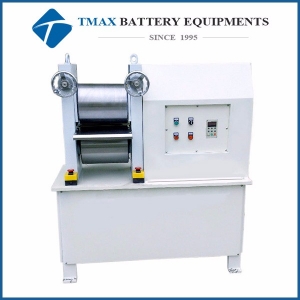

200-300mm Hydraulic Electrode Heat Rolling Press Machine

200-300mm Hydraulic Electrode Heat Rolling Press Machine

I,Overview:

This type of roller press dedicated to small-scale lithium electrode film roll process, using single 110-240V power supply, suitable for the use of universities and companies test line.

II,Working Principle:

The equipment consists of high hardness pressure reducer motor-driven roller, mechanical adjustment roller gap, pole piece will be made Compression  molding, increased the density of the pole piece of quality. Using the industry's leading heating system and PID temperature control system, rapid heating, uniform temperature control accuracy, when the temperature reached, it can thermostat automatically.

III,Technical Parameters:

1.Rated voltage/power:110-240v/2.5kw.

2.Pressure roller size: Φ200mm×W300mm.  It can be customized

3.The roll surface hardness: HRC62.

4.Cylindrical roller degree: ≤±0.005mm.

5.Effective gap: 0-1.5 mm (adjustable).

6.Working speed: stepless speed, line speed 0-1.5 m/min (adjustable).

7.The working width: 0-- 300mm. It can be customized

8.The roll surface quenching depth: 5mm.

9.Temperature: room temperature to 200 ℃

10.Net weight: approx 280kg.

11.Overall size: approx 100 (L)×500(W)×1050(H)mm.
