Pouch Cell Electrode Winding Machine For Research
Model Number:
TMAX-PouchwindType:
Electrode Winding MachineDimension(L*W*H):
Less than Φ35*L90mm It can be customizedNet Weight:
50kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Email:David@battery-equipments.com
Wechat:13506084915
Wechat:13506084915
DESCRIPTION
Pouch Cell Electrode Winding Machine For Research

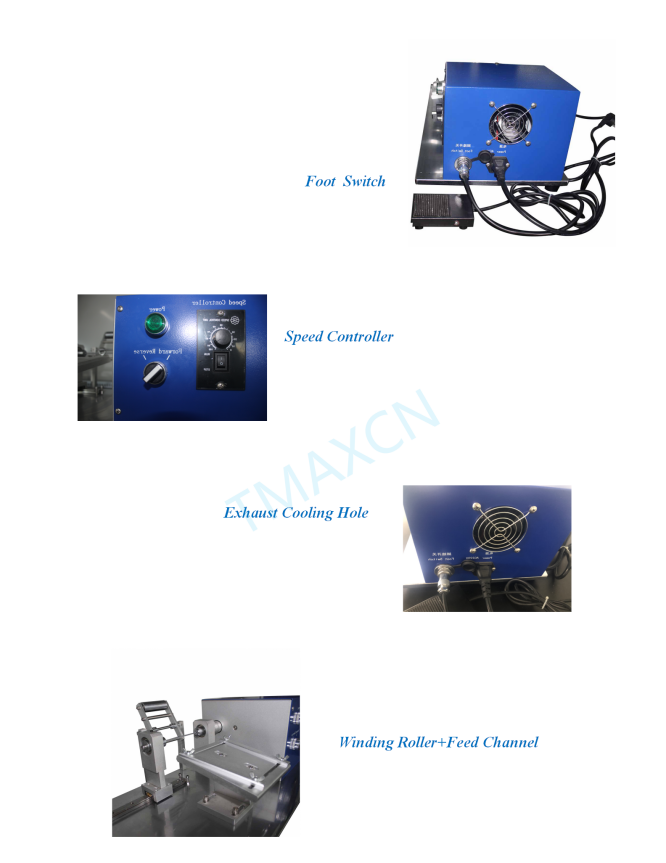

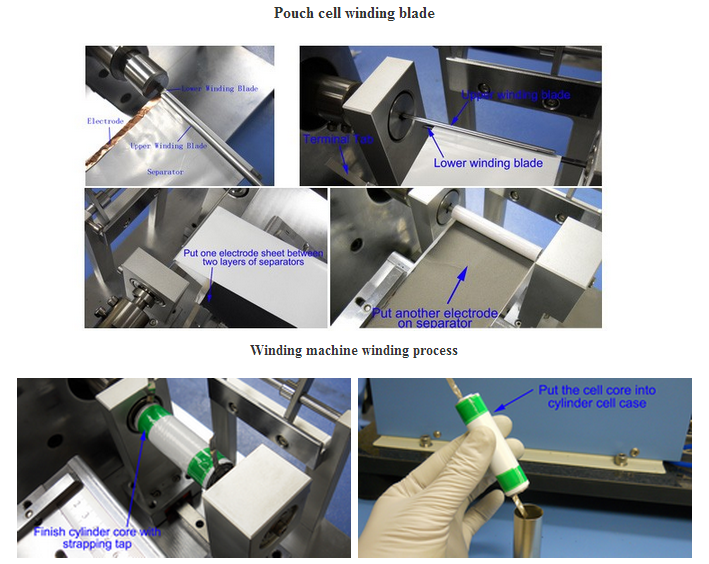

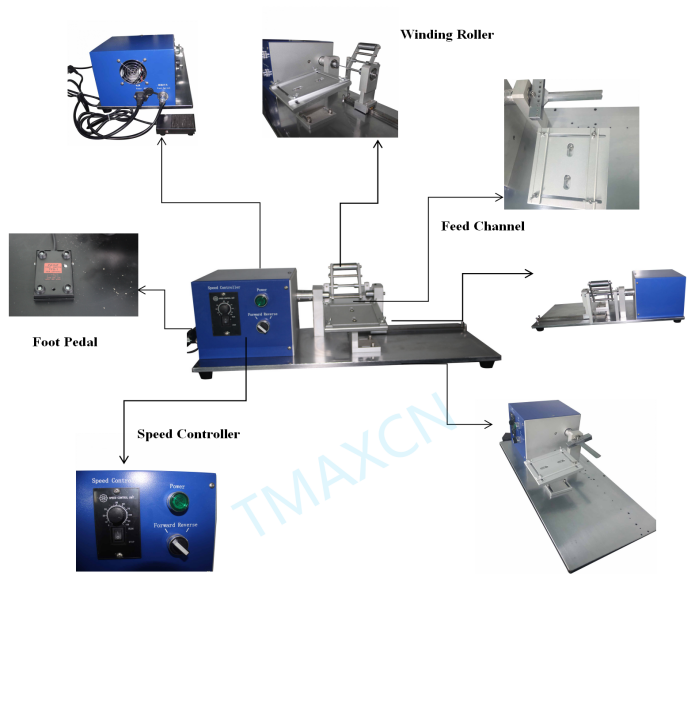

TMAX-Pouchwind is a CE Certified semi-automatic winder for winding electrode and separator together in the research of Li-ion pouch batteries.
|
Item |
Date |
|
Voltage Input |
220V/50Hz |
|
Power |
50W |
|
Air Consumption |
0.04m3/min |
|
Pressure |
0.1-0.4Mpa |
|
Rotation Speed of Main axle |
0-120rpm |
