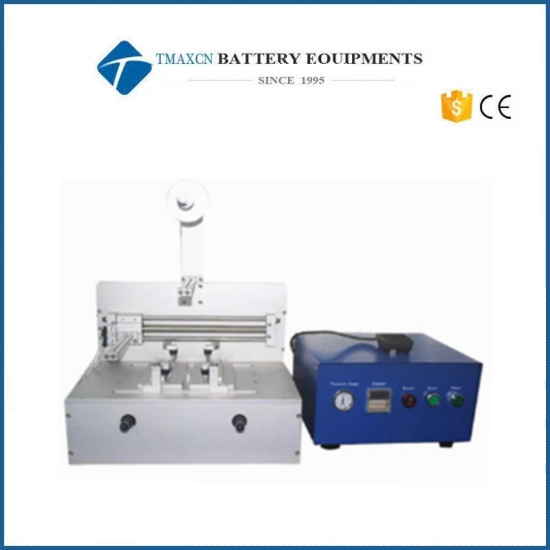

Lab Manual Pouch Cell Electrode Stacking Machine For Battery Stacking Research
Model Number:
TMAX-DP-200Type:
Electrode Stacking MachineDimension(L*W*H):
L(0-200)mm, W(0-200)mm It Can Be CustomizedNet Weight:
50kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Lab Manual Pouch Cell Electrode Stacking Machine For Battery Stacking Research
SPECIFICATION
1 TMAX-DP-200 Battery stacking machine is a semi-automatic stacking machine. It is an ideal tool for stacking multiple layers of positive & negative electrode and separator for pouch cell.
2 The battery stacking machine is used for lithium battery stacking process, put the cathode, anode electrode and battery separator Z shaped lamination.
|
Stacking mode |
Z fashion |
|
Suitable separator coil |
Roll type separator, 3-inch roll core, max.φ200mm applicable |
|
Applicable electrode size |
Length:20～200mm Width: 20～200mm Thickness: within 18mm Larger model for apply larger electrode is also available |
|
Swing rod travel distance |
300mm； |
|
Power supply |
AC220/110V; 50/60Hz |
|
Power |
200W |
|
Air pressure source |
0.4MPa～0.7MPa |
|
Machine dimensions |
L650mmW400mmH700mm |
|
Control box size |
L200mmW300mmH380mm |
|
Weight |
30Kg |
