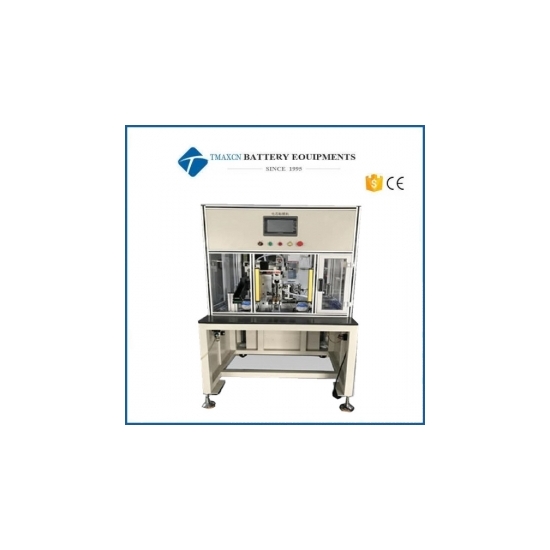

Pouch Cell Automatic Vertical Battery MYLAR Sticking Sticker Machine
Model Number:
TMAX-TMJ150Compliance:
CE compliantWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Pouch Cell Automatic Vertical Battery MYLAR Sticking Sticker Machine
Application
It is suitable for automatic battery protection MYLAR after the top and side sealing of lithium pouch cell to avoid scratching the cell surface during the flow drawing process. Principle
Manually place the battery cell upright in the feeding guide groove, push the battery cell to the front positioning block, and send the positioned battery cell to the filming rubber roller to complete the filming and then send it by the conveyor belt (discharge) Recycling place (this equipment realizes single person and single machine)
Basic parameters
|
Power supply |
AC220V/50Hz, power: 1.5KW (prepared by customer) |
|
Compressed air |
≥0.6 MPa 10L/min(prepared by customer) |
|
Weight |
About 500kg |
|
Dimensions |
(L*W*H) 1400*1200*1700 mm |
|
Color |
International Warm Grey 1C |
Technical parameters
|
Applicable specifications |
W: 30-100mm(without airbag); H: 50-150mm, T: 3-12mm |
|
Can be adjusted according to different types of batteries, battery width adjustment range |
30-100mm(without airbag) |
|
Input parameter |
The maximum outer diameter of the protective film is 300mm, and the installation inner diameter is 78mm |
|
Stick MYLAR roller effective length |
150mm |
|
Accuracy |
After the battery cell is pasted with the protective film, the accuracy of the length direction of the battery cell is ±0.5mm, and the accuracy of the width direction is ±0.5mm |
|
Output |
900-1200pcs/h |
