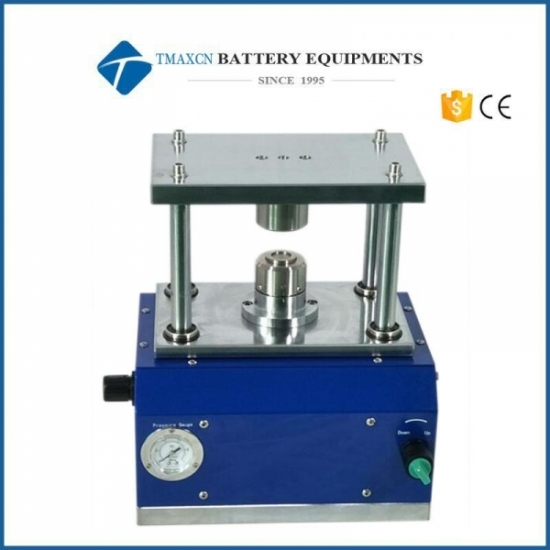

Manual Pneumatic Coin Cell Disassembling Machine
Model Number:
TMAX-Pneumatic1Net Weight:
25kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Manual Pneumatic Coin Cell Disassembling Machine
1. TMAX-Pneumatic1 is a newly designed coin-cell disassembling machine with lighter weight. It’s mainly used for coin cell battery material lab researching,
Capacitor disassembling research,also be used in small batch trial production in factories.
equipped with different die,also used for disassemble battery,press electrode sheet,press battery powder,etc.
2. In addition, customers can easily replace the original die for disassembling purpose.
3. It can also be worked in glove box with smaller volume.
Specifications
|
Machine Model |
Pneumatic Coin Cell Disassembling Machine TMAX-Pneumatic1 |
|
Gas source |
0.6 0. 8mpa argon, nitrogen cylinders, or compressed air(Not suggest to use compressed air in glove box) |
|
Exhaust design |
Specially designed exhaust port, can external via connected by kf40 and other devices |
|
Gas consumption |
The gas consumption of single disassemble is about 480 ml |
|
Disassembling pressure |
Manual control valve, maximum pressure 1mpa.recommended pressure 0.7mpa.accuracy ±0.5% |
|
Disassembing stroke |
30mm |
|
Crimping die |
Standard crimping die is CR20xx, with optional die sets |
|
Disassembling die |
Optional or added various specifications such as CR16, CR20, CR24,CR30, etc. |
|
Machine size |
L290mm*W205mm*H330mm |
|
N.W |
25Kg |
|
Structural material |
High strength chromium steel, the surface after environmental plating and spray treatment will never rust. |
|
Remark |
With the function of preventing short circuit of battery crimping |
