Manual Hydraulic Coin Cell Disassembling Machine
Model Number:
TMAX-SF120Net Weight:
25kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

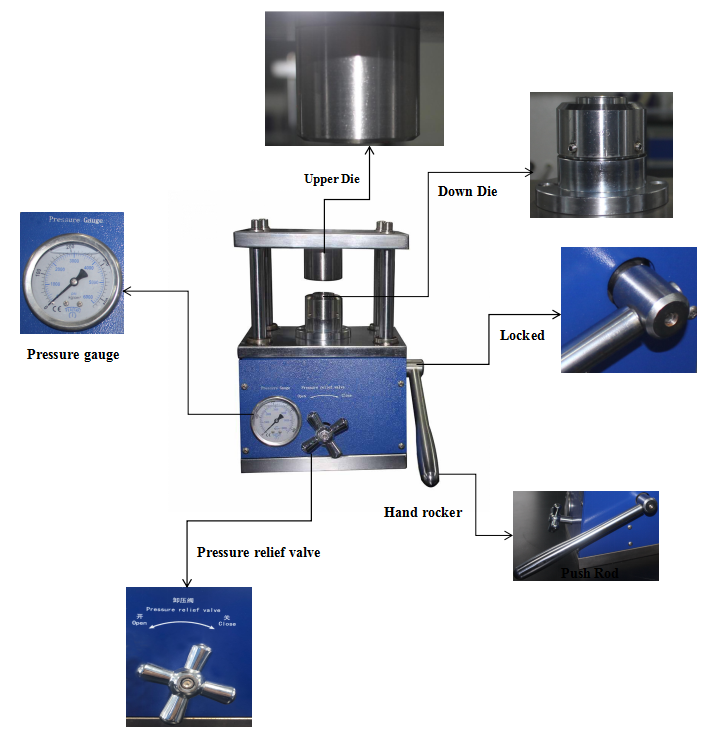

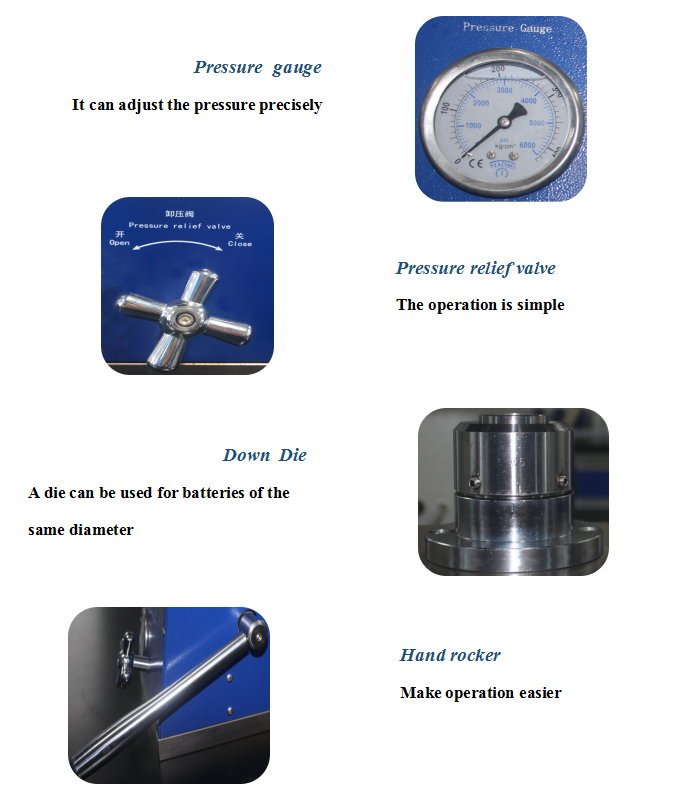

Manual Hydraulic Coin Cell Disassembling Machine
TMAX-SF120 is a new design and CE Certified coin cell disassembler with lighter weight and a smaller footprint. The disassembler is suitable for disassembling various types of coin cells such as CR2032,CR2025,and CR2016 with included die. It can also disassemble CR2325, CR2450, AG3, AG5 and other special size cases with optional die sets.
Specifications
|
Features |
Heavy duty steel frame PTFE Anti-Corrosion Core prevents coin cells from being short-circuited |
|
Disassembling Die |

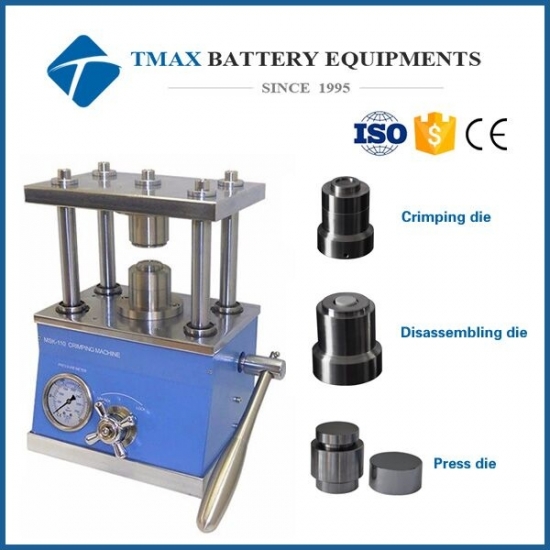

Optional die available from product option for disassembling CR20XX, CR12XX, CR23XX, CR24XX, AG3, AG5 |
|
Pressure |
Max. 8 metric Tons hydraulic pump with automatic pressure relief Max.200 Kg/cm2 on CR20XX series coin cell |
|
Warranty |
2 years limited manufacturer warranty with lifetime support. |
|
Product Dimensions |
223mm X 170mm X 325mm |
|
Compliance |
CE Certified |
|
Net Weight |
25 kg |
|
Application Notes
|
Attention: The built-in small hydraulic pump is not designed for holding high pressure. The pressure inside will be released gradually after reaching 50~80 Kg/cm^2, (which is sufficient for disassembling the coin cell). |
