Lithium Battery Electrode Slitting Slitter Machine For 18650 Cell Production

Model Number:
TMAX-HC-650A
Type:
Electrode Slitting Machine
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

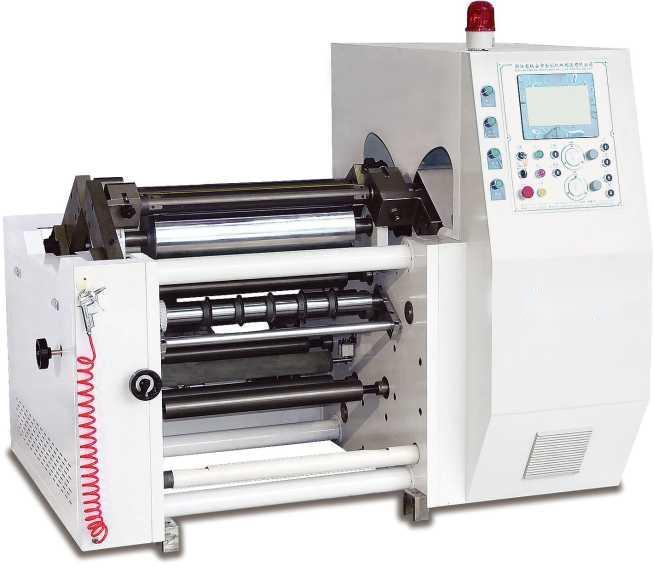

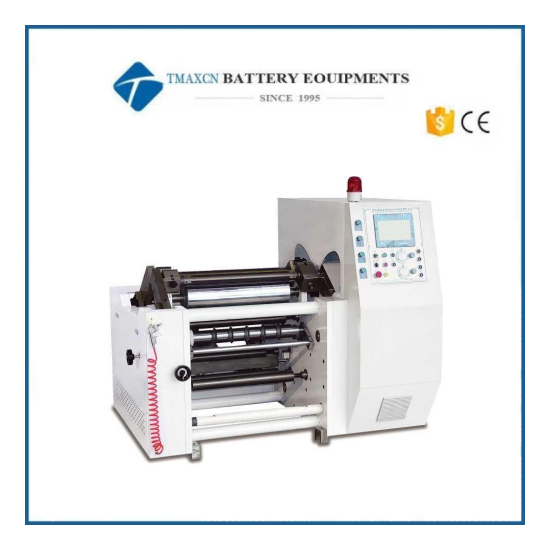

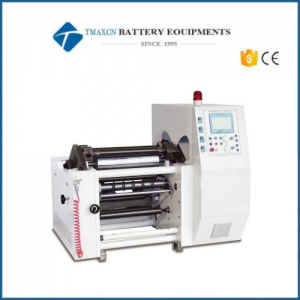

Lithium Battery Electrode Slitting Slitter Machine For 18650 Cell Production

The machine adopts computer control, ultrasonic tracking and correction system, and servo motor

control. Winding tension control is realized by inverter vector motor through PLC touch screen to

realize automatic tension control. Unwinding tension is controlled by magnetic powder (with Japan

SMC pneumatic proportional valve) and automatic tension control. The rewinding shaft adopts the air

expansion shaft. Inverter control The working speed of the whole machine is equipped with automatic

meter counting device, automatic warp calculation and display, and automatic warp stop when

unwinding is set. It has the advantages of smooth incision, neat winding end face, and easy subsequent processing.

1. The whole equipment consists of:

1. 1. Unwinding mechanism, manual feeding

1. 2. 1 set of main machine (including frame, guide roller, transmission device, slitting device, winding

device, etc.)

1.3. 1 set of edge blowing device

1.4. A and B rewinding device 1 set each

1.5. Pneumatic system 2 sets

1.6. 1 set of electronic control system

1.7. 1 set of toolbox (including a toolbox, a set of Allen wrench, 30*250 adjustable wrench, flat-blade

screwdriver, Phillips screwdriver, inner snap ring pliers, and one outer snap ring pliers)

1.8. Technical data

1.8.1. Equipment operating instructions 1 copy

1.8.2. Inverter Instruction Manual 1 copy

1.8.3. Corrector manual 1 copy

2. Performance Specifications

2.1. Machine speed: 0~300m/min (the specific cutting speed depends on the material material, thickness, product quality requirements and operator proficiency)

2.2. Incoming material width range: 100mm-650mm

2.3. Incoming material diameter: 600mm

2.4. The inner diameter of the unwinding tube core: 3" (76 mm) (the inner diameter of the tube core or

the sample of the tube will be provided by the manufacturer)

2.5. The inner diameter of the winding tube core: 3" (76 mm) (the inner diameter of the tube core or the sample of the tube will be provided by the ordering party)

2.6. Slitting finished product width: 10mm (depending on material material, thickness and winding

diameter)

2.7. Correction accuracy: ±0.1mm

2.8. Rewinding diameter: 600mm (depending on the type of material, thickness and slitting width, the

maximum load-bearing capacity is 100kg/shaft)

2.9. Host power: 4kw

2.10. Winding motor power: 4 kw

2.11. Total equipment power: 380V50HZ

2.12. Compressed air pressure required by the equipment: above 6kg/c, 380V (±5%) -4-wire 50HZ

electrical conditions

2.13. Slitting substrates: copper foil, aluminum foil, protective film, optical film, PET, BOPP, PE,

release film, etc.

3. Main performance and configuration

3.1. Operation mode: double shaft center surface coiling

3.2. Unwinding Department

3.2.1) Conjoined structure, manual feeding

3.2.2) A set of ultrasonic servo automatic deviation correction system

3.2.3) Unwinding and offset adjustment mechanism, which can be centered front, back, left and right

3.2.4) 3 "key bar inflatable unwinding reel 1

3.2.5) A set of foot switch for threading

3.3. Feeding Department

3.3.1) Guide roller (high frequency surface, hard inscription, dynamic balance treatment, hardness

alumina roller)

3.3.2) One mirror steel rod

3.4. Slitting section

3.4.1) 1 upper circular cutter shaft, 1 lower circular cutter shaft (10 sets of knives), and the circular

cutter specification adopts a combination of high-precision aluminum alloy spacers (Korea).

3.4.2) Movable circular tool holder

3.5. Power Department

3.5.1) The main power is driven by 4KW servo motor

3.5.2) Active roller (high frequency surface, hard inscription, dynamic balance treatment)

3.5.3) 1 set of traction lagging pressure roller: polyurethane material, wear-resistant, hardness 90°

Shore

3.5.4) 2 traction and compression cylinders 63*25, 1 set of pressure regulating system

3.6. Rewinding Department

Center surface take-up, dual-shaft synchronous drive

3.6.1) 2 sets of 4KW servo motors cooperate to control the winding

3.6.2) 4 sets of gas-liquid conversion cylinders cooperate with oil cylinders to control the pressure of

the reeling shaft

3.6.3) Rewinding shaft rotary loading and unloading device

3.6.4) 2 sets of control systems for the ascending, descending, supporting force and inching movement of the reel

3.6.5) 2 pcs of 3" air shaft for rewinding

3.7. Electric control panel

3.7.1) Touch-type microcomputer control operation

3.7.2) Pneumatic control and electronic control independent control

3.7.3) The unwinding tension adjustment button is installed at the unwinding place, which is more

convenient to operate.

3.7.4) The control panel button switch adopts Siemens brand, precision pressure regulating valve,

Taiwan brand cylinder, Schneider relay, Schneider circuit breaker, main bearing adopts NSK.

4. Introduction to the main functions of the machine

4.1. This machine adopts German Siemens PLC control system, touch screen, three sets of servo

motors, servo motors are used as the main traction, and it is a speed control mode

4.2. The left and right windings are controlled by a set of servo motors, and the winding tension is

automatically controlled. As the winding diameter increases, the taper increases. The motor speed

decreases proportionally with the winding diameter, so that the winding is broken. It will not fly and

stop automatically; automatic taper tension control, automatic tension compensation during

acceleration and deceleration and stop. Can be rolled up to different diameters at the same time

4.3. Automatic taper tension control of unwinding, automatic tension compensation during acceleration, deceleration and emergency stop, automatic calculation of inertia during emergency stop with large coil diameter, keeping the material tight and not loose, emergency stop when large coil diameter and high speed, the effect is better;

4.4. The rewinding and unwinding diameters are independently and automatically calculated, and

there is no need to input the thickness of the material, which avoids the operation of wrong thickness

setting. The calculation accuracy of the reel diameter is less than 1mm. When the unwinding diameter

is close to the diameter of the paper tube, the machine can decelerate and stop in advance, which is

convenient Unwinding, changing rolls, splicing;

4.5. Free adjustment of winding tension: This model adopts surface slip winding, and the pressure can be adjusted through a precision pressure regulating valve. Suitable for cutting a variety of materials.

4.6. Set the number of meters to automatically decelerate and stop

4.7. This system adopts high-reliability electrical components, simple circuit, easy maintenance, high

degree of automation, and easy operation.
