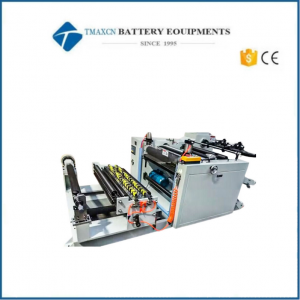

Battery Roll-to-Roll Slitting Slitter Machine For Lithium Battery Electrode Sheet Making
Model Number:
TMAX - 520AType:
Electrode Slitting MachineDimension(L*W*H):
20-500mmCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Battery Roll-to-Roll Slitting Slitter Machine For Lithium Battery Electrode Sheet Making
1. Applicable industries and products
This machine is used for slitting and processing of lithium battery pole pieces. Slitting and processing of copper foil, aluminum foil, OPP, PE, PP, PVC, release paper, release film, etc. Automatic unwinding of coiled material→deviation correction→slitting→receiving
2. Features
This machine is a high-precision, high-sensitivity slitting equipment. Both receiving and unloading adopt high-precision air-expanding shafts. The tension is freely adjusted by magnetic powder clutches . It can realize automatic detection, automatic deviation correction, automatic meter counting, anti-scratch materials, automatic stop at set length, and alarm. It has the advantages of fast speed, accurate cutting and simple operation.
Air knife: 5 sets
3. Equipment technical parameters
|
machine type |
HC-520A |
|
Cutting speed |
35 m/min |
|
Maximum paper width: |
52 0 mmm |
|
Minimum cutting width: |
30 mm |
|
Maximum unwinding diameter: |
600 mm |
|
Maximum winding diameter: |
450mm |
|
Unwinding drum diameter : |
76mm (can be customized according to customer requirements) |
|
Rewinding drum diameter : |
76mm (can be customized according to customer requirements) |
|
Slitting precision: |
±0.2 mm |
|
Glitch Accuracy : |
≤30μm _ |
|
Machine weight: |
about 1300 kg |
|
Power supply : |
380V / 3phase/50hz |
|
Motor Power: |
3 KW +4KW |
|
compressed air |
0.5-0.7 MPa\120L/Min (customer self-prepared) φ10 air pipe |
|
Machine size (length, width and height): |
About 1600*1400*1200 mm |
4. Equipment main configuration
|
serial number |
name |
brand |
Remark |
|
1 |
PLC |
Siemens |
|
|
2 |
touch screen |
Taiwan Weilun |
|
|
3 |
cylinder |
SMC |
|
|
4 |
Inverter |
Inovance |
2 units |
|
5 |
main motor |
Delta |
2 units |
|
6 |
Ultrasonic correction |
chongqing bat |
|
|
7 |
Static bar |
Kodick |
|
