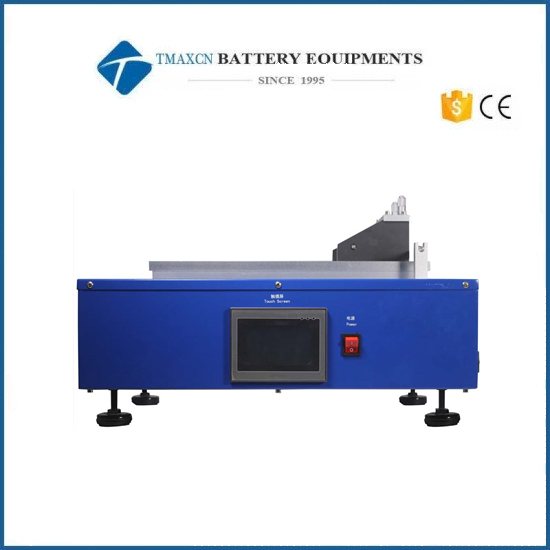

Lithium Battery Automatic Vacuum Lab Electrode Film Coating Machine

Model Number:
TMAX-AFA-III
Input Power:
500W
Dimension(L*W*H):
10 - 250 mm adjustable
Net Weight:
About 40kg
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

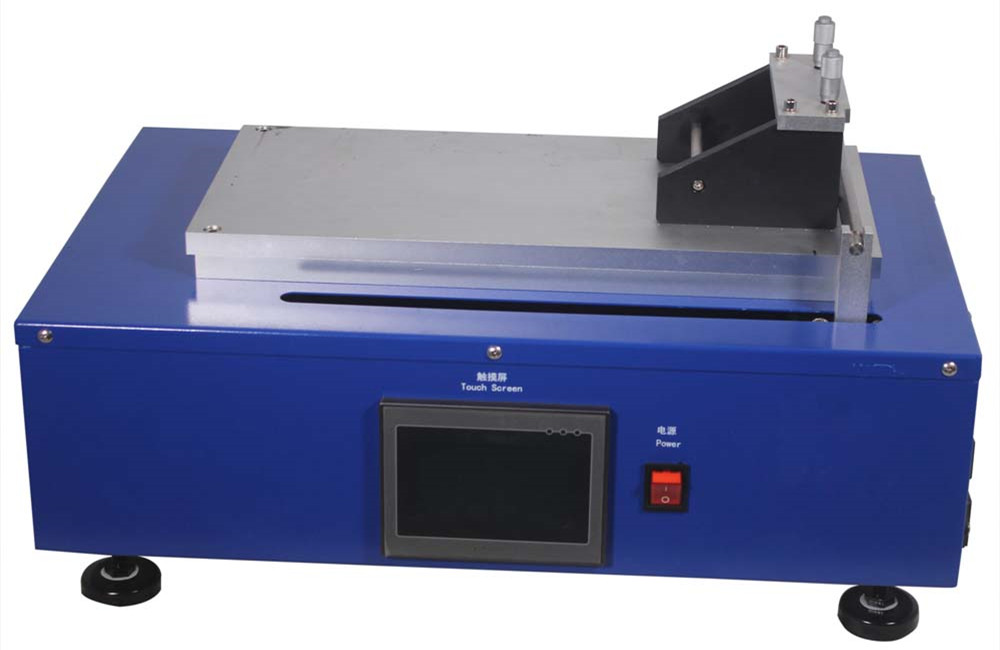

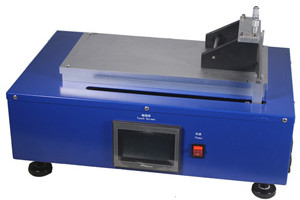

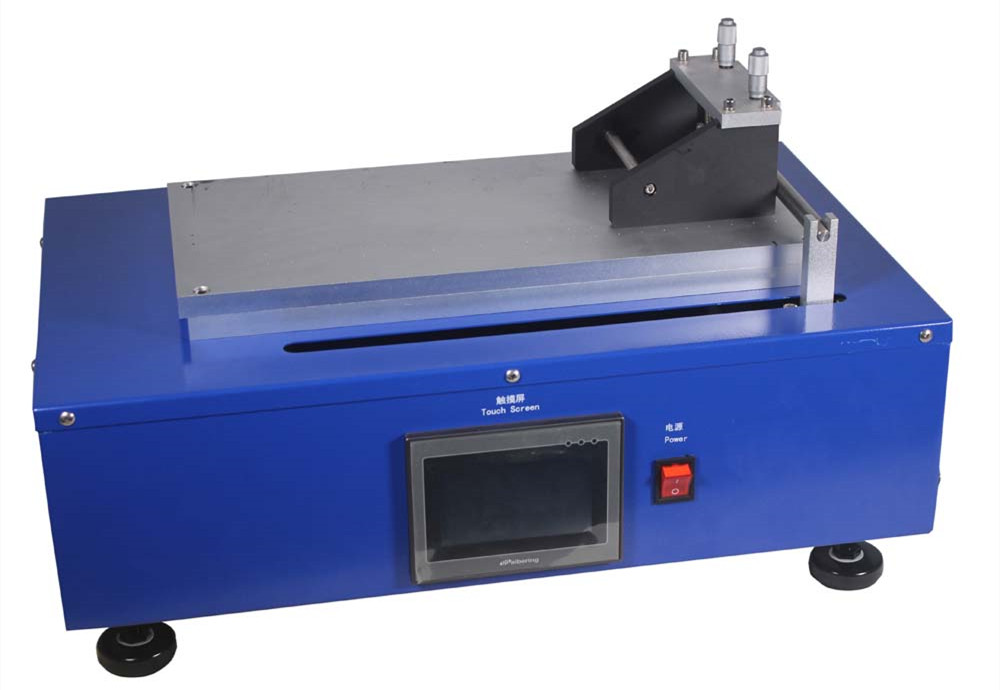

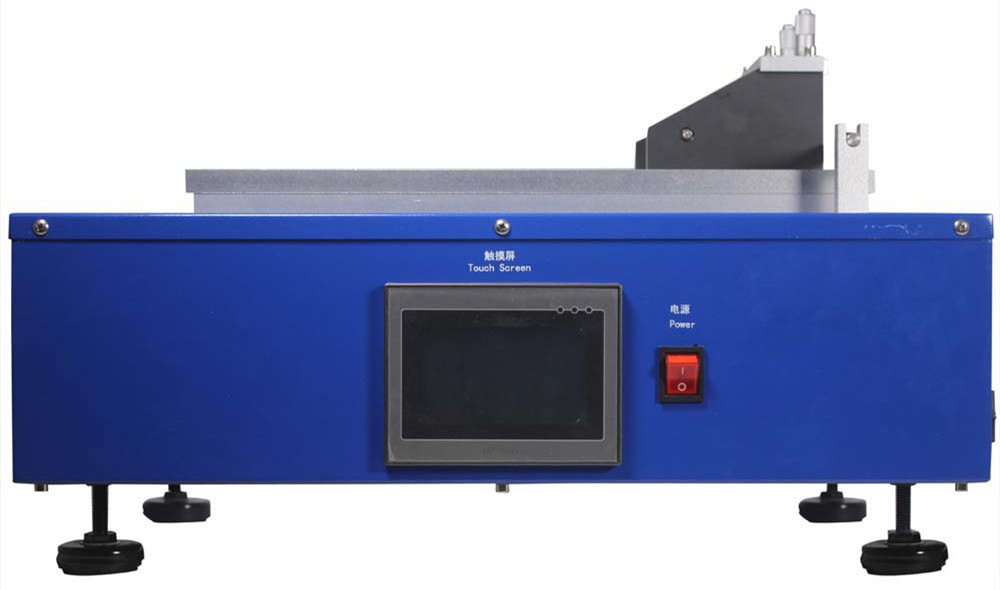

Lithium Battery Automatic Vacuum Lab Electrode Film Coating Machine

Electric doctor blade coater is widely used in various coating researches, such as ceramic film, crystal film, battery material film, special nano film. The working plate is a flat vacuum chuck, with a thickness adjustable analog film applicator. Please noted that this coater without heating function.

*The coating speed is adjustable within the range of 0～120mm/sec;

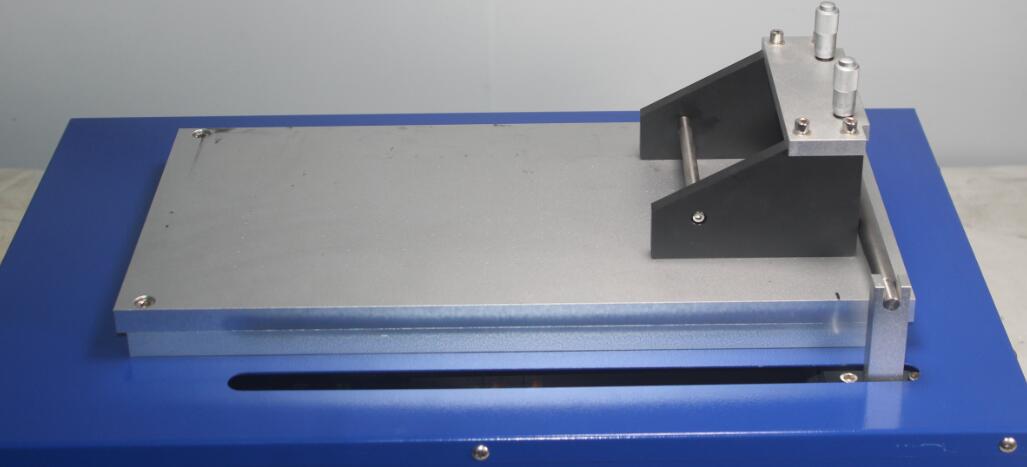

*Vacuum aluminum plate, which can quickly place or remove the substrate;

*The effective coating area can be customized;

*With a micron-level adjustable film applicator (scale 10um), a scraper with a width of 100mm;

*Small size, can save space;

*The appearance is exquisite, and the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;

Model	100-250	150-250	250-300	250-350	250-500	250-800
Effective coating area(mm, size can be customized)	100 x 250	150 x 250	250 x 300	250 x 350	250 x 500	250 x 800
Stroke length (mm, length adjustable)	10 - 250	10 - 250	10 - 300	10 - 350	10 - 550	10 - 800
Vacuum chuck dimensions (mm, W*L, , size can be customized)	100 x 365	150 x 365	250 x 400	250 x 450	250 x 650	250 x 900
Power supply	220V/50Hz
Coating speed	0 - 120 mm/sec variable; accuracy: 10mm/sec (The coating speed range can be customized)

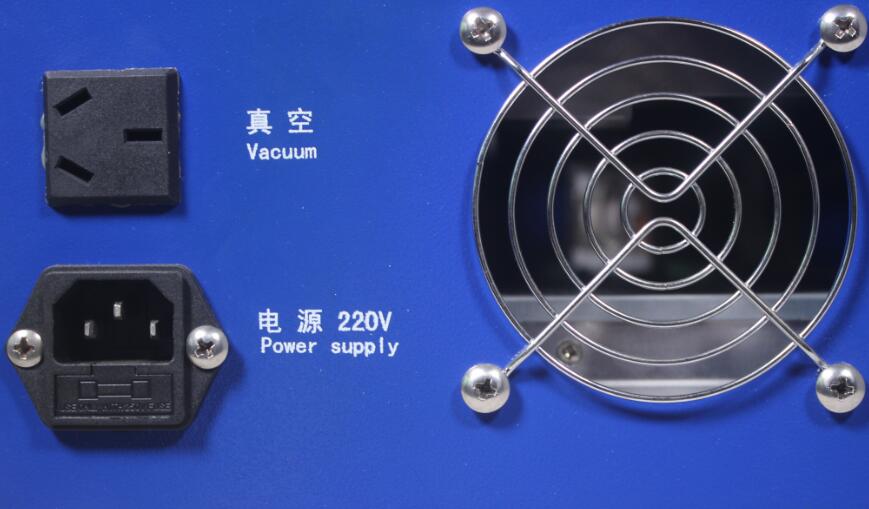

Vacuum pump (Optional)	One oil free vacuum pump
Film applicator	One standard film applicator is included as below: Analog film applicator with fix coating width 0~3mm gap/coating thickness adjustable *Coating accuracy: ±3μm
Film applicator	Optional parts: Digital micrometer Adjustable width Different gap/coating thickness
Surface finish	10
Surface roughness	Ra0.1
Vacuum board material	5052 Aluminum alloy
Compliance	CE Certificate
Warranty	One year limited warranty with lifetime support
