10 - 250 mm adjustable Lab Coating Machine for Lithium Battery Electrode with Dryer

Machine model

Automatic film coating machine with dryer

TMAX-VFC-150B

Source voltage

AC110V-240V, 50/60HZ

Power

650W

Coating speed

0-100mm/s, Step-less transmission   Accuracy: 10mm/sec

Advantages

Supply with dry function, vacuum pump

Stroke length

10 - 250 mm adjustable by using Adjustable Position Switch

Platform

Aluminum alloy flat vacuum chuck

Vacuum Chuck Dimensions: 365mm(L) * 200mm(W)*30mm(T)

Slicker width

0-150mm

 Slicker adjustable range

0.01-3.5mm

Heating dry system

RT-200°C, Digital temperature controller

Temperature control accuracy

±1°C

Dimension

550*310*330mm

Weight

About 40kg

Warranty

One Year limited warranty with lifetime support

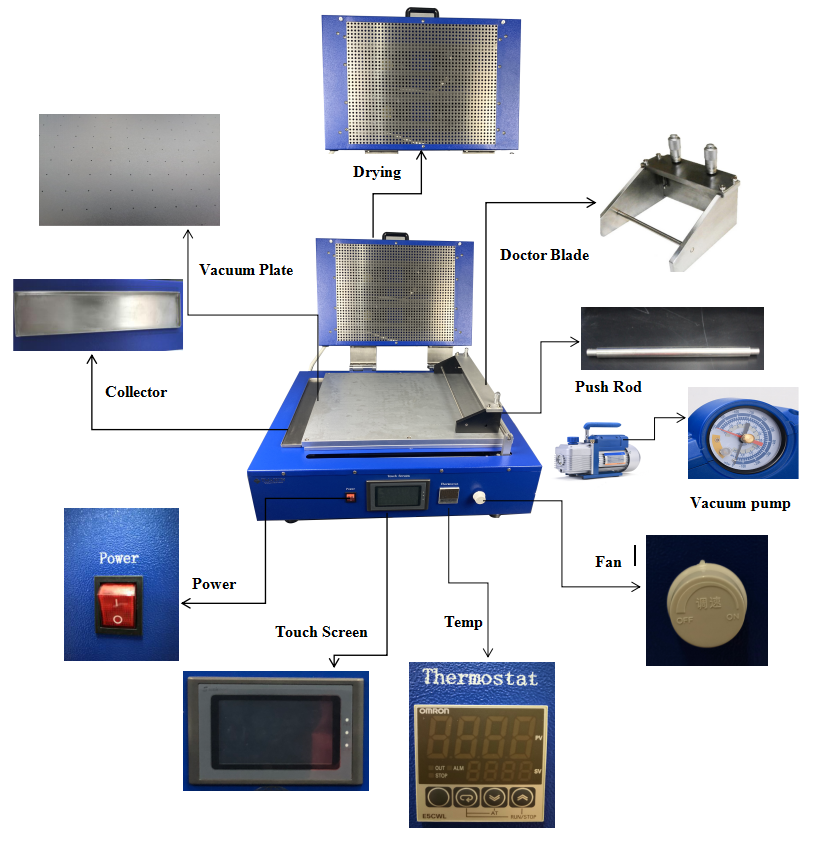

Reference Pictures

1 One oil-less vacuum pump is included for immediate use

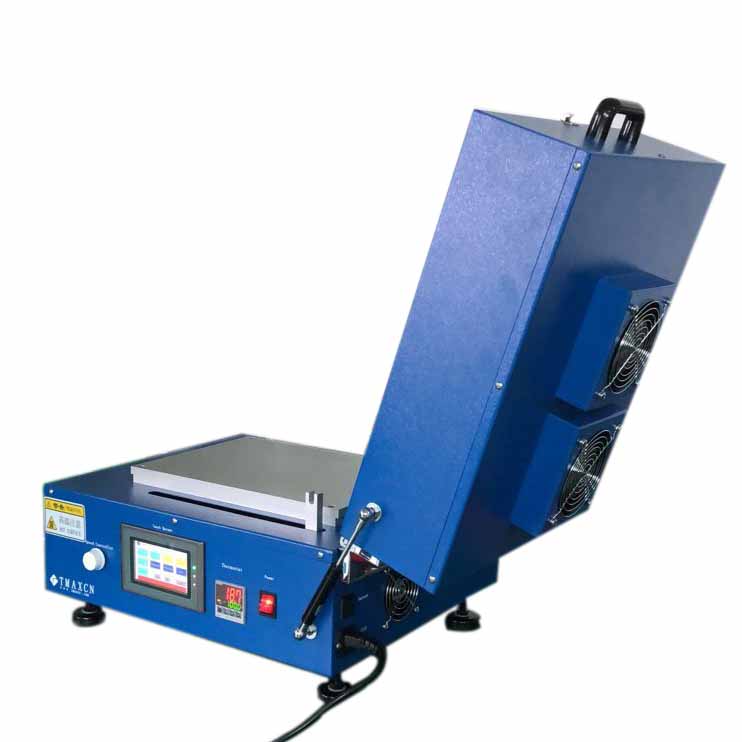

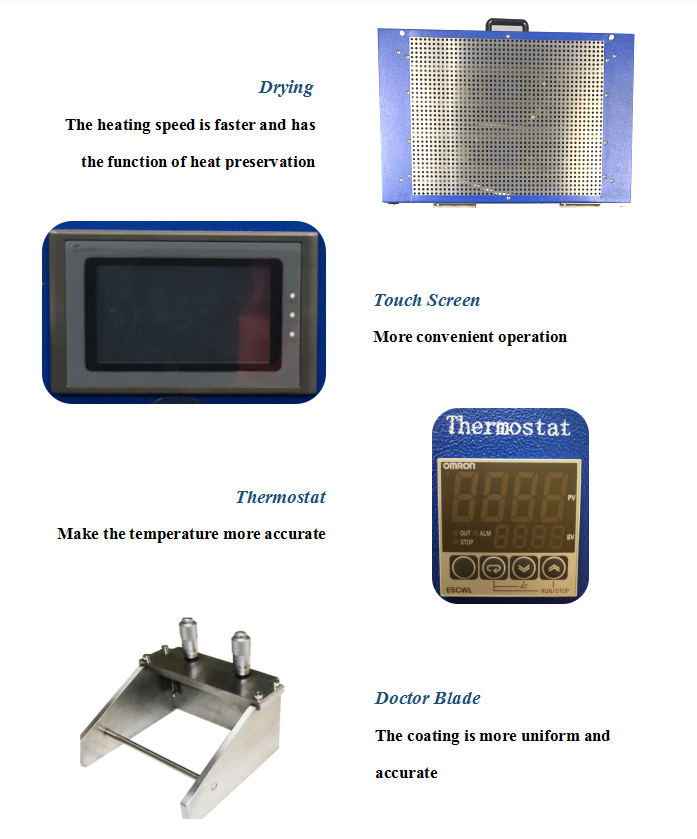

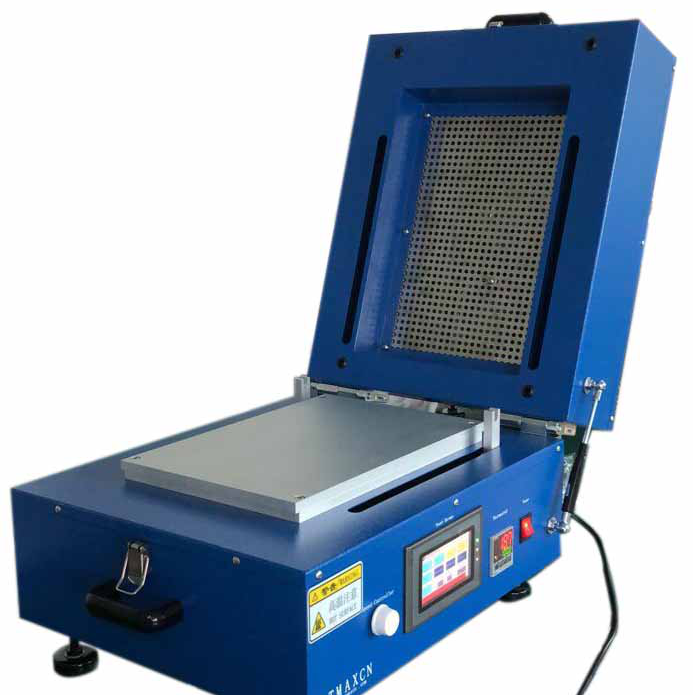

2 Heating system : Installed on the top cover

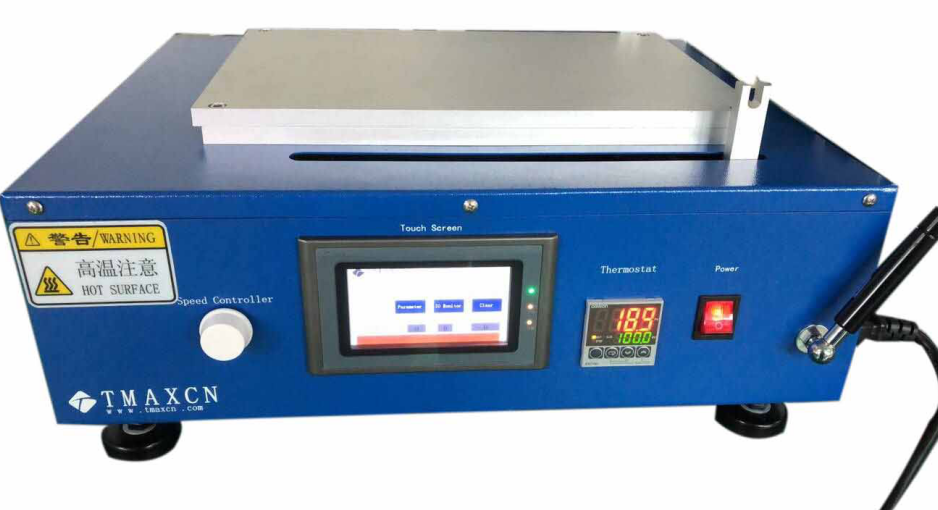

Built in digital temperature controller with accuracy of +/-1°C

Suspension support helps open cover easily and safely.

Max. Heating Rate:10°C/min

Max. Heating Temp.:200°C

3 One 150mm width micrometer adjustable film applicator is included

Traverse Pusher is included for pushing the Film Applicator to ensure the constant

coating speed
