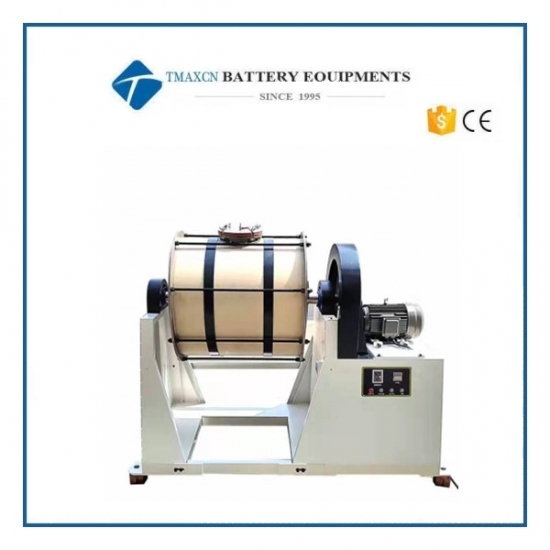

Light Horizontal Roll Jar Ball Mill Machine For Mass Production

Light Horizontal Roll Jar Ball Mill Machine For Mass Production

Features

The grinding medium and the material in the light roller milling tank are lifted to a certain height with the rotation of the cylinder, and fall off the wall of the cylinder due to gravity and fall along the parabola. The material will produce high-energy impact and shear under the impact, rolling and sliding of the grinding medium. Cutting and rolling achieve the technological purposes of crushing, grinding, dispersing, mixing, alloying, spheronization and so on. Multifunctional mixing and grinding machine

Light roller ball mill use

The light roller ball mill is a Chinese-style, ultra-fine grinding equipment for mass production, widely used in electronic materials, magnetic materials, biomedicine, ceramic glaze slurry, metal powder, non-metallic minerals, new materials and other industries.



Features of Light Drum Ball Mill

1. The equipment is stable in operation and low in power consumption, suitable for customers with low requirements for material fineness, and is used for Chinese-style and mass production;

2. It can be used for dry and wet grinding, mixing, alloying, spheronization and other processes, and can handle materials with various hardness;

3. The biggest advantage of the equipment is that it can carry out automatic discharging and automatic separation of balls, suitable for mass production, and can be equipped with automatic positioning feeding and discharging systems;

4. According to the different characteristics of customer materials, the ball mill can be lined with liners of different materials, such as: zirconia, alumina, polyurethane, nylon, tetrafluoroethylene, cemented carbide, etc., to ensure that the materials are not polluted and have high purity;

5. Can be customized according to the special needs of customers; ultra-fine mixing mill



Technical Parameters

Model

Volu mn(L)

Power  supply (V)

Rota tion speed (rpm)

Speed regua tion way

Max imum cha rge (L)

Motor power (KW)

Roller mate rial

Feed ing granu larity (mm)

Discha rge granu larity (mesh)

The height of the dis charge port above

Equip ment weight (kg)

Over all size (mm)

RBM -20

20

Single phase 220 /50HZ

20~60

Vari able speed/ fixed

7

0.75

Carbon  steel, Stain less steel, It can be lined with nylon tetra fluoro, Pu, Corun dum, Zirco nia, Can bide and so on

≤10 (soft mate rial)

≥200

About340

About 120

1250* 560* 950

RBM -30

30

Single phase 220 /50HZ

20~60

Vari able speed/ fixed

10

0.75

About340

About 120

1250* 560* 950

RBM -50

50

Single phase 220 /50HZ

20~50

Vari able speed/ fixed

17

1.5

≤20 (soft mate rial)

About360

About 200

1400* 620* 1100

RBM -100

100

Three phase 380 /50HZ

20~45

Vari able speed/ fixed

34

2.2

About400

About 320

1400* 780* 1240

RBM -200

200

Three phase 380 /50HZ

20~40

Vari able speed/ fixed

67

4

About400

About 450

1800* 1000* 1410

RBM -300

300

Three phase 380 /50HZ

20~38

Variable speed/ fixed

100

5.5

About450

About 650

1880* 1000* 1500

RBM -500

500

Three phase 380 /50HZ

20~36

Var iable speed/ fixed

167

7.5

About450

About900

2300* 1600* 1750

RBM -1000

1000

Three phase 380 /50HZ

20~34

Var iable speed/ fixed

334

11

≤30 (soft mate rial)

About650

About1500

2900* 1590* 1980

RBM -1500

1500

Three phase 380 /50HZ

20~34

Vari able speed/ fixed

500

15

About700

About2500

3500* 1700* 2000

667 RBM -2000

2000

Three phase 380 /50HZ

20~34

Vari able speed/ fixed

667

22

About800

About4000

4180* 1900* 2100
