Lab Small Ultra-fine Grinding And Mixing Roller Ball Mill Machine
Model Number:
TMAX-LBM-LSType:
Roll Ball MillCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

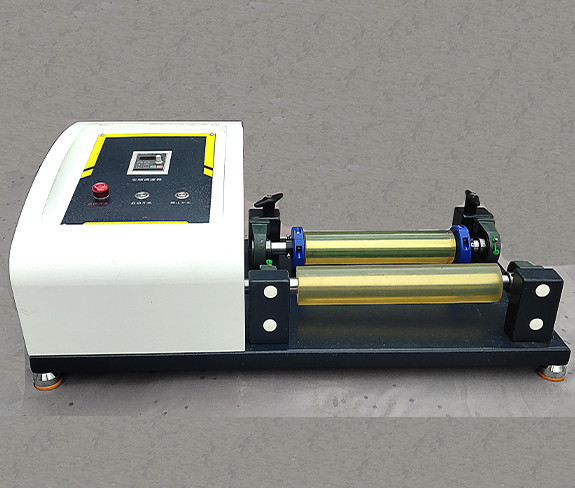

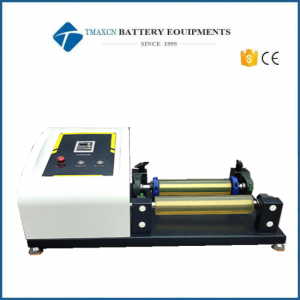

Lab Small Ultra-fine Grinding And Mixing Roller Ball Mill Machine
Introduction
The principle of the laboratory roller ball mill is the same as the tank mill. It is suitable for the process requirements of fine grinding, smashing, dispersing, mixing, and anti-precipitation of materials in a single tank of materials. The equipment is compact and convenient to place and transport the laboratory table. Optimal equipment for scientific research, teaching, experimentation and production.
Application
Laboratory roller ball mill is an ultra-fine grinding and mixing equipment for laboratory and small batch production. The machine is beautiful and novel, compact in structure, easy to operate, high in work efficiency, and uniform in grinding size. It is the optimal equipment for scientific research, teaching, experiment and production. It can be widely used in electronic materials, magnetic materials, biomedicine, ceramic glaze slurry, non-metallic minerals, metal minerals, new materials and other industries.
Features
1. The equipment is compact in structure, small in size and exquisite, convenient to carry, and simple in operation;
2. High work efficiency, uniform fine particle size;
3. Compatible with ball mill tanks of different sizes and materials;
4. Convenient and quick to take out and change the can;
5. It can be operated regularly, intermittently or continuously;
Specification
Name |
LBM-LS-5 |
LBM-LS-15 |
Dimension(mm) |
800*420*300 |
900*440*320 |
Weight(kg) |
32kg |
47kg |
Motor specifications |
Y0.37-4B3 |
Y0.75-4B3 |
Inverter specifications |
0.4KW/Single phase220V |
0.75KW/Single phase 220V |
Main roller speed (r/min) |
60-630 |
60-630 |
Maximum load of single tank (kg) |
35kg |
80kg |
Adjustable spacing between rollers (mm) |
150 |
170 |
Single station spacing (mm) |
260 |
340 |
