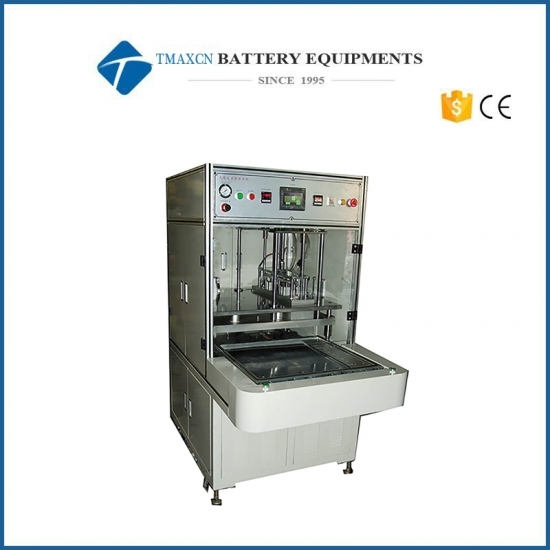

Large Vacuum Heat Sealer Sealing Machine For Polymer Battery
Model Number:
TMAX-VSECCompliance:
CE compliantWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

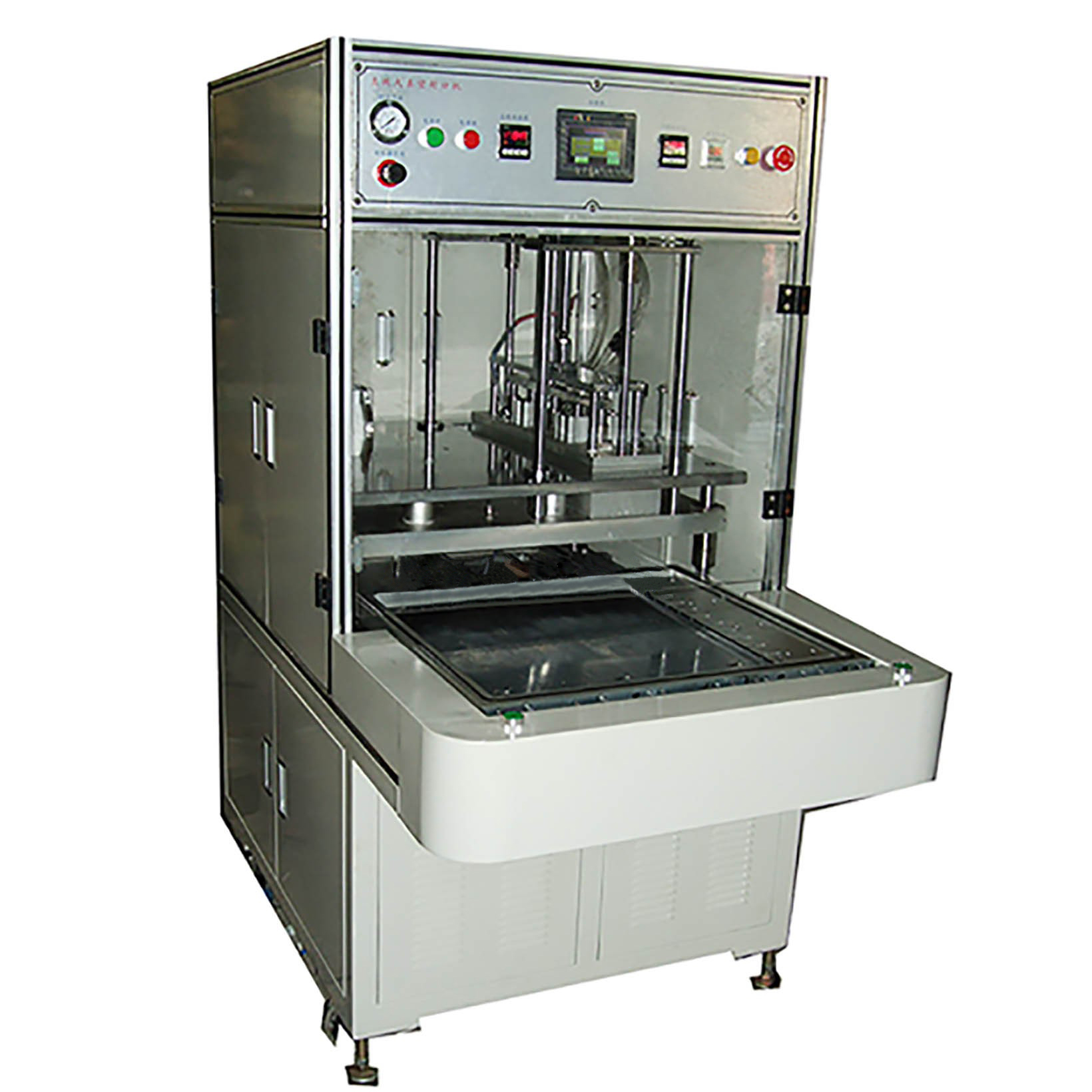

Large Vacuum Heat Sealer Sealing Machine For Polymer Battery

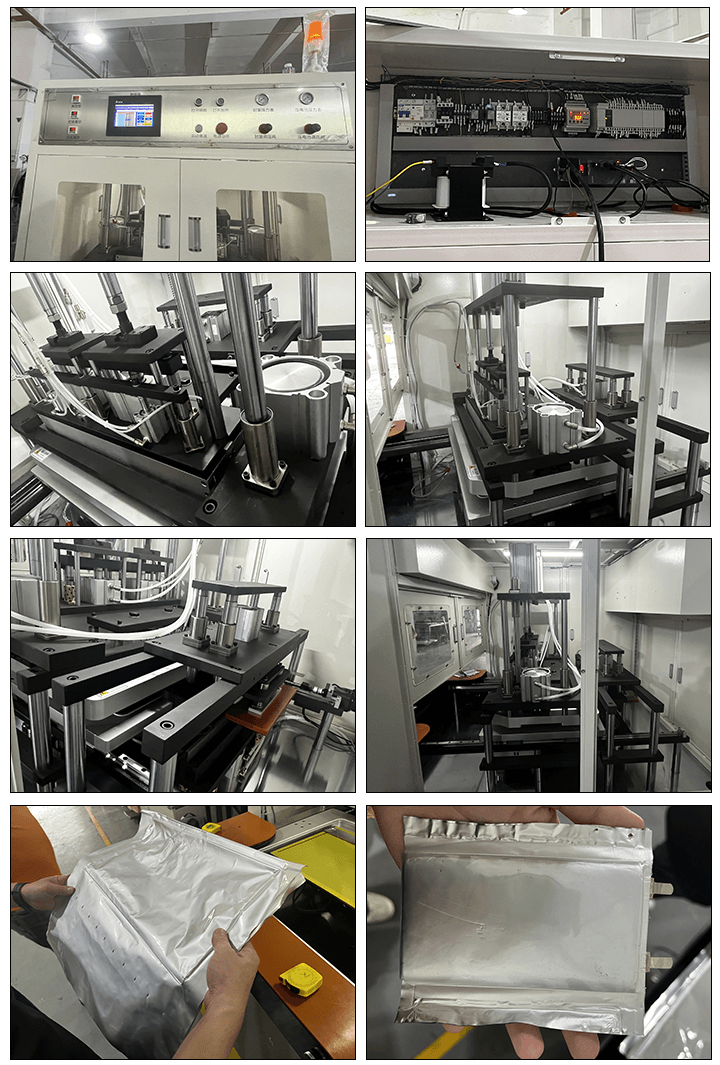

1.This machine is used for lithium polymer battery final vacuum sealing and edge cutting.
2.Three station rotary cam drive, with self-locking function.
3.The turntable, the corrosion resistant materials.
4.Can preset temperature, extraction time and sealing time.
5.Upper and lower head independent temperature control, with low and high temperature alarm function.
6.Head cylinder air pressure adjustable display.
7.With output statistics function, with manual, automatic running function, fault alarm function.
8.Adopt programmable controller PLC to realize automatic control, touch screen man-machine conversation, convenient operation and setting.
|
Model |
TMAX-VSEC |
|
Source voltage |
AC 380V, 50HZ |
|
Power |
3000W |
|
Air compression |
0.6-0.7MPa, 10L/S |
|
Vacuum degree |
≤-0.095MPa |
|
Size (L*W*H) |
1500*1200*1700mm |
|
Weight |
About 1.2T |
|
Inner chamber size |
L≤350mm, W≤300mm, Battery thickness: 3-12mm |
|
Sealing head length |
≤330mm |
|
Sealing stamp width |
7mm (customized) |
|
Sealing thickness |
0.1-0.35mm |
|
Sealing temperature |
RT-260℃ adjustable, Accuracy ±3° |
|
Sealing time |
0-10s, adjustable |
|
Vacuum sealing time |
0-99.99s,adjustable |
|
Depth of parallelism for sealing head |
±0.01mm |
|
Cutting knife |
≤300mm |
|
Depth of parallelism For Cutting knife |
0.05mm |
|
Knife life |
≥500 000 times |
|
Output |
180-300EA/H |
|
Machine Configure |
Standard part |
|
PLC |
Mitsubishi |
|
Man-machine interface |
Mitsubishi |
|
Tem controller |
Omron |
|
Relay |
Shanghai |
|
Vacuum gauge |
SMC |
|
Motor |
DDK |
|
Cylinder, Electromagnetic valve, Pneumatic element |
AIRTAC/SMC |
