Large Automatic Aluminum Laminated Film Forming Machine for Pouch Cell Battery
Model Number:
TMAX-pouchformingCompliance:
CE compliantWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

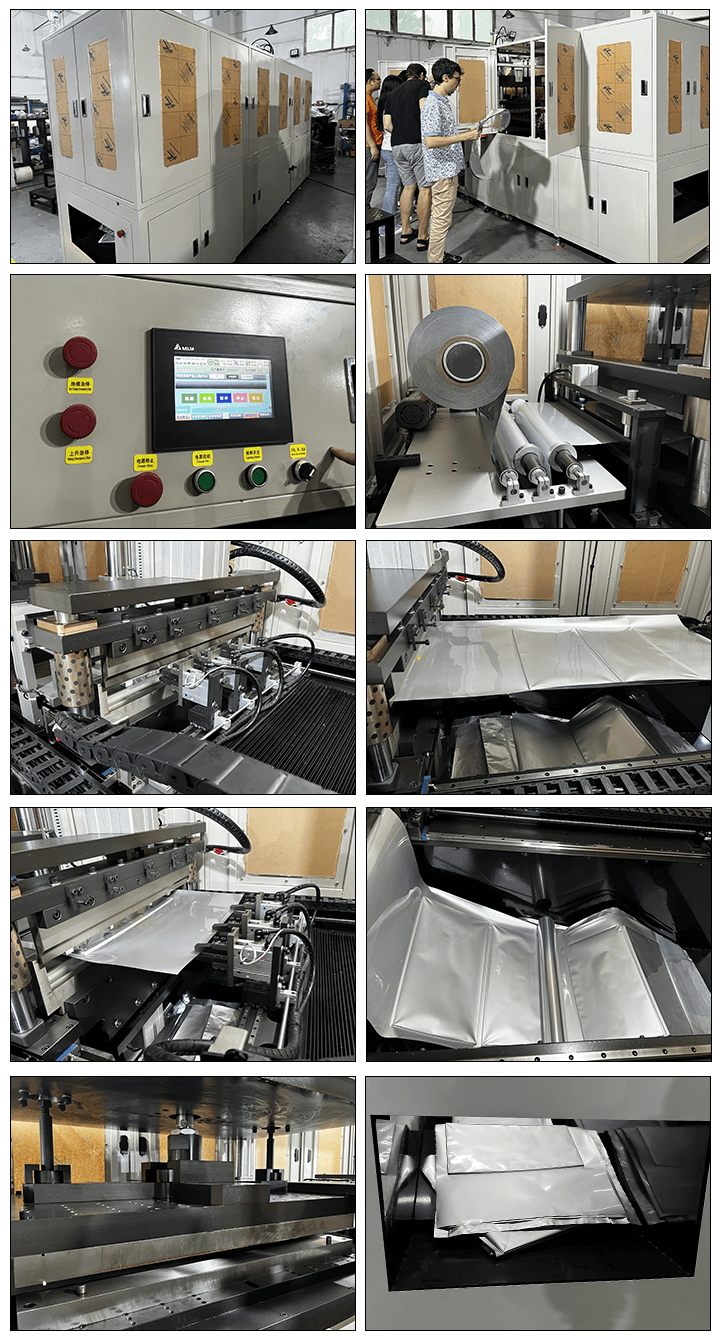

Large Automatic Aluminum Laminated Film Forming Machine for Pouch Cell Battery
|
Main technical parameters |
TMAX-AP001 |
TMAX-AP002 |
|
Size(L*W*H) |
700*2250*1860mm |
1000*3800*1900mm |
|
Weight |
870kg |
1200kg |
|
Applicable aluminum-plastic film area |
Max:380*200mm |
Max:600*350mm |
|
Thickness of aluminum film |
0.11-0.2mm |
0.11-0.2mm |
|
Depth of stamping pit |
Single pit<6mm |
Single pit<6mm |
|
Speed of stamping shell |
200-450pcs/H |
100-240pcs/H |
|
Cylinder pressure |
10T |
30T |
|
Stamping mode |
Air cylinder |
Servo |
|
Power source |
AC220V 0.5KW |
AC220V 3.8KW |
|
Gas supply |
0.6-0.7Mpa 40L/S |
0.6-0.7Mpa 40L/S |
