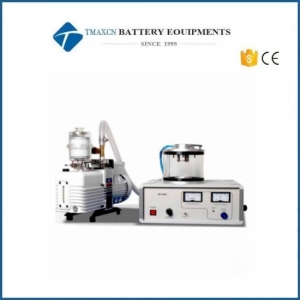

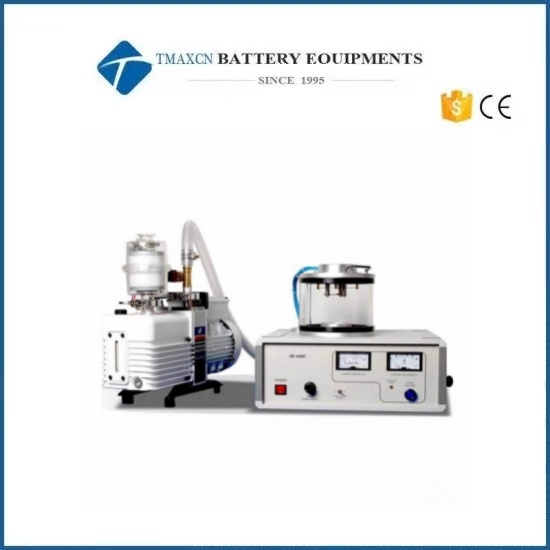

Laboratory Vacuum Thermal Evaporating Coating Machine Carbon Coater For Perovskite Solar Cells Production

Introduction

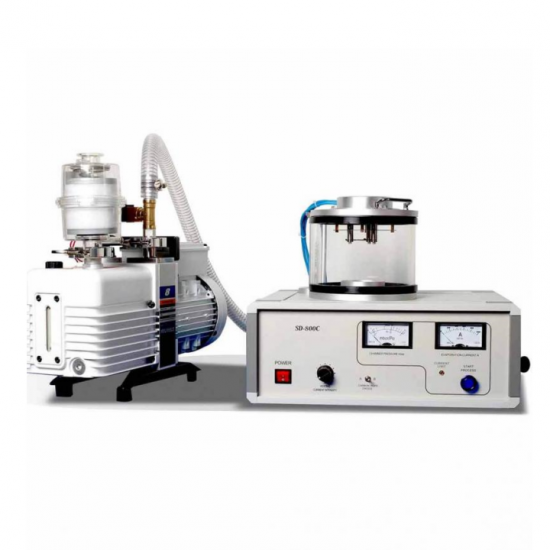

Thermal Evaporation Carbon Coater (SD800C Model) is ideal and designed for lab SEM sample preparation. SD800C Model carbon coater applies a thin conductive carbon film on a sample surface. Applying this coating to a non-conductive sample is an effective preparation technique for diminishing charge-up electron artifacts for analysis in a SEM.

Working vacuum pressure can be achieved quickly when using proper vacuum pump within 5 minutes. It is user friendly and easy to operate.

Vacuum pump is included.

Parameter

Vacuum pump set	(Oil required) rotary vacuum pump
Rotary pumping speed	50 Hz : 8 m³/h (2.2 L/s)/ 60 Hz : 9.6m³/h 2.6 L/s)
Vacuum limit	2Pa
Max evaporation current	100A
Working pressure	6Pa -4 Pa
Vacuuming time	< 5 Min( 2Pa)
Vacuum measure	Measuring range from atmosphere to 2*10-2mbar
Chamber size	Φ150*120mm (height) scratch resistant quartz glass
Evaporation target source	Target material :carbon rope/target source:carbon rope
Operation method	Instruction Manual
Weight/size	45kg/340mm length x 390mm wide x 300mm high
Power supply	AC 110V 60Hz or AC 220V 50Hz
Power consumption	<2000W
Warranty	One year limited warranty with lifetime product support
