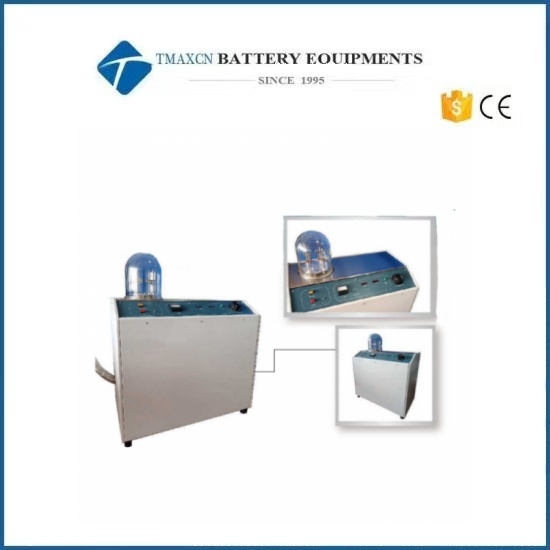

Laboratory High Vacuum Coater Thermal Evaporation Carbon Coating Machine for Photovoltaic Industry
Model Number:
TMAX-SD-100AFWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

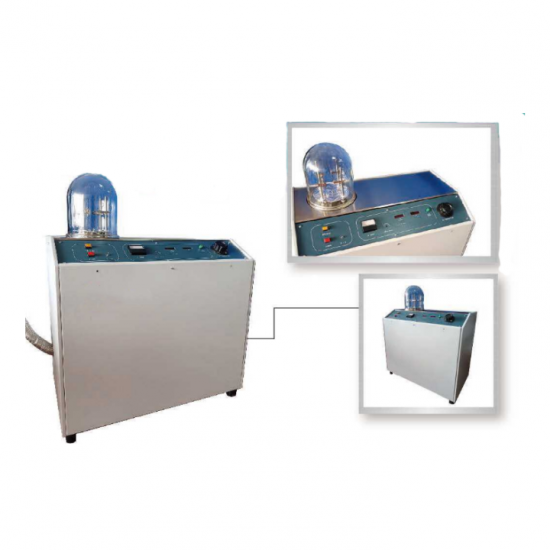

Laboratory High Vacuum Coater Thermal Evaporation Carbon Coating Machine for Photovoltaic Industry
Model: SD-100AF
Technical specifications
Vacuum Pump |
(Oil required) Rotary Vacuum Pump |
Rotary Pumping Speed |
50 Hz: 16 m3/h (4.4 L/s) / 60 Hz: 19.2m3/h (5.2 L/s) |
Turbo Molecular Pumping Speed |
600 L/S |
Vacuum Limit |
5x10-4Pa |
Max Evaporation Current |
100A |
Working Pressure |
5x10-3Pa |
Vacuuming Time |
5 Min ( 2 Pa ) |
Vacuum Measure |
Measuring range from atmosphere to 1x10-5 pa |
Chamber Size |
(p250*300mm(height) Scratch Resistant Quartz Glass |
Evaporation Target Source |
Target material: Carbon Rod ((p5mm) / Target source: Carbon Rod |
Operation Method |
Instruction Manual |
