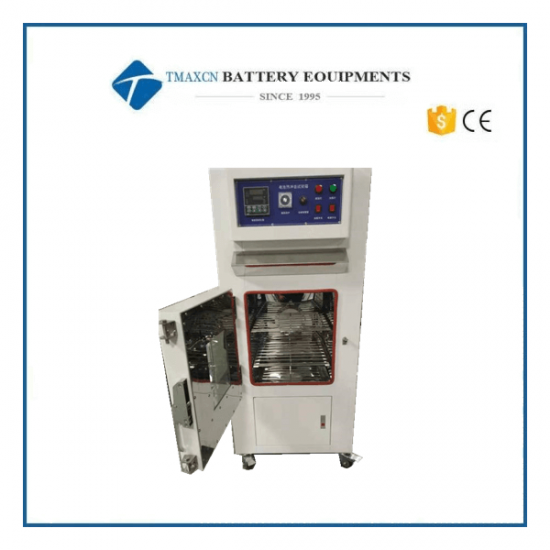

Laboratory High Temperature Battery Thermal Shock Tester Machine For Lithium Battery Safety Testing
Model Number:
TMAX-6009Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPlace of Origin:
ChinaPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Laboratory High Temperature Battery Thermal Shock Tester Machine For Lithium Battery Safety Testing
Introduction
The battery thermal shock test box is to simulate the battery placed in a high temperature box with natural convection or forced ventilation. It is heated to the set test temperature at a certain heating rate and maintained for a certain period of time. The hot air circulation system can ensure the uniform working temperature distribution.
Meet the standards
GB/T 31485-2015, GB/T 31241-2014, UN38.3,IEC62133, QC/T743-201X, GB/T 8897.4-2008, GB/T 21966-2008
Technical parameters
|
Inner box size |
W400xD400xH450mm |
|
Outer box size |
W650xD920xH30mm |
|
Temperature range |
Normal temperature~200℃ |
|
Temperature display accuracy |
0.1℃ |
|
Temperature stability |
±1.0℃ |
|
Temperature uniformity |
±2℃ |
|
Heating time |
(5±2)℃/min, (average heating, non-linear no-load) |
|
Temperature control meter |
Programmable temperature controller, which can control the total heating time, which is different from ordinary temperature control meters. |
|
Material of inner box |
Stainless steel plate |
|
Outer box material |
Cold-rolled steel plate baking varnish |
|
Insulation material |
High-efficiency compressed glass wool |
|
Heat preservation device |
Non-fuse switch, over-temperature protection switch, fuse |
|
Power supply |
1∮, 220V, 20A |
|
Safety device |
Secondary over-temperature alarm, MCCB overload protection, etc. |
|
Exhaust flue |
Blade design can adjust the air volume |
|
Control formation |
When the temperature of the battery thermal shock test box reaches the set temperature, the time meter will be turned on automatically, and the heating power will be cut off when the time is reached, and the buzzer will prompt |
|
Air circulation system |
Convective air circulation system |
|
Control system |
When temperature is reached, stop when time is reached, buzzer prompts. |
