Laboratory Battery Washing Tester Machine For Lithium Battery Safety Testing
Model Number:
TMAX-YK-4189Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPlace of Origin:
ChinaPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

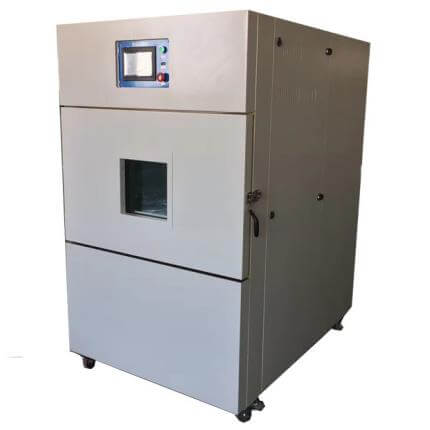

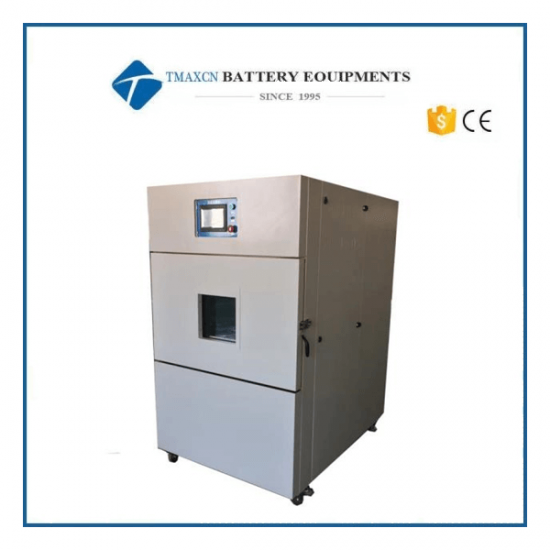

Laboratory Battery Washing Tester Machine For Lithium Battery Safety Testing
Introduction
Suitable for the following batteries or battery packs: lithium-ion battery packs for handheld electronic products, lithium-ion battery packs for portable electronic products that may be carried or used in a pocket, and battery packs for other portable electronic products that can be carried in a pocket , The washing test of handheld electronic products with non-user-replaceable batteries/battery packs.
Technical parameter
|
Test box temperature range |
Normal temperature ~ 80 ℃ (adjustable, can be set arbitrarily), the usual temperature is 45 ± 2 ℃ |
|
Temperature accuracy |
±0.5℃ |
|
Temperature uniformity |
±2℃ |
|
The diameter of the inner barrel of the washing box |
650 mm * 550 mm |
|
The depth of the barrel in the washing box |
550 mm |
|
The size of the inner box of the test box (including the washing box) |
700*700*1000mm (W*D*H) |
|
Stirring |
Fix the sample on the rotating device (washing paddle) and rotate it in the solution for 0.5h at a speed of 60r/min |
|
Rotating propeller material |
SUS#316 stainless steel |
|
Inner box material |
SUS#316 stainless steel |
|
Drive system |
Driven by servo motor and servo controller, with high operating accuracy |
|
Dehydration speed |
the solution can be removed automatically or manually, the rotating device (washing paddle) rotates for 10 minutes, and the speed is 800r/min (displayable) |
|
Test time |
0-9999H/M/S Can be set arbitrarily |
|
Temperature control method |
Intelligent P.I.D control |
